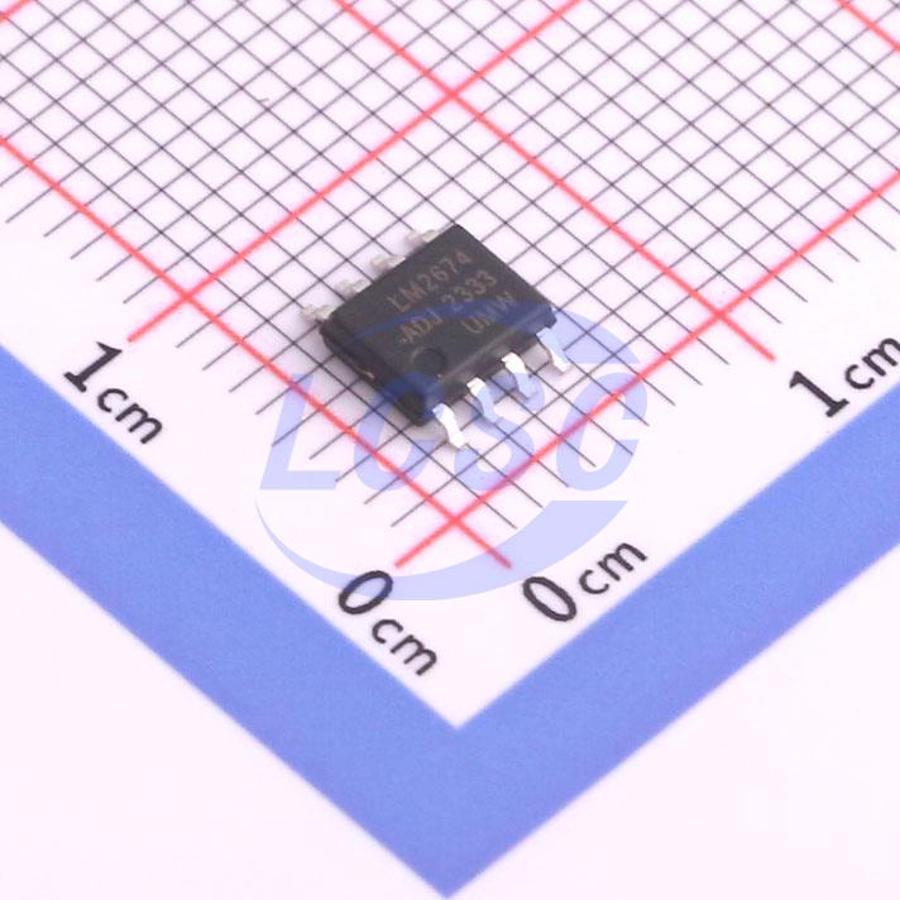

LM2674M-ADJ(UMW)

The LM2674M series is a DC/DC switching buck converter controlled by a 260kHz fixed-frequency PWM. It primarily consists of internal frequency compensation, a fixed-frequency oscillator, built-in overcurrent protection, and power switch control circuitry, capable of driving a 500mA load with high efficiency, low ripple, and excellent line and load regulation. Only a minimal number of external components are required to implement DC/DC step-down regulation, making it highly practical and easy to use. The PWM control circuit adjusts the duty cycle from 0% to 100% based on load conditions to achieve high operating efficiency. It features an external enable control for power-on functionality, enabling controlled switching between standby and active states for greater application flexibility.

Applications

• LCD and LCD TVs
• ADSL modems
• LED lighting, LED backlighting
• Digital photo frames
• Telecom/networking equipment

Key features

• Built-in thermal shutdown protection
• Built-in overcurrent protection
• Integrated high-efficiency power switch
• Excellent line and load regulation
• ON/OFF pin with hysteresis
• TTL-compatible shutdown
• High efficiency
• Simple peripheral circuitry
• Wide input voltage range: 7V~40V
• Fixed output voltages: 3.3V, 5V, 12V
• Adjustable output voltage range: 1.21V~37V (adjustable)
• High output accuracy: ±2%
• Fixed switching frequency: 260 kHz
• Maximum output current: 500mA
• Minimum dropout voltage: 1.5V
• Package: SOP-8
