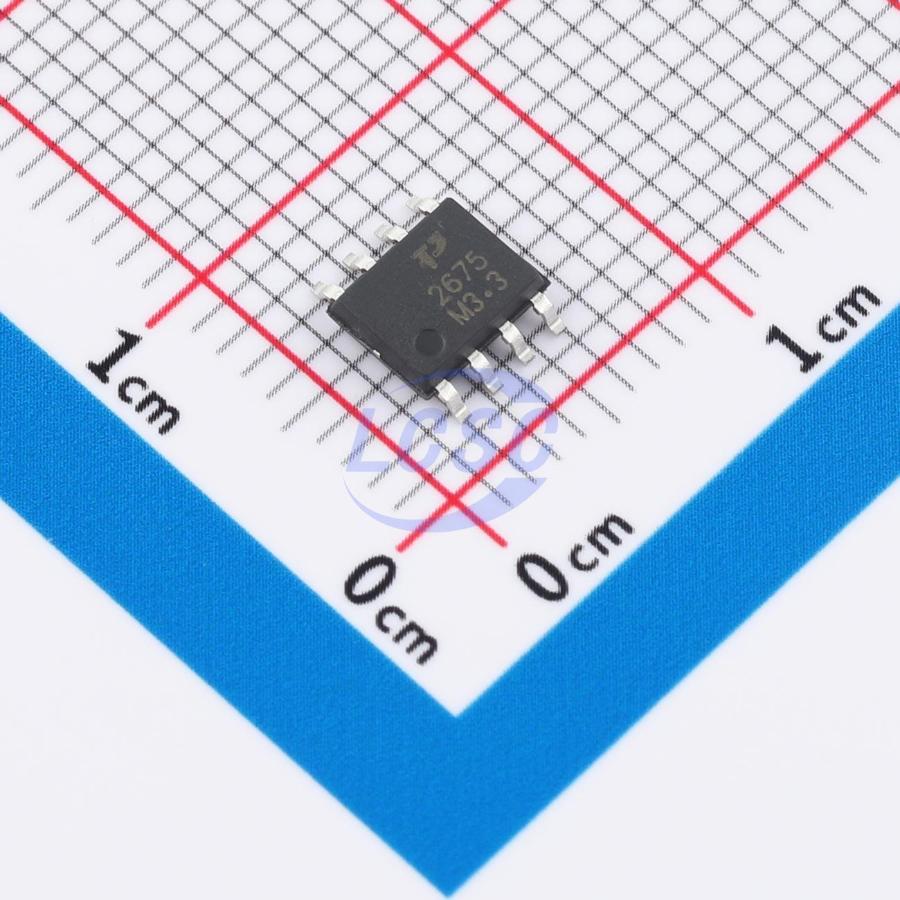

LM2675MX-3.3-TP
Step-down type 300kHz Fixed 3.3V 1A SOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
SOP-8ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- LM2675MX-3.3-TP
- Store part #
- C49333160
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,384 in stock
#C49333160
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹104.09 | ₹104.09 |
| 10+ | ₹92.36 | ₹923.60 |
| 30+ | ₹86.48 | ₹2,594.40 |
| 100+ | ₹80.84 | ₹8,084.00 |
| 500+ | ₹77.37 | ₹38,685.00 |
| 1,000+ | ₹75.41 | ₹75,410.00 |
1 × ₹104.09
₹104.09
excl. GST
₹122.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM2675MX-3.3-TP
₹104.09 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Function
- Step-down type
- Frequency - Switching
- 300kHz
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Topology
- Buck
- Output Type
- Fixed
- Operating Voltage
- 6V~40V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 3.3V
- Output Current
- 1A
- Quiescent Current
- 5mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.179 g
Overview
Applications
- Industrial Equipment
- Sensor Power Modules
- PLC Control Boards
- DSL Modems
- Access Point Routers
- Portable Medical Devices
- Set-Top Boxes
Key features
- Available in 3.3V, 5V, 12V, and adjustable output voltage versions
- Wide input voltage range up to 40V
- Guaranteed 1A output current
- High efficiency
- Only 4 external components required
- 300 kHz fixed-frequency internal oscillator
- TTL shutdown capability with low-power standby mode
- Compatible with standard, off-the-shelf inductors
- Thermal shutdown and current limiting protection
- Adjustable version output voltage range: 1.23V to 37V, max ±4% deviation over line and load conditions
- Low quiescent current: 50uA typical
- RoHS and halogen-free compliant
- Compact package: SOP-8
