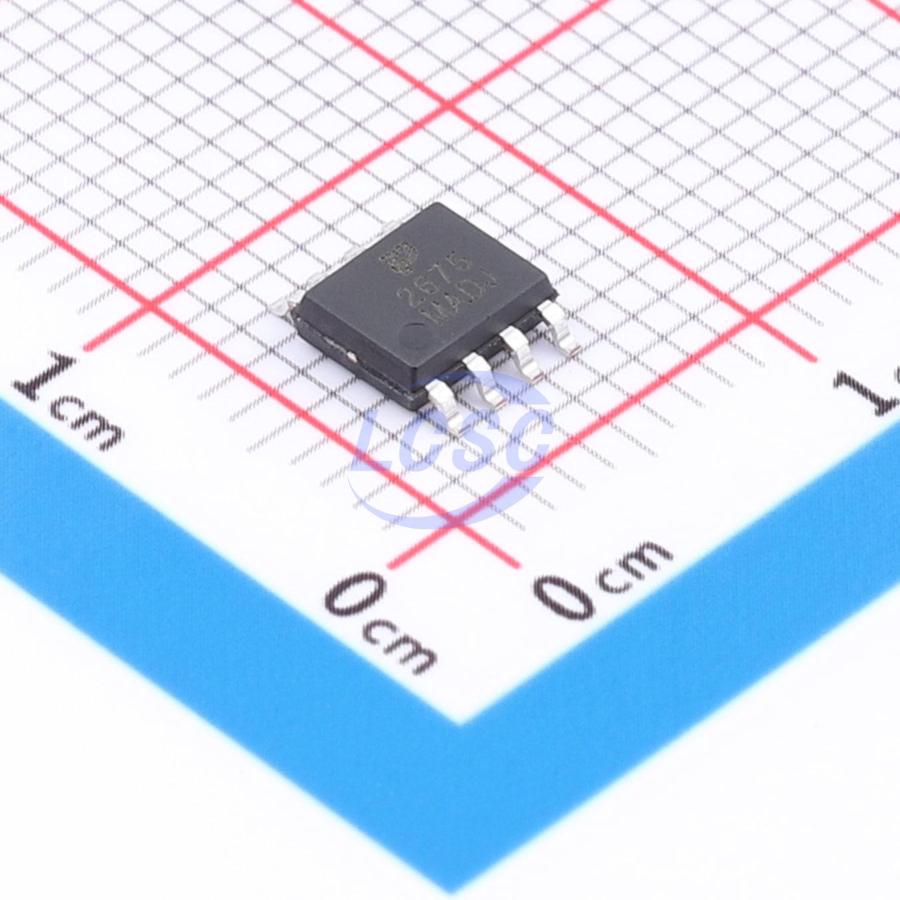

LM2675MX-ADJ-TP
Buck Switching Regulator IC Adjustable 1.23V~37V 1 Output 1A SOP-8
SOP-8RoHSActive
300kHz 1A Step-Down Voltage Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- LM2675MX-ADJ-TP
- Store part #
- C48995532
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,424 in stock
#C48995532
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹107.52 | ₹107.52 |
| 10+ | ₹97.00 | ₹970.00 |
| 30+ | ₹91.21 | ₹2,736.30 |
| 100+ | ₹84.78 | ₹8,478.00 |
| 500+ | ₹81.99 | ₹40,995.00 |
| 1,000+ | ₹80.70 | ₹80,700.00 |
1 × ₹107.52
₹107.52
excl. GST
₹126.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM2675MX-ADJ-TP
₹107.52 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Function
- Step-down type
- Number of Outputs
- 1
- Frequency - Switching
- 270kHz~330kHz
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 6V~40V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1A
- Output Voltage
- 1.23V~37V
- Quiescent Current
- 5mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.19 g
Overview
Applications
- Industrial Equipment
- Sensor Power Modules
- PLC Control Boards
- DSL Modems
- Access Point Routers
- Portable Medical Devices
- Set-Top Boxes
Key features
- Available in 3.3V, 5V, 12V, and adjustable output voltage versions
- Wide input voltage range up to 40V
- Guaranteed 1A output current
- High efficiency
- Only 4 external components required
- 300 kHz fixed-frequency internal oscillator
- TTL shutdown capability with low-power standby mode
- Compatible with standard, off-the-shelf inductors
- Thermal shutdown and current limiting protection
- Adjustable version output voltage range: 1.23V to 37V, max ±4% deviation over line and load conditions
- Low quiescent current: 50uA typical
- RoHS and halogen-free compliant
- Compact package: SOP-8
