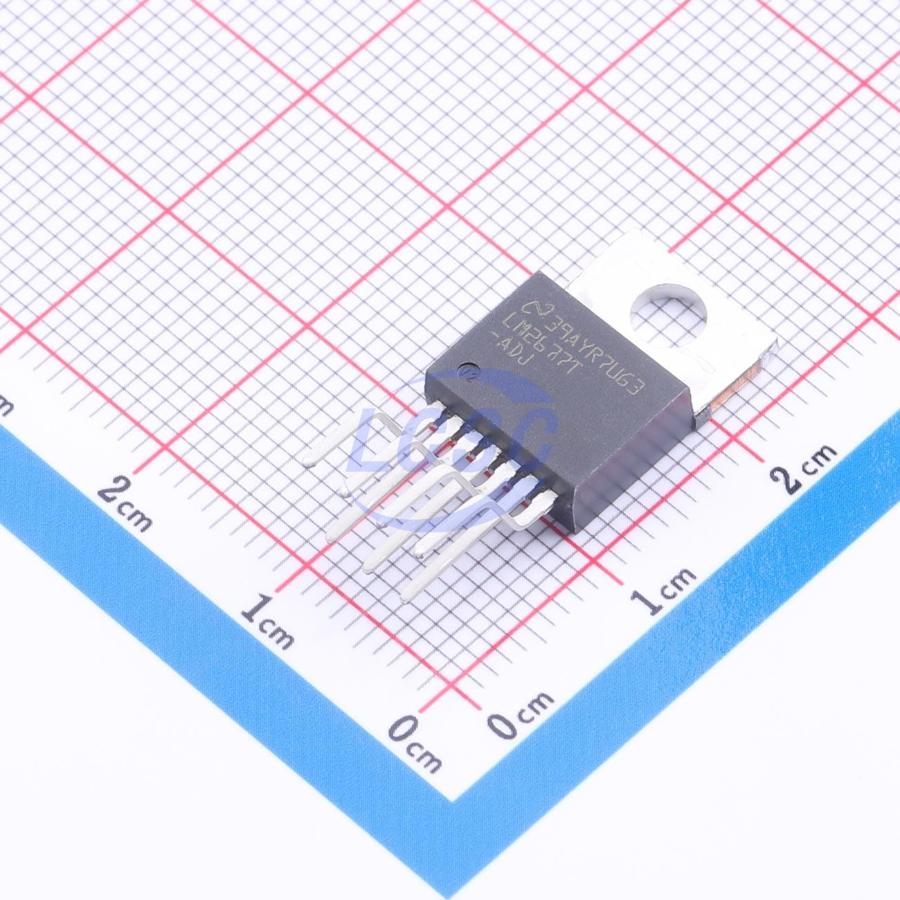

LM2677T-ADJ/NOPB
260kHz Step-down type Adjustable 5A 1.21V~37V TO-220-7 Voltage Regulators - DC DC Switching Regulators RoHS
TO-220-7ROHS3 CompliantActive
- Manufacturer
- TI
- Manufacturer part #
- LM2677T-ADJ/NOPB
- Store part #
- C1355715
- Package / case
- TO-220-7
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C1355715
Stock & price checked 13 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,063.96 | ₹1,063.96 |
| 10+ | ₹1,036.81 | ₹10,368.10 |
| 30+ | ₹1,018.63 | ₹30,558.90 |
| 100+ | ₹1,000.47 | ₹1,00,047.00 |
1 × ₹1,063.96
₹1,063.96
excl. GST
₹1,255.47 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 45 per tube
LM2677T-ADJ/NOPB
₹1,063.96 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 260kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Frequency synchronization;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 8V~40V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 5A
- Output Voltage
- 1.21V~37V
- Quiescent Current
- 4.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 45 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 4.56 g
