LM2682MMX/NOPB

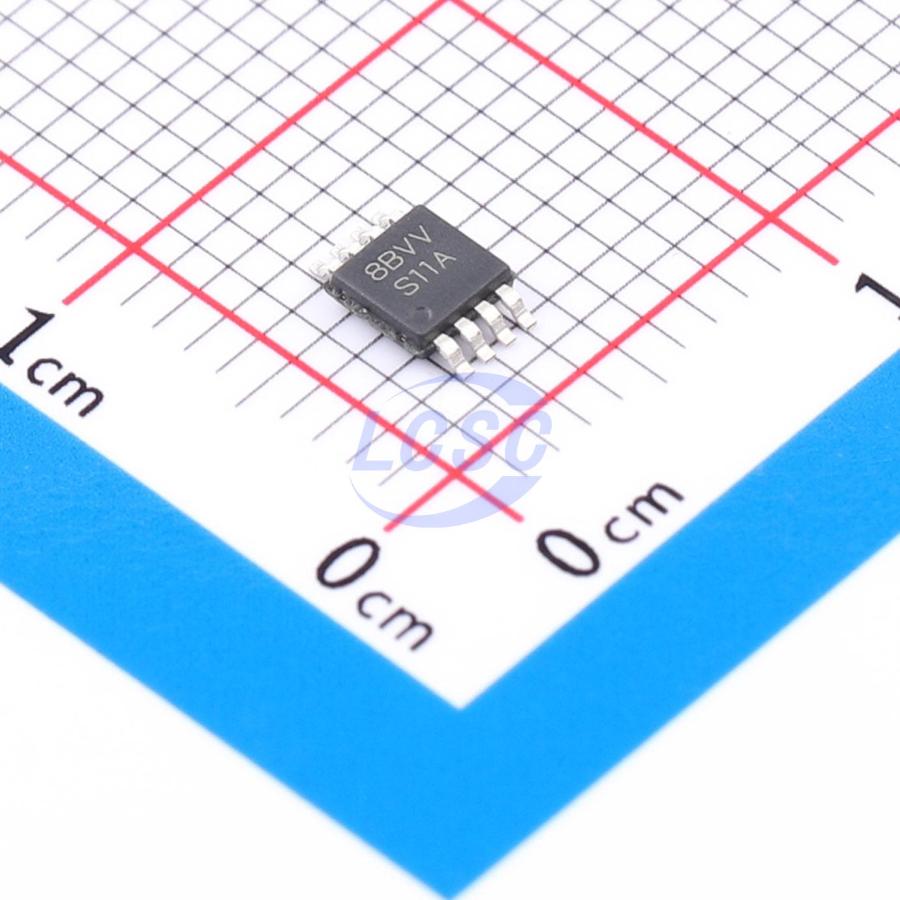

Inverted 6kHz 10mA 4V~11V VSSOP-8-0.65mm Voltage Regulators - DC DC Switching Regulators RoHS

VSSOP-8-0.65mmROHS3 CompliantActive

Switched Capacitor Voltage Doubling Inverter

Manufacturer: TI
Manufacturer part #: LM2682MMX/NOPB
Store part #: C2876479
Package / case: VSSOP-8-0.65mm
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

101 in stock

#C2876479

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
1+	₹729.20	₹729.20
200+	₹316.58	₹63,316.00
500+	₹307.43	₹1,53,715.00
1,000+	₹302.90	₹3,02,900.00

Quantity (min 1)

1 × ₹729.20

₹729.20

excl. GST

₹860.46 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,500 per reel

LM2682MMX/NOPB

₹729.20 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Function: Inverted
Frequency - Switching: 6kHz
Operating Voltage: 2V~5.5V
Output Current: 10mA
Output Voltage: 4V~11V
Energy Efficiency: 94%
Quiescent Current: 300uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.103 g

Overview

The LM2682 is a CMOS charge-pump voltage inverter capable of converting positive voltage in the range of +2.0V to +5.5V to the corresponding doubled negative voltage of -4.0V to -11.0V respectively. The LM2682 uses three low cost capacitors to provide 10 mA of output current without the cost, size, and EMI related to inductor based circuits. With an operating current of only 150 μA and an operating efficiency greater than 90% with most loads, the LM2682 provides ideal performance for battery powered systems. The LM2682 offers a switching frequency of 6 kHz.
