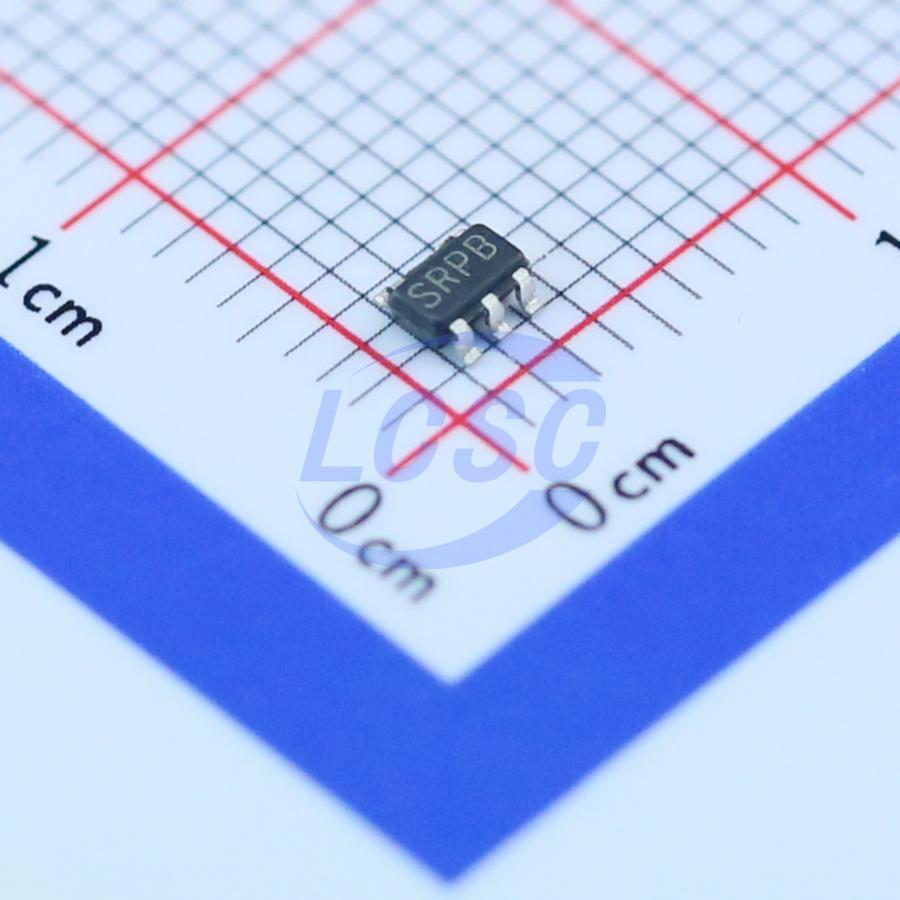

LM27313XMF/NOPB

The LM27313/-Q1 switching regulator is a current - mode boost converter with a fixed operating frequency of 1.6 MHz. The use of the SOT - 23 package, made possible by the minimal losses of the 800 - mA switch, and the small inductors and capacitors result in extremely high power density. The 30 - V internal switch makes these solutions perfect for boosting to voltages of 5 V to 28 V. This device has a logic - level shutdown pin that can be used to reduce quiescent current and extend battery life. Protection is provided through cycle - by - cycle current limiting and thermal shutdown. Internal compensation simplifies design and reduces component count.

Applications

• White LED Current Source
• PDAs and Palm - Top Computers
• Digital Cameras
• Portable Phones, Games, and Media Players
• GPS Devices

Key features

• LM27313 - Q1 is an Automotive - Grade Product that is AEC - Q100 Grade 1 Qualified (-40°C to +125°C Operating Junction Temperature) 30 - V DMOS FET Switch 1.6 - MHz Switching Frequency
• Low RDS(ON) DMOS FET Switch Current up to 800 mA
• Wide Input Voltage Range (2.7 to 14 V) Low Shutdown Current (<1 μA)
• 5 - Lead SOT - 23 Package
• Uses Tiny Capacitors and Inductors
• Cycle - by - Cycle Current Limiting
• Internally Compensated
