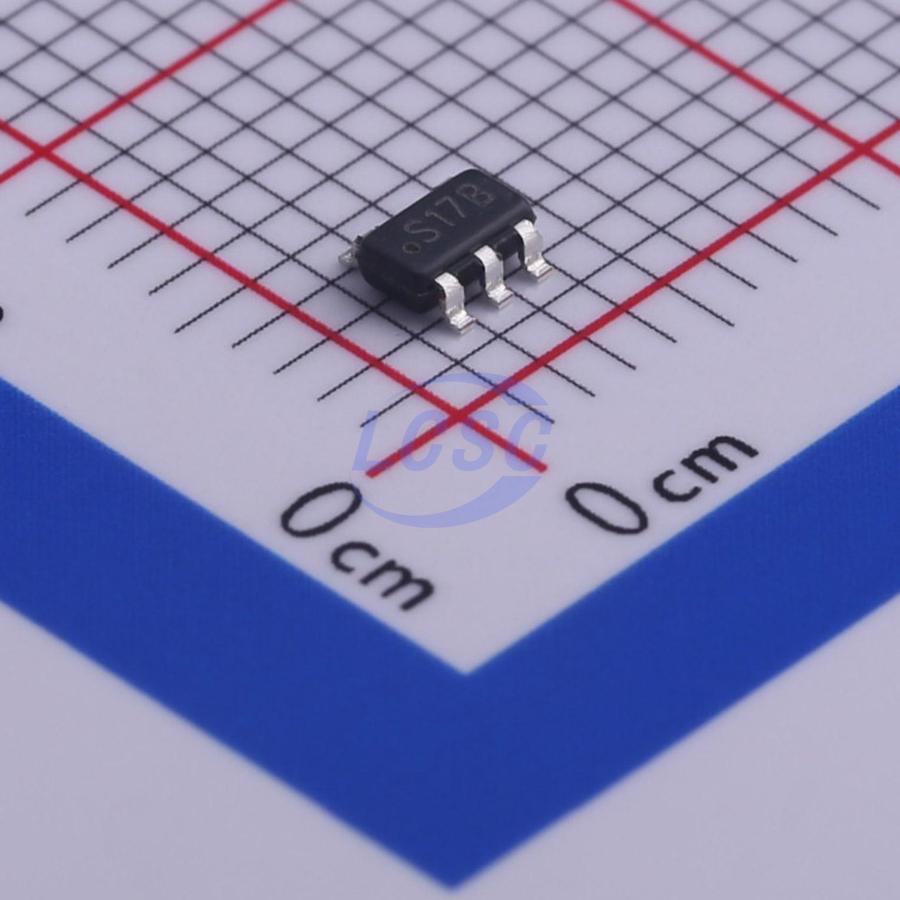

LM2767M5X/NOPB

11kHz boost converter 15mA SOT-23-5 Voltage Regulators - DC DC Switching Regulators RoHS

SOT-23-5ROHS3 CompliantActive

Switched Capacitor Voltage Converter

Manufacturer: TI
Manufacturer part #: LM2767M5X/NOPB
Store part #: C469870
Package / case: SOT-23-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

249 in stock

#C469870

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹140.07	₹140.07
10+	₹123.81	₹1,238.10
30+	₹108.42	₹3,252.60
100+	₹97.13	₹9,713.00
500+	₹92.37	₹46,185.00
1,000+	₹90.20	₹90,200.00

Quantity (min 1)

1 × ₹140.07

₹140.07

excl. GST

₹165.28 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

LM2767M5X/NOPB

₹140.07 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 11kHz
Function: boost converter
Features: Cascade support
Operating Voltage: 1.8V~5.5V
Output Current: 15mA
Quiescent Current: 40uA
Energy Efficiency: 96%

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.025 g

Overview

The LM2767 CMOS charge-pump voltage converter operates as a voltage doubler for an input voltage in the range of 1.8 V to 5.5 V. Two low-cost capacitors and a diode are used in this circuit to provide at least 15 mA of output current. The LM2767 operates at 11-kHz switching frequency to avoid audio voice-band interference. With an operating current of only 40 μA (operating efficiency greater than 90% with most loads), the LM2767 provides ideal performance for battery-powered systems. The device is manufactured in a 5-pin SOT-23 package.
