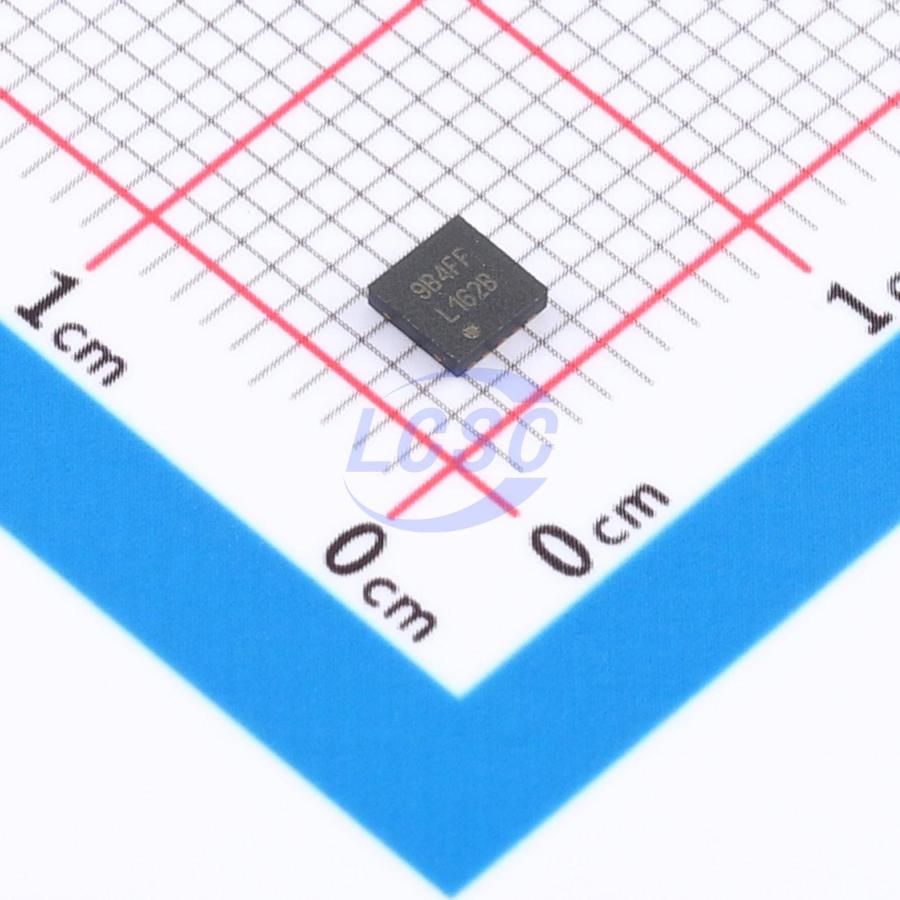

LM2770SD-1215/NOPB

The LM2770 is a switched capacitor step-down regulator that is ideal for powering low-voltage applications in portable systems. The LM2770 can supply load currents up to 250 mA and operates over an input voltage range of 2.7V to 5.5V. This makes the LM2770 a great choice for systems powered by 1-cell Li-Ion batteries and chargers. The output voltage of the LM2770 can be dynamically switched between two output levels with a logic input pin. Output voltage pairs currently available include 1.2V/1.5V and 1.2V/1.575V. Other pairs of voltage options can be developed upon request. LM2770 efficiency is superior to both fixed-gain switched capacitor buck regulators and low-dropout linear regulators (LDO's). Multiple fractional gains maximize power efficiency over the entire input voltage and output current ranges. The LM2770 can also be switched into a low-power sleep mode when load currents are light (≤ 20mA). In sleep mode, the charge pump is off, and the output is driven with a low-noise, low-power linear regulator. Soft-start, short-circuit protection, current-limit protection, and thermal-shutdown protection are also included. The LM2770 is available in TI’s small 10-pin Leadless Leadframe Package (WSON-10).

Applications

• DSP Power Supplies
• Baseband Power Supplies
• Mobile Phones and Pagers
• Portable Electronic Equipment

Key features

• High Efficiency Multi-Gain Architecture: Peak Power Efficiency >85%
• Output Voltage Pairs: 1.2V/1.5V and 1.2V/1.575V
• Dynamic Output Voltage Selection
• ±3% Output Voltage Accuracy
• Output Currents up to 250mA
• 2.7V to 5.5V Input Range
• Low-Supply-Current Sleep Mode
• 55μA Quiescent Supply Current in Full-Power Mode
• Soft-Start
• Short-Circuit Protection in Full-Power Mode
• Current-Limit Protection in Sleep Mode
• WSON-10 Package (3mm×3mm×0.8mm)
