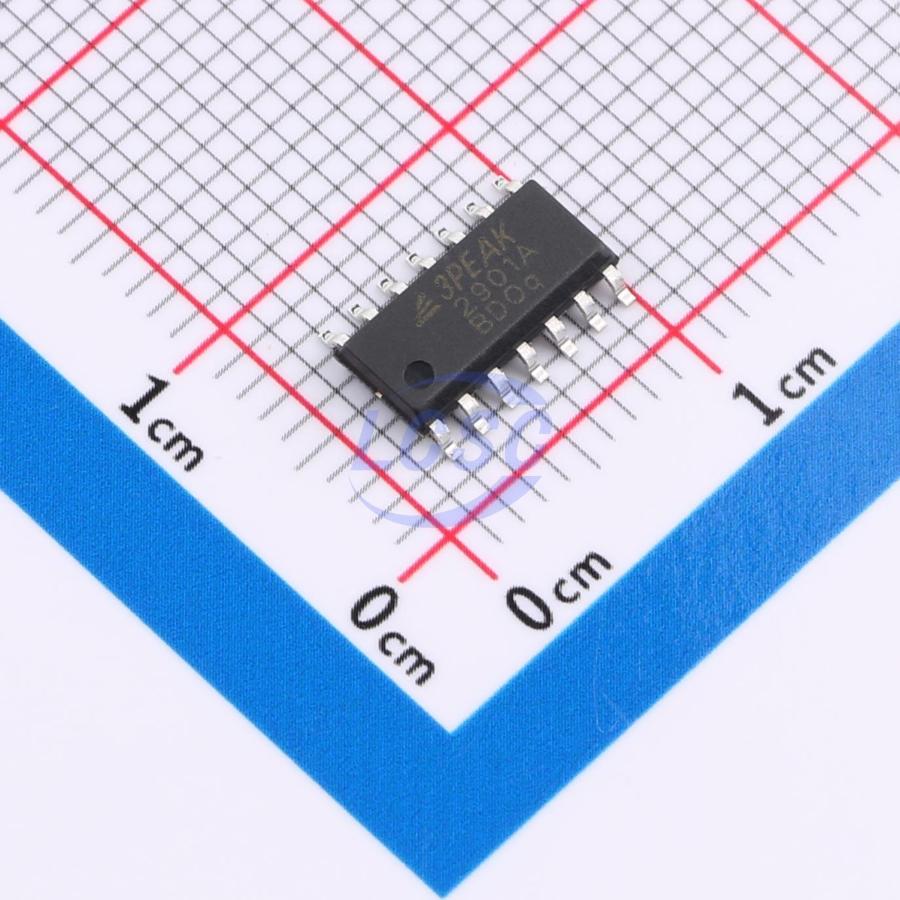

LM2901A-SR

This series of devices consists of single, dual, or quad independent single-supply or dual-supply voltage comparators integrated on a single monolithic substrate. The common-mode input voltage range includes ground potential, even when operating from a single supply. Low-power supply current consumption makes them suitable for battery-powered applications. These devices are designed to interface directly with TTL and CMOS. Current consumption is independent of supply voltage. The outputs can be connected to other open-collector outputs to realize a wired-AND logic relationship. All devices operate over a temperature range of -40°C to 125°C.

Applications

• High-speed line or digital line receivers
• High-speed sampling circuits
• Peak and zero-crossing detectors
• Threshold detectors/discriminators
• Ground or power line detection

Key features

• Wide single-supply or dual-supply voltage range: +2.5 V to +36 V or ±1.25 V to ±18 V
• Ultra-low supply current: 150 μA/channel
• Low input bias current: 1 nA (maximum)
• Low offset voltage: ±6.0 mV (maximum)
• Input common-mode voltage range includes ground
• Internal differential input voltage range equal to supply voltage
• Low output saturation voltage
• Operating temperature range: -40°C to 125°C
• ESD rating: 4-kV HBM, 2-kV CDM
