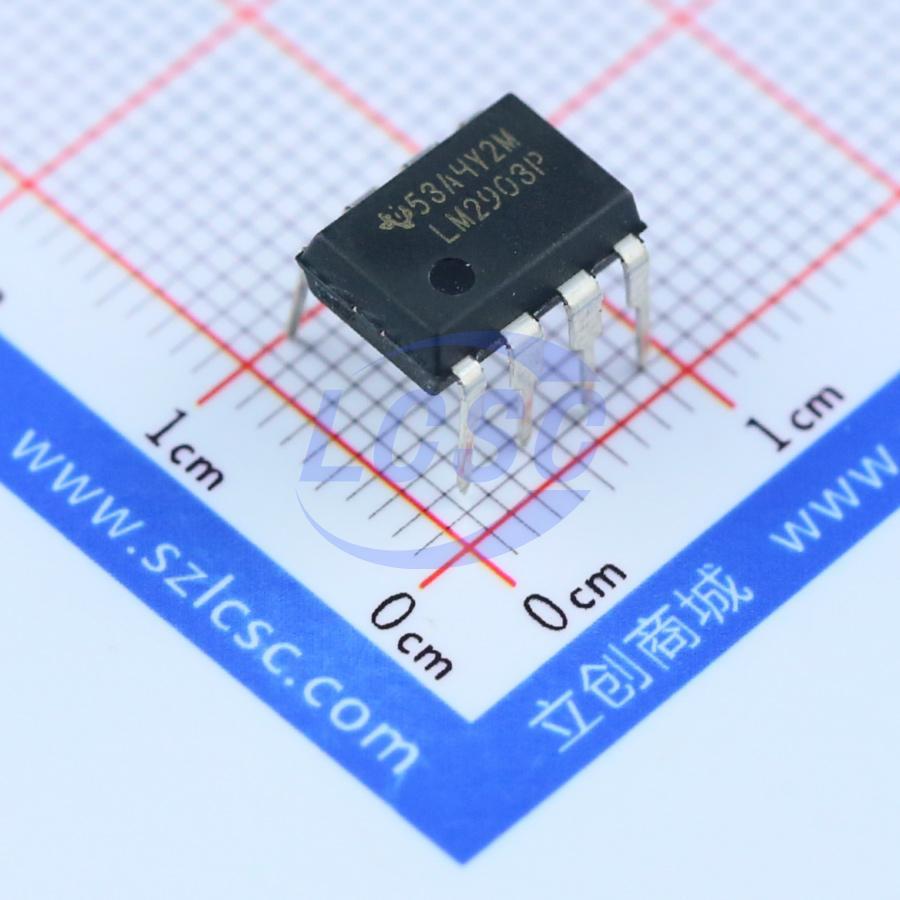

LM2903P
2 800uA 2mV PDIP-8 Comparators RoHS
Dual Differential Comparators
- Manufacturer
- TI
- Manufacturer part #
- LM2903P
- Store part #
- C14770
- Package / case
- PDIP-8
- Category
- Comparators
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,375 in stock
#C14770
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹46.16 | ₹230.80 |
| 50+ | ₹36.14 | ₹1,807.00 |
| 150+ | ₹32.28 | ₹4,842.00 |
| 500+ | ₹27.47 | ₹13,735.00 |
| 2,500+ | ₹25.32 | ₹63,300.00 |
| 5,000+ | ₹24.04 | ₹1,20,200.00 |
5 × ₹46.16
₹230.80
excl. GST
₹272.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
LM2903P
₹230.80 for 5 + GST
Specifications
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Output Mode
- TTL;CMOS
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 25nA
- Propagation Delay(tpd)
- 1.3us
- Quiescent Current(Iq)
- 800uA
- Vos - Input Offset Voltage
- 2mV
- Maximum Power Supply Range (Vdd-Vss)
- 36V
- Single Supply
- 2V~36V
- Response Time (tr)
- 1.3us
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.9 g
Overview
These devices consist of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common - mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open - collector outputs to achieve wired - AND relationships.
Key features
- Single Supply or Dual Supplies
- Wide Range of Supply Voltage: Max Rating... 2 V to 36 V; Tested to 30 V... Non - V Devices; Tested to 32 V... V - Suffix Devices
- Low Supply - Current Drain Independent of Supply Voltage... 0.4 mA Typ Per Comparator
- Low Input Bias Current... 25 nA Typ
- Low Input Offset Current... 3 nA Typ (LM193)
- Low Input Offset Voltage... 2 mV Typ
- Common - Mode Input Voltage Range Includes Ground
- Differential Input Voltage Range Equal to Maximum - Rated Supply Voltage... ±36 V
- Low Output Saturation Voltage
- Output Compatible With TTL, MOS, and CMOS
