STDatasheet (PDF)

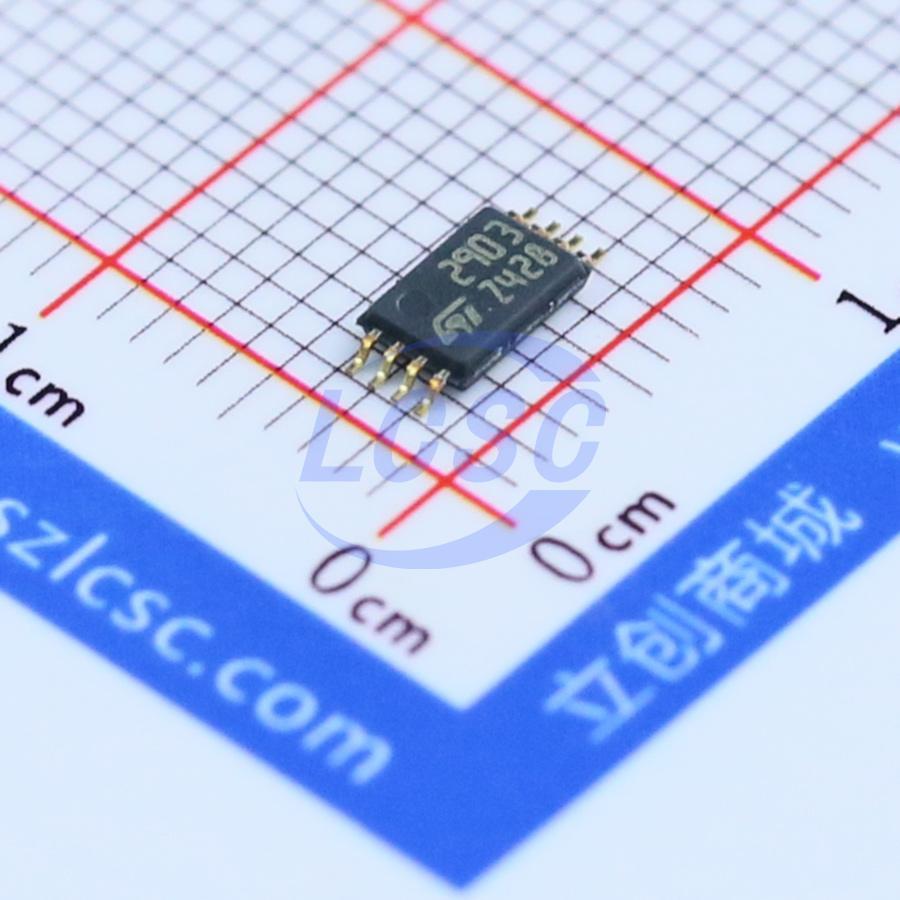

LM2903PT
2 400uA 1mV TSSOP-8 Comparators RoHS
TSSOP-8ROHS3 CompliantActive
Low-power dual voltage comparator
- Manufacturer
- ST
- Manufacturer part #
- LM2903PT
- Store part #
- C7550
- Package / case
- TSSOP-8
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,425 in stock
#C7550
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.75 | ₹143.75 |
| 50+ | ₹21.59 | ₹1,079.50 |
| 150+ | ₹18.52 | ₹2,778.00 |
| 500+ | ₹14.70 | ₹7,350.00 |
| 2,500+ | ₹12.99 | ₹32,475.00 |
| 4,000+ | ₹11.96 | ₹47,840.00 |
5 × ₹28.75
₹143.75
excl. GST
₹169.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM2903PT
₹143.75 for 5 + GST
Specifications
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Output Mode
- TTL;CMOS
- Operating Temperature
- -40℃~+125℃
- Dual Supply
- 1V~18V;-18V~-1V
- Ib - Input Bias Current
- 25nA
- Propagation Delay(tpd)
- 1.3us
- Quiescent Current(Iq)
- 400uA
- Vos - Input Offset Voltage
- 1mV
- Maximum Power Supply Range (Vdd-Vss)
- 36V
- Single Supply
- 2V~36V
- Response Time (tr)
- 1.3us
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.163 g
Overview
This device consists of two independent lowpower voltage comparators designed specifically to operate from a single supply over a wide range of voltages. Operation from split power supplies is also possible. In addition, the device has a unique characteristic in that the input common - mode voltage range includes the negative rail even though operated from a single power supply voltage.
Key features
- Wide single supply voltage range or dual supplies +2 V to +36 V or ±1 V to ±18 V
- Very low supply current (0.4 mA) independent of supply voltage (1 mW/comparator at +5 V)
- Low input bias current: 25 nA typ.
- Low input offset current: ±5 nA typ.
- Input common - mode voltage range includes negative rail
- Low output saturation voltage: 250 mV typ. (I₀ = 4 mA)
- Differential input voltage range equal to the supply voltage
