STDatasheet (PDF)

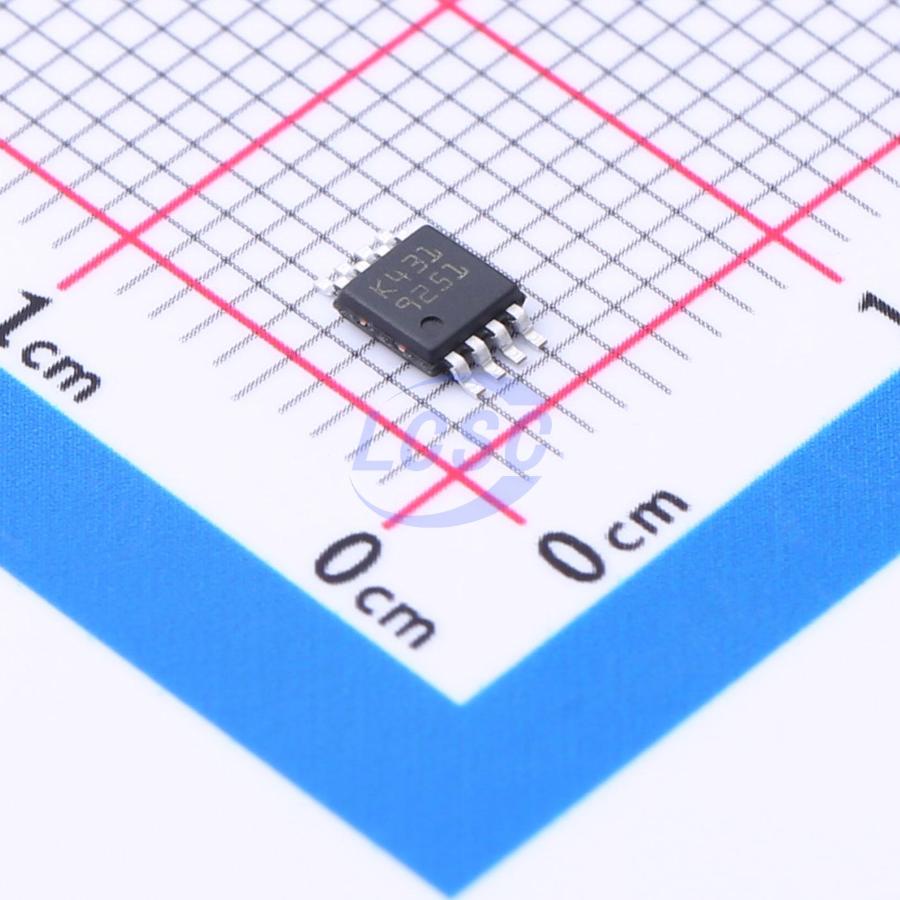

LM2903ST
2 400uA 1mV Rail-to-rail input MiniSO-8 Comparators RoHS
MiniSO-8ROHS3 CompliantActive
Low-power dual voltage comparator
- Manufacturer
- ST
- Manufacturer part #
- LM2903ST
- Store part #
- C2970318
- Package / case
- MiniSO-8
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,895 in stock
#C2970318
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.92 | ₹194.60 |
| 50+ | ₹30.89 | ₹1,544.50 |
| 150+ | ₹27.47 | ₹4,120.50 |
| 500+ | ₹23.17 | ₹11,585.00 |
| 2,500+ | ₹21.26 | ₹53,150.00 |
| 4,000+ | ₹20.11 | ₹80,440.00 |
5 × ₹38.92
₹194.60
excl. GST
₹229.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM2903ST
₹194.60 for 5 + GST
Specifications
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Output Mode
- TTL;DTL;ECL;MOS;CMOS
- Operating Temperature
- -40℃~+125℃
- Dual Supply
- 1V~18V;-18V~-1V
- Ib - Input Bias Current
- 25nA
- Quiescent Current(Iq)
- 400uA
- Vos - Input Offset Voltage
- 1mV
- Maximum Power Supply Range (Vdd-Vss)
- 36V
- Rail to Rail
- Rail-to-rail input
- Single Supply
- 2V~36V
- Response Time (tr)
- 1.3us
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.14 g
Overview
This device consists of two independent lowpower voltage comparators designed specifically to operate from a single supply over a wide range of voltages. Operation from split power supplies is also possible. In addition, the device has a unique characteristic in that the input common-mode voltage range includes the negative rail even though operated from a single power supply voltage.
Applications
- Basic comparator
- Driving CMOS
- Driving TTL
- Low-frequency op-amp
- Low-frequency op-amp with boost
- Sensor amplifier
- Low-frequency op-amp with offset adjustment
- Single-supply zero-crossing detector
- Limiting comparator
- Zero-crossing detector for split-supply applications
- Crystal-controlled oscillator
- Comparator with negative reference
- Time delay generator
- Dual-decade high-frequency VCO
Key features
- Wide single supply voltage range or dual supplies +2V to +36V or ±1V to ±18V
- Very low supply current (0.4 mA) independent of supply voltage (1 mW/comparator at +5V)
- Low input bias current: 25 nA typ.
- Low input offset current: ±5 nA typ.
- Input common-mode voltage range includes negative rail
- Low output saturation voltage: 250 mV typ. (IO = 4 mA)
- Differential input voltage range equal to the supply voltage
- TTL, DTL, ECL, MOS, CMOS compatible outputs
- Automotive qualification
