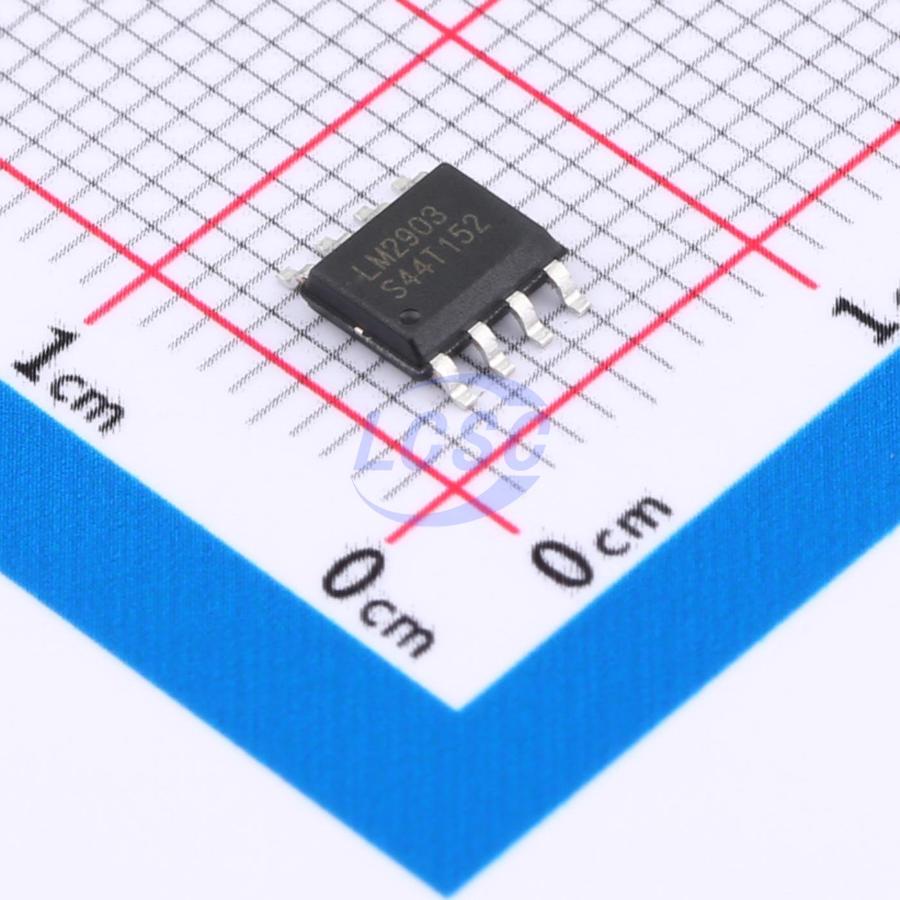

LM2903XK
2 110uA 800uV SOIC-8 Comparators RoHS
General-Purpose High-Voltage Open-Drain Output Dual Comparator
- Manufacturer
- RUNIC
- Manufacturer part #
- LM2903XK
- Store part #
- C2931602
- Package / case
- SOIC-8
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,585 in stock
#C2931602
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.04 | ₹120.20 |
| 50+ | ₹17.33 | ₹866.50 |
| 150+ | ₹13.98 | ₹2,097.00 |
5 × ₹24.04
₹120.20
excl. GST
₹141.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM2903XK
₹120.20 for 5 + GST
Specifications
- Number of Channels
- 2
- Input Offset Current(Ios)
- 10pA
- Output Mode
- CMOS
- Operating Temperature
- -40℃~+125℃
- Dual Supply
- 1.65V~16V;-16V~-1.65V
- Ib - Input Bias Current
- 10pA
- Output Type
- Open-drain
- Propagation Delay(tpd)
- 500ns
- Quiescent Current(Iq)
- 110uA
- Vos - Input Offset Voltage
- 800uV
- Maximum Power Supply Range (Vdd-Vss)
- 36V
- Single Supply
- 3.3V~32V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.19 g
Overview
The LM2903 is the dual comparator version, and the outputs can be connected to other open-collector outputs to achieve wired-AND relationships. It can operate from 3.3V to 32V, and have low power consuming 55μA (TYP) per channel. The LM2903 consist of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Quiescent current is independent of the supply voltage. The device is the most cost-effective solutions for applications where low offset voltage, high supply voltage capability, low supply current, and space saving are the primary specifications in circuit design for portable consumer products. The LM2903 is available in Green SOIC-8, MSOP-8 packages. It operates over an ambient temperature range of -40°C to +125°C.
Applications
- Hysteresis Comparators
- Factory Automation & Control
- Industrial Equipment
- Test and Measurement
- Cordless Power Tool
- Vacuum Robot
- Wireless Infrastructure
Key features
- Supply Range: +3.38 to +328
- Low Supply Current 55μA (TYP) per channel at Vs = 5V
- Common-Mode Input Voltage Range Includes Ground
- Low Output Saturation Voltage
- Open-Drain Output for Maximum Flexibility
- SPECIFIED UP TO ±125°C
- Micro SIZE PACKAGES: SOIC-8(SOP8)、 MSOP-8
