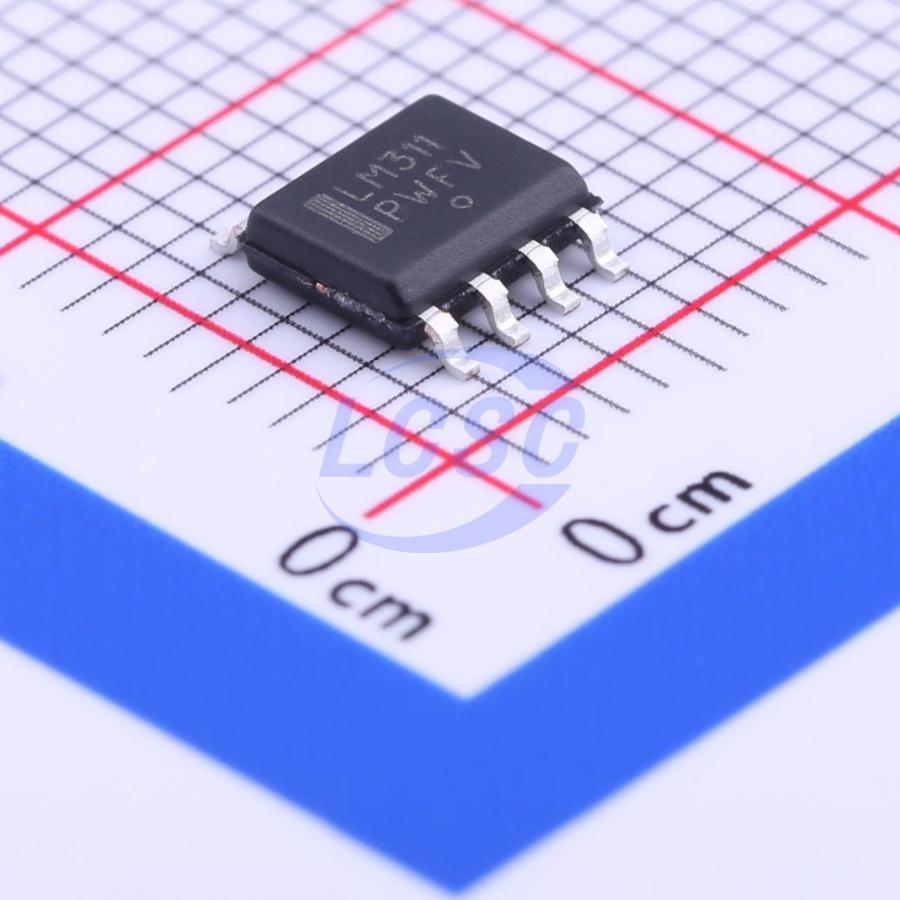

LM311DR2G
1 13.8mA 700uV SOIC-8 Comparators RoHS
Single Comparators
- Manufacturer
- onsemi
- Manufacturer part #
- LM311DR2G
- Store part #
- C231850
- Package / case
- SOIC-8
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,915 in stock
#C231850
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.40 | ₹212.00 |
| 50+ | ₹35.24 | ₹1,762.00 |
| 150+ | ₹32.19 | ₹4,828.50 |
| 500+ | ₹27.27 | ₹13,635.00 |
| 2,500+ | ₹25.57 | ₹63,925.00 |
| 5,000+ | ₹24.54 | ₹1,22,700.00 |
5 × ₹42.40
₹212.00
excl. GST
₹250.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM311DR2G
₹212.00 for 5 + GST
Specifications
- Number of Channels
- 1
- Input Offset Current(Ios)
- 1.7nA
- Output Mode
- TTL;CMOS
- Operating Temperature
- -25℃~+85℃
- Features
- Built-in hysteresis
- Dual Supply
- ±15V
- Ib - Input Bias Current
- 45nA
- Propagation Delay(tpd)
- 200ns
- Input Hysteresis Voltage (Vhys)
- 1mV
- Quiescent Current(Iq)
- 13.8mA
- Vos - Input Offset Voltage
- 700uV
- Maximum Power Supply Range (Vdd-Vss)
- 36V
- Single Supply
- 5V~30V
- Response Time (tr)
- 200ns
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.291 g
Overview
The ability to operate from a single power supply of 5.0 V to 30 V or ± 15 V split supplies, as commonly used with operational amplifiers, makes the LM211/LM311 a truly versatile comparator. Moreover, the inputs of the device can be isolated from system ground while the output can drive loads referenced either to ground, the VCC or the VEE supply. This flexibility makes it possible to drive DTL, RTL, TTL, or MOS logic. The output can also switch voltages to 50 V at currents to 50 mA, therefore, the LM211/LM311 can be used to drive relays, lamps or solenoids.
Key features
- These Devices are Pb−Free and are RoHS Compliant
