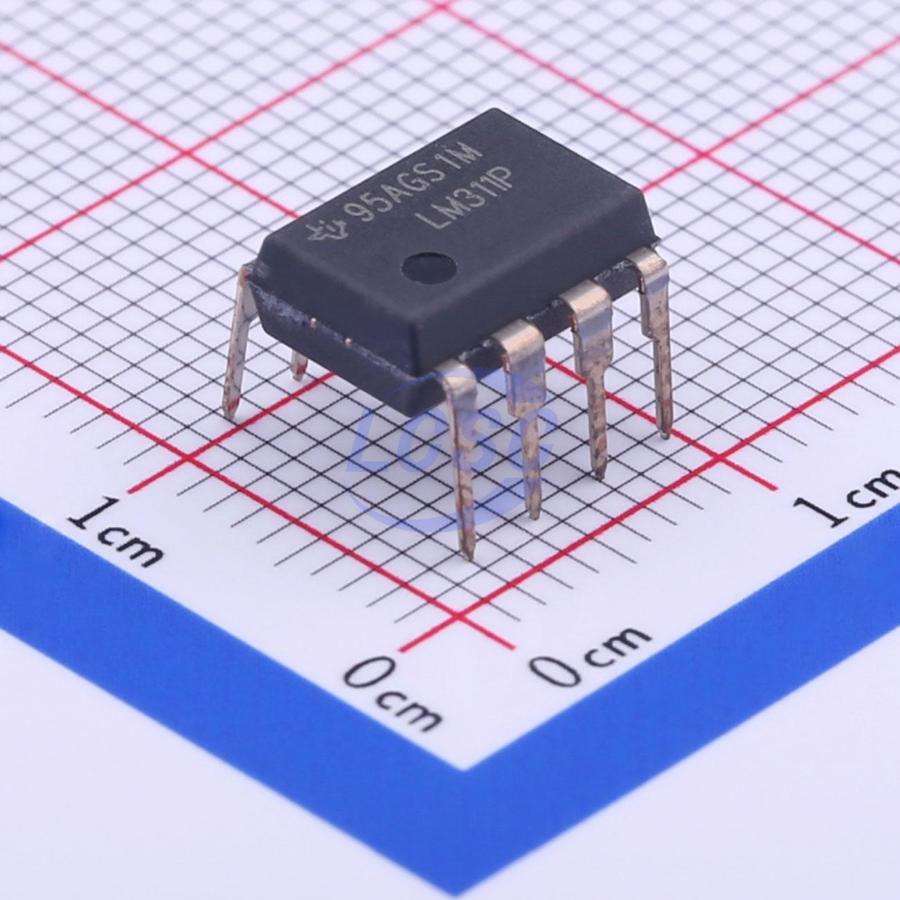

LM311P
1 7.5mA 7.5mV PDIP-8 Comparators RoHS
Differential Comparators with Strobes
- Manufacturer
- TI
- Manufacturer part #
- LM311P
- Store part #
- C5219
- Package / case
- PDIP-8
- Category
- Comparators
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,350 in stock
#C5219
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.95 | ₹239.75 |
| 50+ | ₹37.35 | ₹1,867.50 |
| 150+ | ₹33.26 | ₹4,989.00 |
| 500+ | ₹28.18 | ₹14,090.00 |
| 2,500+ | ₹25.90 | ₹64,750.00 |
| 5,000+ | ₹24.55 | ₹1,22,750.00 |
5 × ₹47.95
₹239.75
excl. GST
₹282.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
LM311P
₹239.75 for 5 + GST
Specifications
- Number of Channels
- 1
- Input Offset Current(Ios)
- 50nA
- Output Mode
- TTL;MOS
- Operating Temperature
- 0℃~+70℃
- Features
- Enable/shutdown function;Offset voltage nulling
- Dual Supply
- ±15V
- Ib - Input Bias Current
- 250nA
- Propagation Delay(tpd)
- 165ns
- Quiescent Current(Iq)
- 7.5mA
- Vos - Input Offset Voltage
- 7.5mV
- Maximum Power Supply Range (Vdd-Vss)
- 36V
- Single Supply
- 3.5V~30V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.88 g
Overview
The LM111, LM211, and LM311 are single high-speed voltage comparators. These devices are designed to operate from a wide range of power-supply voltages, including ±15 V supplies for operational amplifiers and 5-V supplies for logic systems. The output levels are compatible with most TTL and MOS circuits. These comparators are capable of driving lamps or relays and switching voltages up to 50 V at 50 mA. All inputs and outputs can be isolated from system ground. The outputs can drive loads referenced to ground, VCC+, VCC-. Offset balancing and strobe capabilities are available, and the outputs can be wire-OR connected. If the strobe is low, the output is in the off state, regardless of the differential input.
Key features
- Fast Response Times
- Strobe Capability
- Maximum Input Bias Current ... 300 nA
- Maximum Input Offset Current ... 70 nA
