LM317C

The LM317C is a three terminal positive voltage regulator with adjustable output. By setting two peripheral resistors, the output voltage range of the device can be set from 1.25V to 37V, and the current up to 1.5A can be provided. The LM317C integrates current limiting, thermal overload protection and safe operation area protection internally, and corresponding capacitors can be added to improve transient response. Therefore, the device is very easy to use, which is difficult to achieve with a standard three terminal regulator.

Applications

• Ethernet Switch, Public Server, Private Switch (PBX) Base Station
• Desktop Computer
• IP Telephone: Wired and Wireless
• Motor Control Refrigerator, Air Conditioner, Washing Machine
• Security Camera, Digital Sign
• Signal or Waveform Generator
• Substation Control, Power Quality Meter

Key features

• The output current exceeds 1.5A
• The output is adjustable from 1.25V to 37 V
• Internal thermal overload protection
• Temperature independent internal short circuit current limit
• Output transistor safe working area compensation

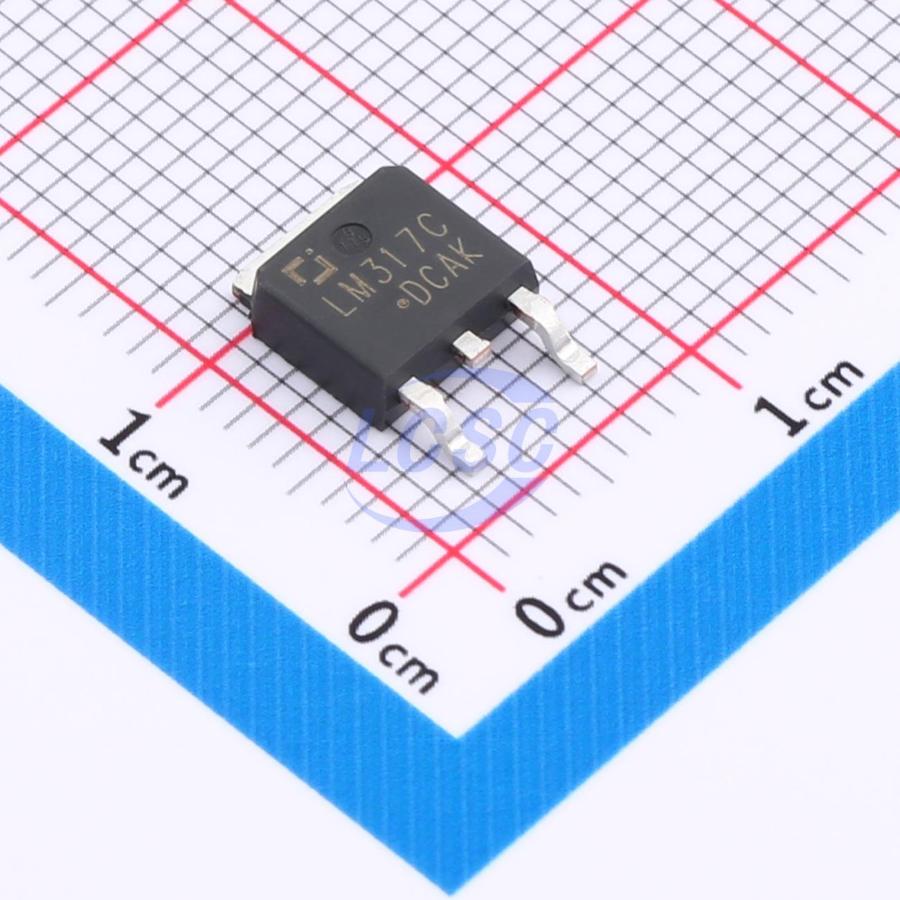

• Commonly used TO - 252 package, as well as other forms of three pin package
• Avoid preparing multiple fixed voltages
