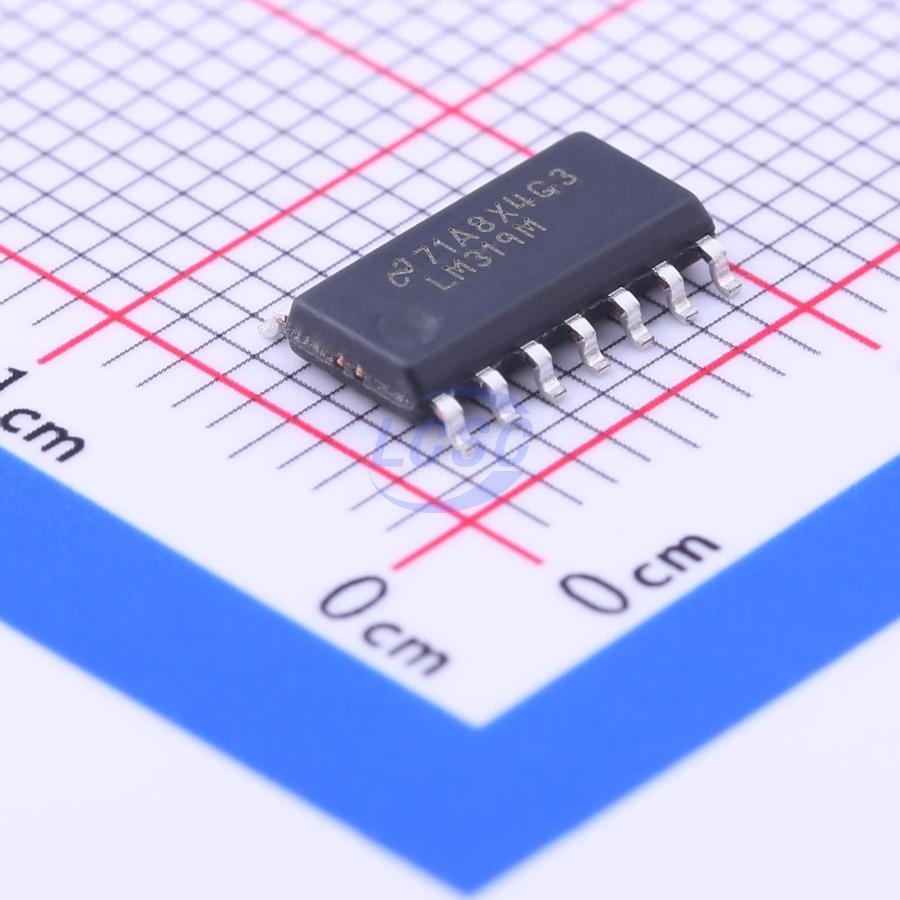

LM319MX/NOPB
2 4.3mA 500uV SOIC-14 Comparators RoHS
High Speed Dual Comparator
- Manufacturer
- TI
- Manufacturer part #
- LM319MX/NOPB
- Store part #
- C7941
- Package / case
- SOIC-14
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,509 in stock
#C7941
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹87.90 | ₹87.90 |
| 10+ | ₹70.75 | ₹707.50 |
| 30+ | ₹62.29 | ₹1,868.70 |
| 100+ | ₹53.61 | ₹5,361.00 |
| 500+ | ₹48.62 | ₹24,310.00 |
| 1,000+ | ₹46.01 | ₹46,010.00 |
1 × ₹87.90
₹87.90
excl. GST
₹103.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM319MX/NOPB
₹87.90 for 1 + GST
Specifications
- Number of Channels
- 2
- Input Offset Current(Ios)
- 80nA
- Output Mode
- DTL;RTL;TTL
- Operating Temperature
- 0℃~+70℃
- Dual Supply
- ±15V
- Ib - Input Bias Current
- 150nA
- Propagation Delay(tpd)
- 80ns
- Quiescent Current(Iq)
- 4.3mA
- Vos - Input Offset Voltage
- 500uV
- Maximum Power Supply Range (Vdd-Vss)
- 36V
- Response Time (tr)
- 80ns
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.264 g
Overview
The LM119 series are precision high speed dual comparators fabricated on a single monolithic chip. They are designed to operate over a wide range of supply voltages down to a single 5V logic supply and ground. Further, they have higher gain and lower input currents than devices like the LM710. The uncommitted collector of the output stage makes the LM119 compatible with RTL, DTL and TTL as well as capable of driving lamps and relays at currents up to 25 mA. The LM319A offers improved precision over the standard LM319, with tighter tolerances on offset voltage, offset current, and voltage gain.
Key features
- Two independent comparators
- Operates from a single 5V supply
- Typically 80 ns response time at ±15V
- Minimum fan-out of 2 each side
- Maximum input current of 1 μA over temperature
- Inputs and outputs can be isolated from system ground
- High common mode slew rate
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM319M/NOPB#C2861939TI · SOIC-14 | TI | SOIC-14 | 9 | ₹100.18 · 9 in stock | View |
