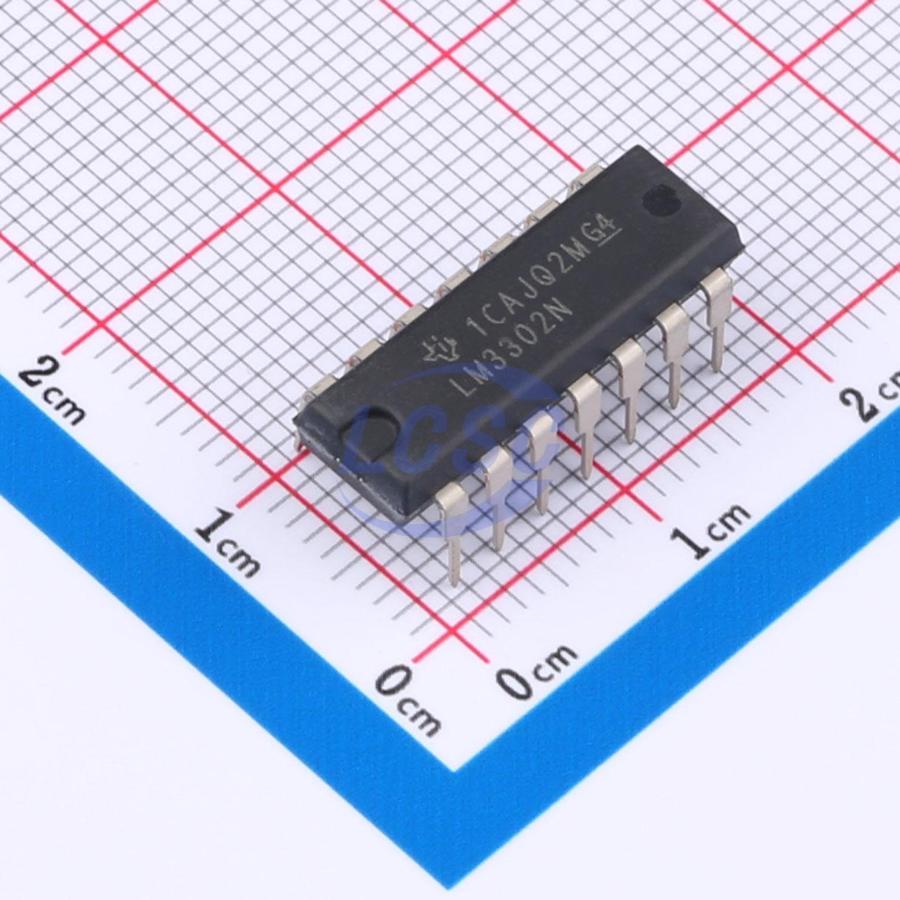

LM3302N
Four channels 800uA 3mV PDIP-14 Comparators RoHS
Single Supply or Dual Supplies Wide Range of Supply Voltage
- Manufacturer
- TI
- Manufacturer part #
- LM3302N
- Store part #
- C2879102
- Package / case
- PDIP-14
- Category
- Comparators
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,250 in stock
#C2879102
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹96.92 | ₹96.92 |
| 10+ | ₹81.96 | ₹819.60 |
| 25+ | ₹71.56 | ₹1,789.00 |
| 100+ | ₹62.67 | ₹6,267.00 |
| 500+ | ₹60.06 | ₹30,030.00 |
| 1,000+ | ₹58.33 | ₹58,330.00 |
1 × ₹96.92
₹96.92
excl. GST
₹114.37 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 25 per tube
LM3302N
₹96.92 for 1 + GST
Specifications
- Number of Channels
- Four channels
- Input Offset Current(Ios)
- 3nA
- Output Mode
- TTL;CMOS;MOS
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 25nA
- Output Type
- Open Collector
- Propagation Delay(tpd)
- 1.3us
- Quiescent Current(Iq)
- 800uA
- Vos - Input Offset Voltage
- 3mV
- Maximum Power Supply Range (Vdd-Vss)
- 28V
- Single Supply
- 2V~28V
- Response Time (tr)
- 1.3us;0.3us
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.733 g
Overview
This device consists of four independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible as long as the difference between the two supplies is 2 V to 28 V and VCC is at least 1.5 V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships.
Key features
- Single Supply or Dual Supplies
- Wide Range of Supply Voltage: 2 V to 28 V
- Low Supply-Current Drain Independent of Supply Voltage: 0.8 mA Typ
- Low Input Bias Current: 25 nA Typ
- Low Input Offset Current: 3 nA Typ
- Low Input Offset Voltage: 3 mV Typ
- Common-Mode Input Voltage Range Includes Ground
- Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: ±28 V
- Low Output Saturation Voltage
- Output Compatible With TTL, MOS, and CMOS
