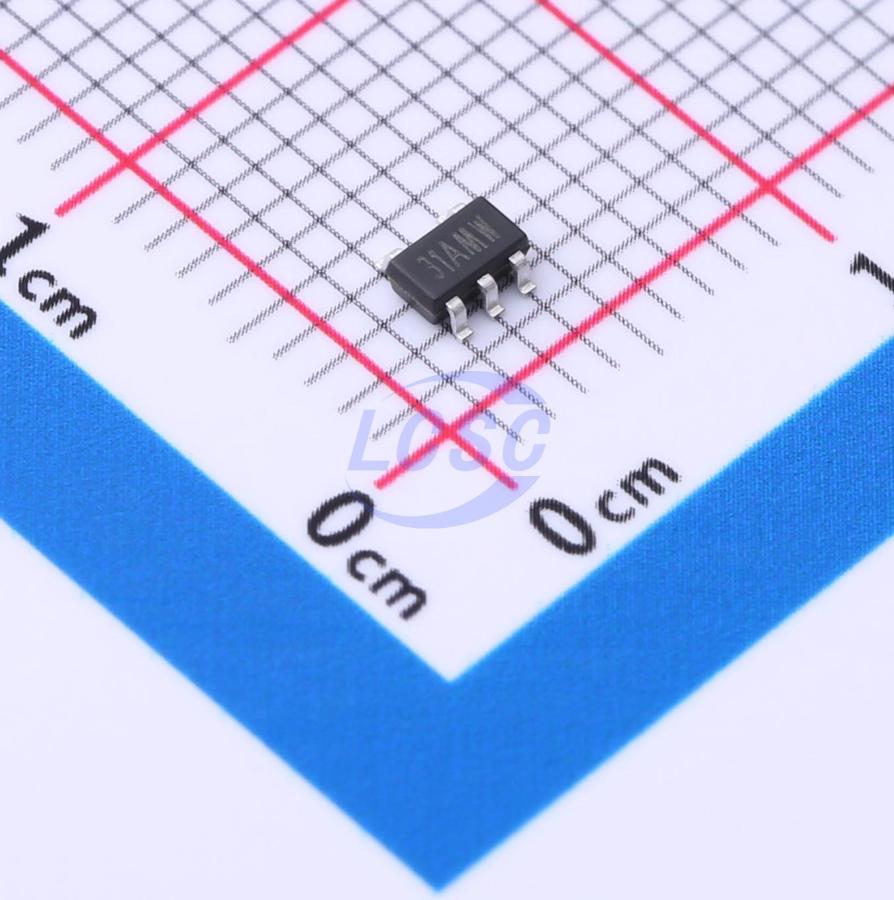

LM331A-S5TR

The devices in this series consist of single/ dual/ quad independent single- or dual- supply voltage comparators on a single monolithic substrate. The common- mode input voltage range includes ground even when operated from a single supply, and the low power supply current drain makes these comparators suitable for battery operation. These types are designed to directly interface with TTL and CMOS. Current drain is independent of the supply voltage. The outputs can be connected to other open- collector outputs to achieve wired- AND relationships. All devices are specified for the temperature range from - 40°C to 125°C.

Applications

• High- Speed Line or Digital Line Receivers
• High- Speed Sampling Circuits
• Peak and Zero- Crossing Detectors
• Threshold Detectors/Discriminators
• Sensing at Ground or Supply Line

Key features

• Wide Single- Supply Voltage Range or Dual Supplies: +2.5V to +36V or ±1.25V to ±18V
• Very Low Supply Current: 150μA pitch
• Low Input Bias Current: 1nA (Max)
• Low Offset Voltage: ±6.0mV (Max)
• Input Common- Mode Voltage Range Includes Ground
• Internal Differential Input Voltage Range Equal to The Supply Voltage
• Low Output Saturation
• Operating Temperature Range: - 40°C to 125°C
• ESD Rating: 4kV HBM, 2kV CDM
