HANSCHIP semiconductor

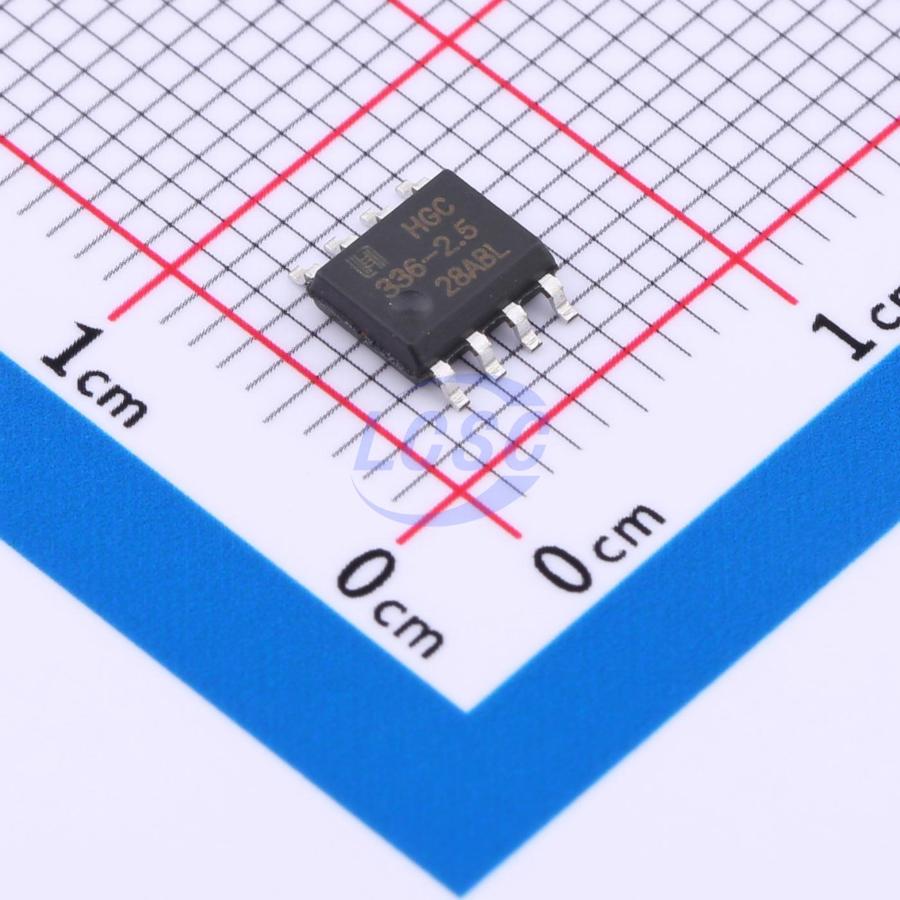

LM336D-2.5RG

2.5V ±1% 10mA Adjustable SOP-8 Voltage Reference RoHS

SOP-8ROHS CompliantActive

2.5V Voltage References

Manufacturer: HANSCHIP semiconductor
Manufacturer part #: LM336D-2.5RG
Store part #: C5145288
Package / case: SOP-8
Category: Voltage Reference
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,185 in stock

#C5145288

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹14.96	₹74.80
50+	₹11.84	₹592.00
150+	₹10.28	₹1,542.00
500+	₹9.10	₹4,550.00
2,500+	₹7.78	₹19,450.00
5,000+	₹7.30	₹36,500.00

Quantity (min 5, multiples of 5)

5 × ₹14.96

₹74.80

excl. GST

₹88.26 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM336D-2.5RG

₹74.80 for 5 + GST

Specifications

Output Voltage: 2.5V
Tolerance: ±1%
Minimum Cathode Current for Regulation: 600uA
Reference Type: Parallel
Output Current: 10mA
Operating Temperature: 0℃~+70℃
Output Type: Adjustable

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.2 g

Overview

The LM236 and LM336 are precision 2.5V voltage reference diodes. These voltage reference monolithic ICs operate similarly to 2.5V Zener diodes with low temperature coefficient and 0.2Ω dynamic impedance. A third pin is available for adjusting the reference voltage and temperature coefficient.
