HANSCHIP semiconductor

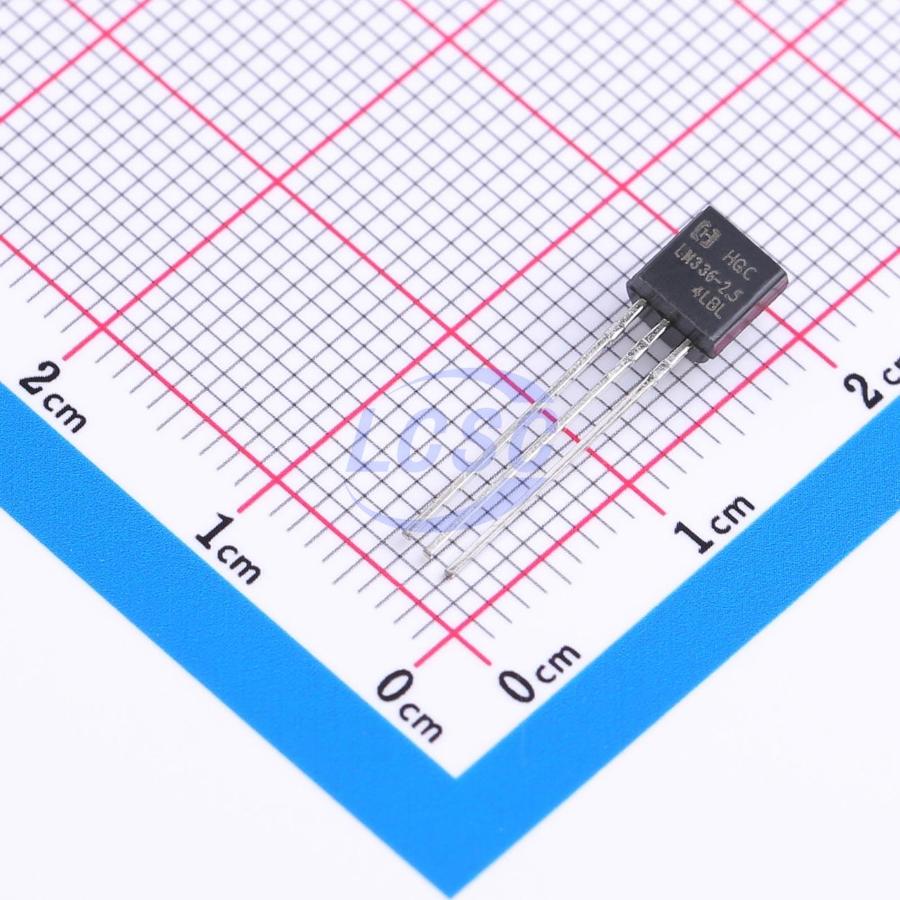

LM336LP-2.5G

2.5V ±1% 10mA Fixed TO-92 Voltage Reference RoHS

TO-92ROHS CompliantActive

reference monolithic ICs operate like 2.5V zener diodes

Manufacturer: HANSCHIP semiconductor
Manufacturer part #: LM336LP-2.5G
Store part #: C19723819
Package / case: TO-92
Category: Voltage Reference
Packaging: Bag-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,555 in stock

#C19723819

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹21.19	₹105.95
50+	₹16.64	₹832.00
150+	₹14.70	₹2,205.00
1,000+	₹12.26	₹12,260.00
2,000+	₹11.18	₹22,360.00
5,000+	₹10.53	₹52,650.00

Quantity (min 5, multiples of 5)

5 × ₹21.19

₹105.95

excl. GST

₹125.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per bag

LM336LP-2.5G

₹105.95 for 5 + GST

Specifications

Output Voltage: 2.5V
Tolerance: ±1%
Minimum Cathode Current for Regulation: 400uA
Reference Type: Parallel
Output Current: 10mA
Operating Temperature: 0℃~+70℃
Output Type: Fixed

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Bag-packed
Standard pack: 1,000 / Bag
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.199 g

Overview

The LM236 and LM336 are precision 2.5V voltage reference diodes. These voltage reference monolithic ICs operate similarly to 2.5V Zener diodes with low temperature coefficient and 0.2Ω dynamic impedance. A third pin is available for adjusting the reference voltage and temperature coefficient.
