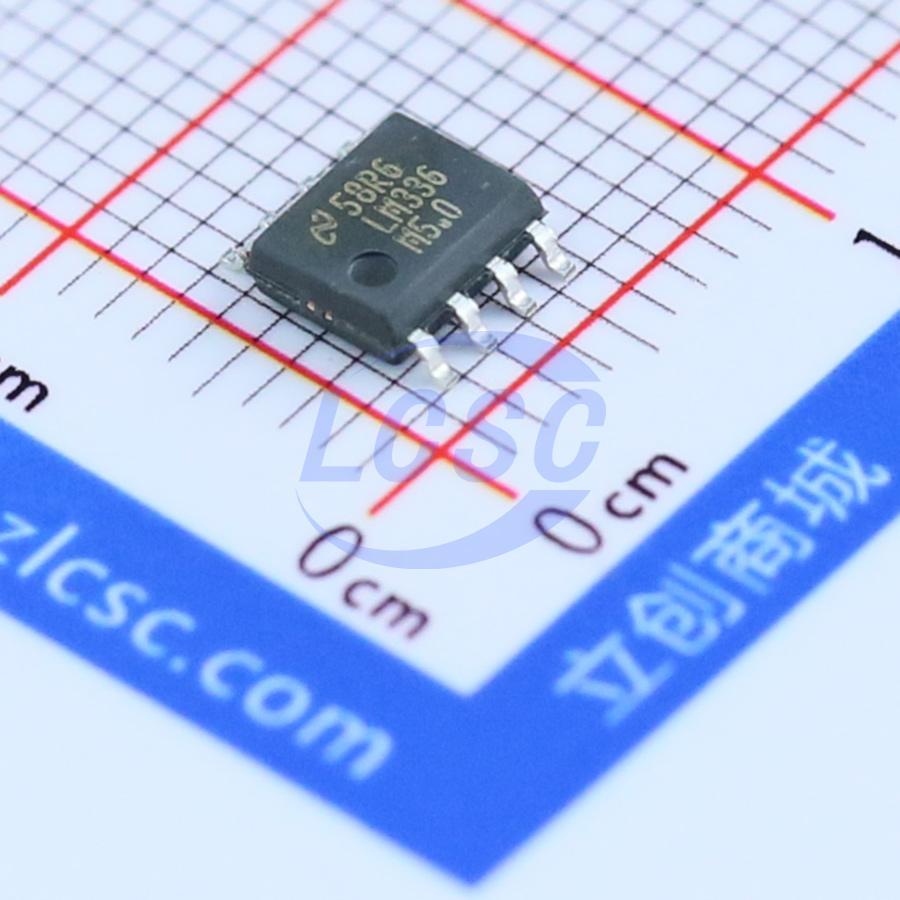

LM336MX-5.0/NOPB
5V ±2% 10mA Fixed SOIC-8 Voltage Reference RoHS
SOIC-8ROHS3 CompliantActive
5.0V Reference Diode
- Manufacturer
- TI
- Manufacturer part #
- LM336MX-5.0/NOPB
- Store part #
- C9407
- Package / case
- SOIC-8
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,072 in stock
#C9407
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹62.23 | ₹62.23 |
| 10+ | ₹49.84 | ₹498.40 |
| 30+ | ₹44.61 | ₹1,338.30 |
| 100+ | ₹37.86 | ₹3,786.00 |
| 500+ | ₹30.03 | ₹15,015.00 |
| 1,000+ | ₹28.30 | ₹28,300.00 |
1 × ₹62.23
₹62.23
excl. GST
₹73.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM336MX-5.0/NOPB
₹62.23 for 1 + GST
Specifications
- Output Voltage
- 5V
- Tolerance
- ±2%
- Minimum Cathode Current for Regulation
- 600uA
- Reference Type
- Parallel
- Output Current
- 10mA
- Operating Temperature
- 0℃~+70℃
- Features
- Temperature compensation control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.173 g
Overview
The LM136-5.0/LM236-5.0/LM336-5.0 integrated circuits are precision 5.0V shunt regulator diodes. These monolithic IC voltage references operate as a low temperature coefficient 5.0V zener with 0.6Ω dynamic impedance. A third terminal on the LM136- 5.0 allows the reference voltage and temperature coefficient to be trimmed easily. The LM136-5.0 series is useful as a precision 5.0V low voltage reference for digital voltmeters, power supplies or op amp circuitry. The 5.0V makes it convenient to obtain a stable reference from low voltage supplies. Further, since the LM136-5.0 operates as a shunt regulator, it can be used as either a positive or negative voltage reference. The LM136-5.0 is rated for operation over -55°C to +125°C while the LM236-5.0 is rated over a -25°C to +85°C temperature range. The LM336-5.0 is rated for operation over a 0°C to +70°C temperature range.
Key features
- Adjustable 4V to 6V
- Low Temperature Coefficient
- Wide Operating Current of 600μA to 10mA
- 0.6Ω Dynamic Impedance
- ±1% Initial Tolerance Available
- Specified Temperature Stability
- Easily Trimmed for Minimum Temperature Drift
- Fast Turn-on
- Three Lead Transistor Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM336D-5.0RG#C5145287HANSCHIP semiconductor · SOP-8 | HANSCHIP semiconductor | SOP-8 | 2,985 | ₹15.51 · 2,985 in stock | View |
 | XL336-5.0#C521161XINLUDA · SOP-8 | XINLUDA | SOP-8 | 735 | ₹19.46 · 735 in stock | View |
 | LM336M-5.0/TR#C910871HGSEMI · SOP-8 | HGSEMI | SOP-8 | 220 | ₹34.29 · 220 in stock | View |
