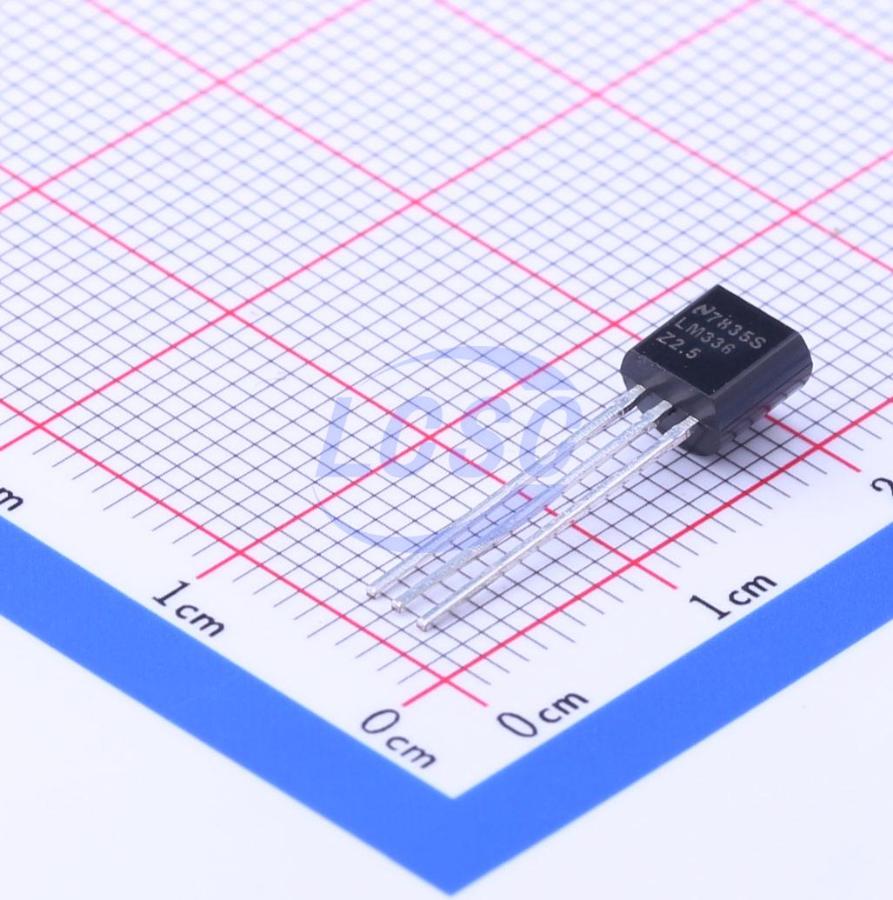

LM336Z-2.5/NOPB
2.49V ±1% 10mA Fixed TO-92 Voltage Reference RoHS
TO-92ROHS3 CompliantActive
Reference Diode
- Manufacturer
- TI
- Manufacturer part #
- LM336Z-2.5/NOPB
- Store part #
- C24846
- Package / case
- TO-92
- Category
- Voltage Reference
- Packaging
- Box-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,371 in stock
#C24846
Stock & price checked 15 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.97 | ₹64.97 |
| 10+ | ₹53.89 | ₹538.90 |
| 30+ | ₹49.11 | ₹1,473.30 |
| 100+ | ₹43.25 | ₹4,325.00 |
| 500+ | ₹39.77 | ₹19,885.00 |
| 1,000+ | ₹38.25 | ₹38,250.00 |
1 × ₹64.97
₹64.97
excl. GST
₹76.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,800 per box
LM336Z-2.5/NOPB
₹64.97 for 1 + GST
Specifications
- Output Voltage
- 2.49V
- Tolerance
- ±1%
- Minimum Cathode Current for Regulation
- 400uA
- Reference Type
- Parallel
- Output Current
- 10mA
- Operating Temperature
- 0℃~+70℃
- Features
- Temperature compensation control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Box-packed
- Standard pack
- 1,800 / Box
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.248 g
Overview
The LM136-2.5-N/LM236-2.5-N and LM336-2.5-N integrated circuits are precision 2.5V shunt regulator diodes. These monolithic IC voltage references operate as a low-temperature-coefficient 2.5V zener with 0.2Ω dynamic impedance. A third terminal on the LM136-2.5-N allows the reference voltage and temperature coefficient to be trimmed easily.
Key features
- Low Temperature Coefficient
- Wide Operating Current of 400μA to 10mA
- 0.2Ω Dynamic Impedance
- ±1% Initial Tolerance Available
- Specified Temperature Stability
- Easily Trimmed for Minimum Temperature Drift
- Fast Turn-On
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM336B-2.5#C38532043HTC · TO-92 | HTC | TO-92 | 430 | ₹29.38 · 430 in stock | View |
 | XT336-2.5#C521164XINLUDA · TO-92-3 | XINLUDA | TO-92-3 | 230 | ₹23.62 · 230 in stock | View |
 | LT1009CLP#C134009TI · TO-92-3 | TI | TO-92-3 | On request | ₹257.42 · 0 in stock | View |
 | LM336Z-2.5#C2987278HGSEMI · TO-92 | HGSEMI | TO-92 | 45 | ₹20.92 · 45 in stock | View |
