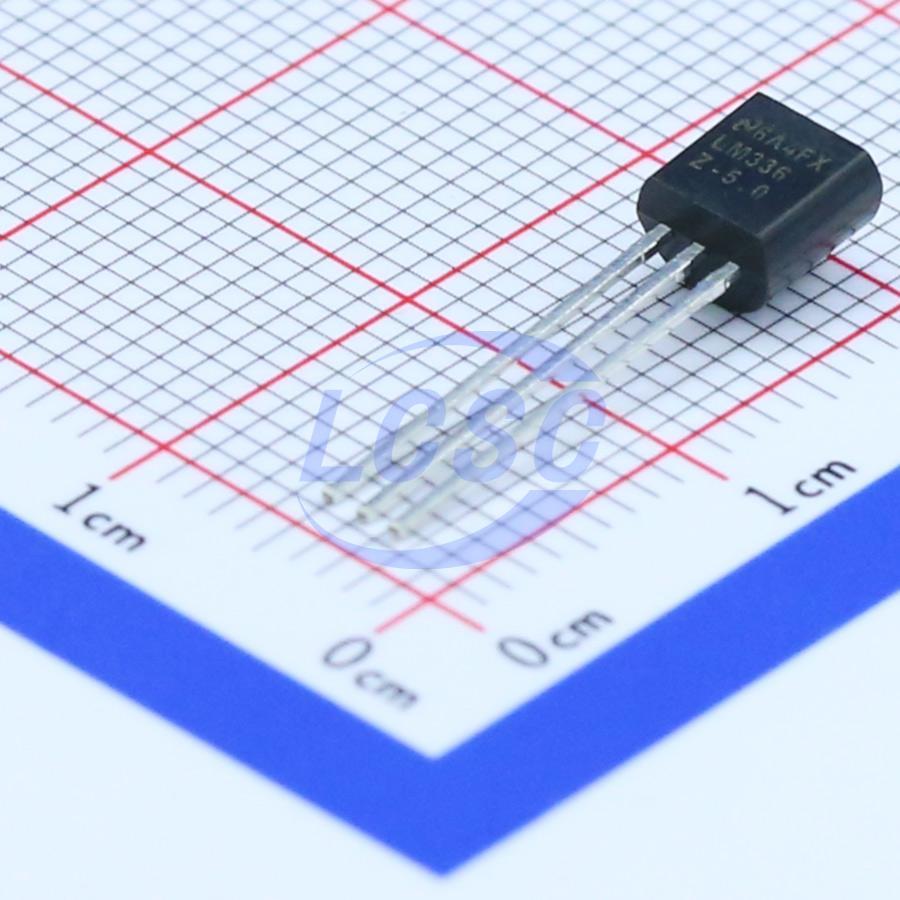

LM336Z-5.0/NOPB
5V ±1% 10mA Fixed TO-92-3 Voltage Reference RoHS
TO-92-3ROHS3 CompliantActive
5.0V Reference Diode
- Manufacturer
- TI
- Manufacturer part #
- LM336Z-5.0/NOPB
- Store part #
- C24847
- Package / case
- TO-92-3
- Category
- Voltage Reference
- Packaging
- Box-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,649 in stock
#C24847
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹76.65 | ₹76.65 |
| 10+ | ₹60.37 | ₹603.70 |
| 30+ | ₹53.42 | ₹1,602.60 |
| 100+ | ₹44.74 | ₹4,474.00 |
| 500+ | ₹38.45 | ₹19,225.00 |
| 1,000+ | ₹36.05 | ₹36,050.00 |
1 × ₹76.65
₹76.65
excl. GST
₹90.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,800 per box
LM336Z-5.0/NOPB
₹76.65 for 1 + GST
Specifications
- Output Voltage
- 5V
- Tolerance
- ±1%
- Minimum Cathode Current for Regulation
- 600uA
- Reference Type
- Parallel
- Output Current
- 10mA
- Operating Temperature
- 0℃~+70℃
- Features
- Temperature compensation control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Box-packed
- Standard pack
- 1,800 / Box
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.282 g
Overview
The LM136-5.0/LM236-5.0/LM336-5.0 integrated circuits are precision 5.0V shunt regulator diodes. These monolithic IC voltage references operate as a low temperature coefficient 5.0V zener with 0.6Ω dynamic impedance. A third terminal on the LM136-5.0 allows the reference voltage and temperature coefficient to be trimmed easily. The LM136-5.0 series is useful as a precision 5.0V low voltage reference for digital voltmeters, power supplies or op amp circuitry. The 5.0V makes it convenient to obtain a stable reference from low voltage supplies. Further, since the LM136-5.0 operates as a shunt regulator, it can be used as either a positive or negative voltage reference. The LM136-5.0 is rated for operation over -55°C to +125°C while the LM236-5.0 is rated over a -25°C to +85°C temperature range. The LM336-5.0 is rated for operation over a 0°C to +70°C temperature range.
Key features
- Adjustable 4V to 6V
- Low temperature coefficient
- Wide operating current of 600 μA to 10 mA
- 0.6Ω dynamic impedance
- ±1% initial tolerance available
- Guaranteed temperature stability
- Easily trimmed for minimum temperature drift
- Fast turn-on
- Three lead transistor package
