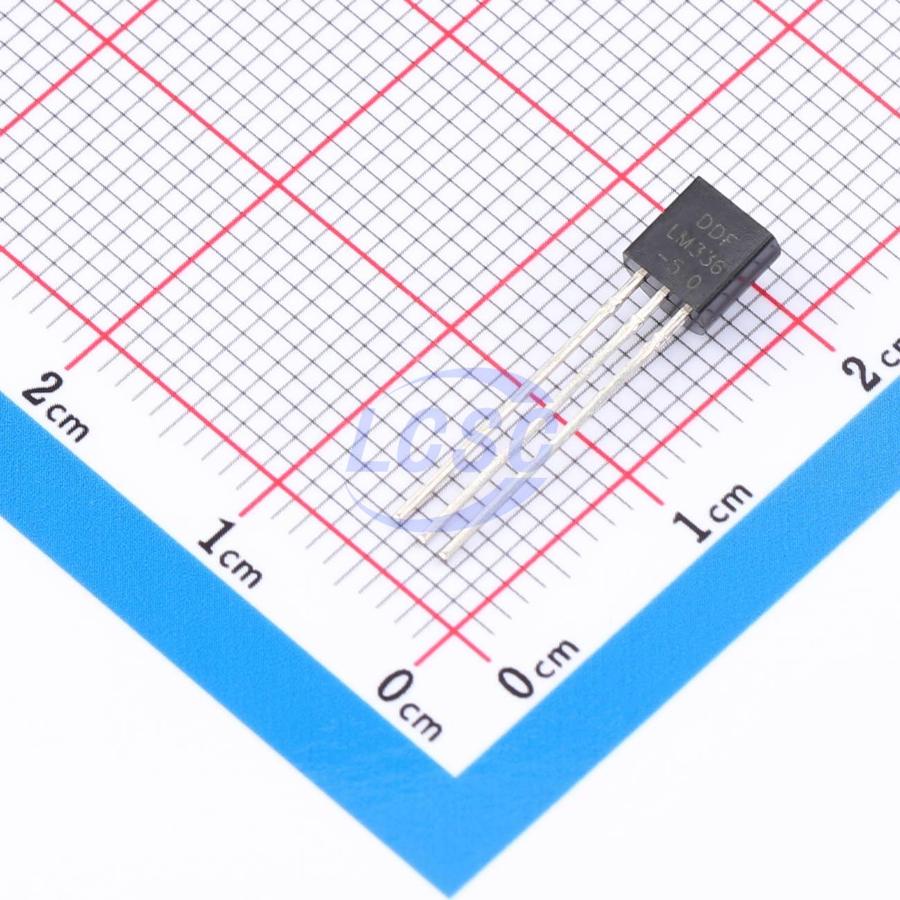

LM336Z-5.0-TO-92
5V ±1% Adjustable TO-92 Voltage Reference
TO-92RoHSActive
- Manufacturer
- DDF
- Manufacturer part #
- LM336Z-5.0-TO-92
- Store part #
- C50229489
- Package / case
- TO-92
- Category
- Voltage Reference
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,375 in stock
#C50229489
Stock & price checked 34 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.76 | ₹103.80 |
| 50+ | ₹16.21 | ₹810.50 |
| 150+ | ₹14.26 | ₹2,139.00 |
| 1,000+ | ₹11.83 | ₹11,830.00 |
| 2,000+ | ₹10.76 | ₹21,520.00 |
| 5,000+ | ₹10.11 | ₹50,550.00 |
5 × ₹20.76
₹103.80
excl. GST
₹122.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
LM336Z-5.0-TO-92
₹103.80 for 5 + GST
Specifications
- Output Voltage
- 5V
- Tolerance
- ±1%
- Minimum Cathode Current for Regulation
- 600uA
- Operating Temperature
- 0℃~+70℃
- Features
- Temperature compensation control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
LM236 and LM336 are precision 5.0V voltage reference diodes. These monolithic voltage reference ICs operate similarly to 5.0V Zener diodes, featuring low temperature drift and a dynamic impedance of 0.6Ω. A third pin is available for adjusting the reference voltage and temperature coefficient.
Applications
- 5.0V voltage reference
- 5.0V voltage reference with minimal temperature coefficient
- Voltage reference adjustable to 5.00V
- Trimmed 4V to 6V voltage reference
- Voltage reference with temperature coefficient independent of breakdown voltage
Key features
- Adjustable range 4V to 6V
- Low temperature coefficient
- Wide operating current range: 600 μA ~ 10 mA
- 0.6Ω dynamic impedance
- Initial tolerance ±1%
- Guaranteed temperature stability
- Easy trimming for minimum temperature drift
- Fast turn-on
- Three-terminal transistor package
