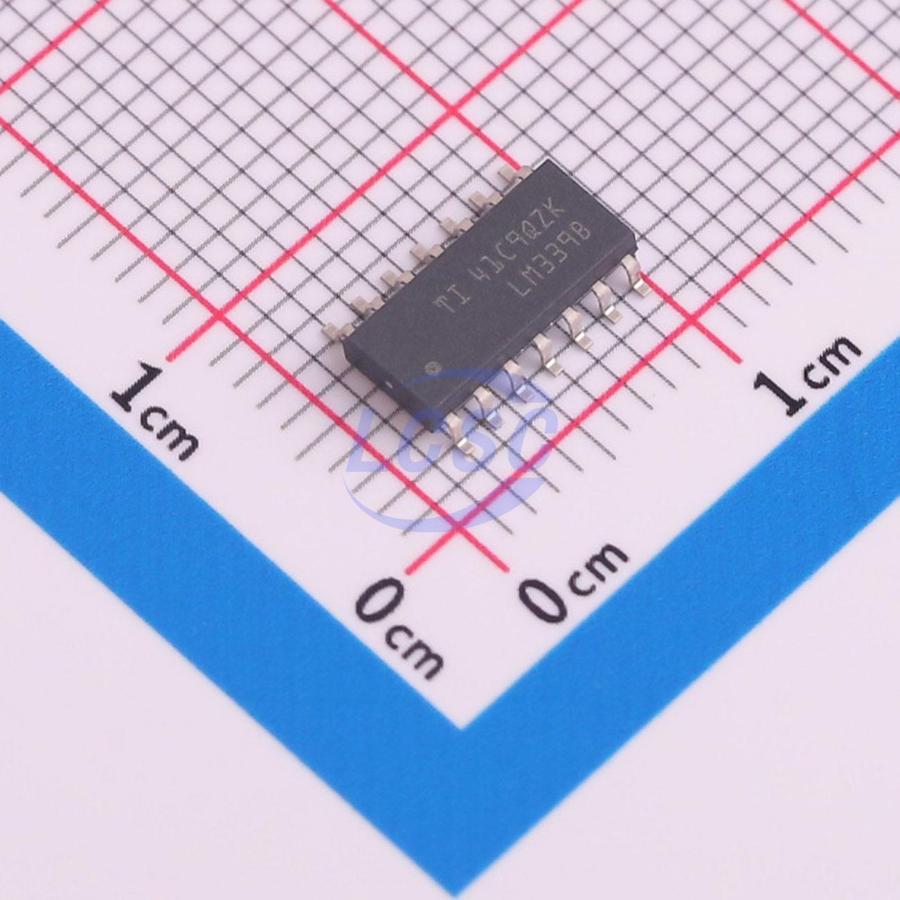

LM339BIDR

The LM339B and LM2901B devices are the next generation versions of the industry-standard LM339 and LM2901 comparator family. These next generation B-version comparators feature lower offset voltage, higher supply voltage capability, lower supply current, lower input bias current, lower propagation delay, and improved 2 kV ESD performance and input ruggedness through dedicated ESD clamps. The LM339B and LM2901B can drop-in replace the LM239, LM339 and LM2901, for both "A" and "V" grades. All devices consist of four independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages.

Applications

• Vacuum robot
• Single phase UPS
• Server PSU
• Cordless power tool
• Wireless infrastructure
• Applicances
• Building automation
• Factory automation & control
• Motor drives
• Infotainment & cluster

Key features

• NEW LM339B and LM2901B
• Improved specifications of B-version
• Maximum rating: up to 38 V
• ESD rating (HBM): 2k V
• Low input offset: 0.37 mV
• Low input bias current: 3.5 nA
• Low supply-current: 200 μA per comparator
• Faster response time of 1 µsec
• Extended temperature range for LM339B
• B-version is drop-in replacement for LM239, LM339 and LM2901, A and V versions
• Common-mode input voltage range includes ground
• Differential input voltage range equal to maximum rated supply voltage: ±38 V
• Low output saturation voltage
• Output compatible with TTL, MOS, and CMOS
