UMWDatasheet (PDF)

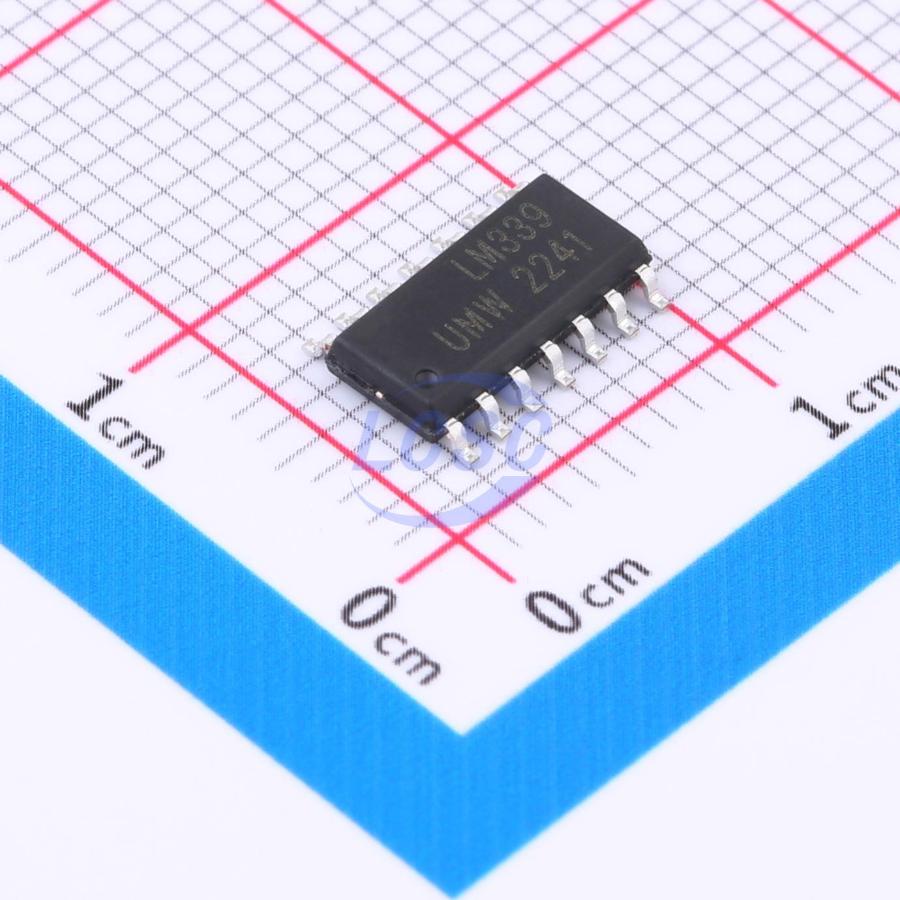

LM339DR
Four channels 800uA 2mV SOP-14 Comparators RoHS
SOP-14ROHS3 CompliantActive
- Manufacturer
- UMW
- Manufacturer part #
- LM339DR
- Store part #
- C5236695
- Package / case
- SOP-14
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
26,280 in stock
#C5236695
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹12.58 | ₹125.80 |
| 100+ | ₹9.88 | ₹988.00 |
| 300+ | ₹8.53 | ₹2,559.00 |
| 1,000+ | ₹7.51 | ₹7,510.00 |
| 5,000+ | ₹5.82 | ₹29,100.00 |
| 10,000+ | ₹5.41 | ₹54,100.00 |
10 × ₹12.58
₹125.80
excl. GST
₹148.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM339DR
₹125.80 for 10 + GST
Specifications
- Number of Channels
- Four channels
- Input Offset Current(Ios)
- 5nA
- Output Mode
- TTL;CMOS
- Operating Temperature
- 0℃~+70℃
- Dual Supply
- 1V~18V;-18V~-1V
- Ib - Input Bias Current
- 25nA
- Propagation Delay(tpd)
- 300ns
- Quiescent Current(Iq)
- 800uA
- Vos - Input Offset Voltage
- 2mV
- Maximum Power Supply Range (Vdd-Vss)
- 36V
- Single Supply
- 2V~36V
- Response Time (tr)
- 1.3us
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.26 g
Overview
Key features
- Wide supply voltage range
- Single supply: 2V to 36V (non-V suffix devices tested to 30V, V suffix devices tested to 32V)
- Dual supply: ±1V to ±18V (non-V suffix devices tested to ±15V, V suffix devices tested to ±16V)
- Low supply current drain, independent of supply voltage: 0.8mA (typical)
- Low input bias current: 25nA (typical)
- Low input offset current: 3nA (typical) (LM139)
- Low input offset voltage: 2mV (typical)
- Common-mode input voltage range includes ground
- Differential input voltage range equal to maximum rated supply voltage: ±36V
- Low output saturation voltage
- Output compatible with TTL, MOS, and CMOS
