onsemiDatasheet (PDF)

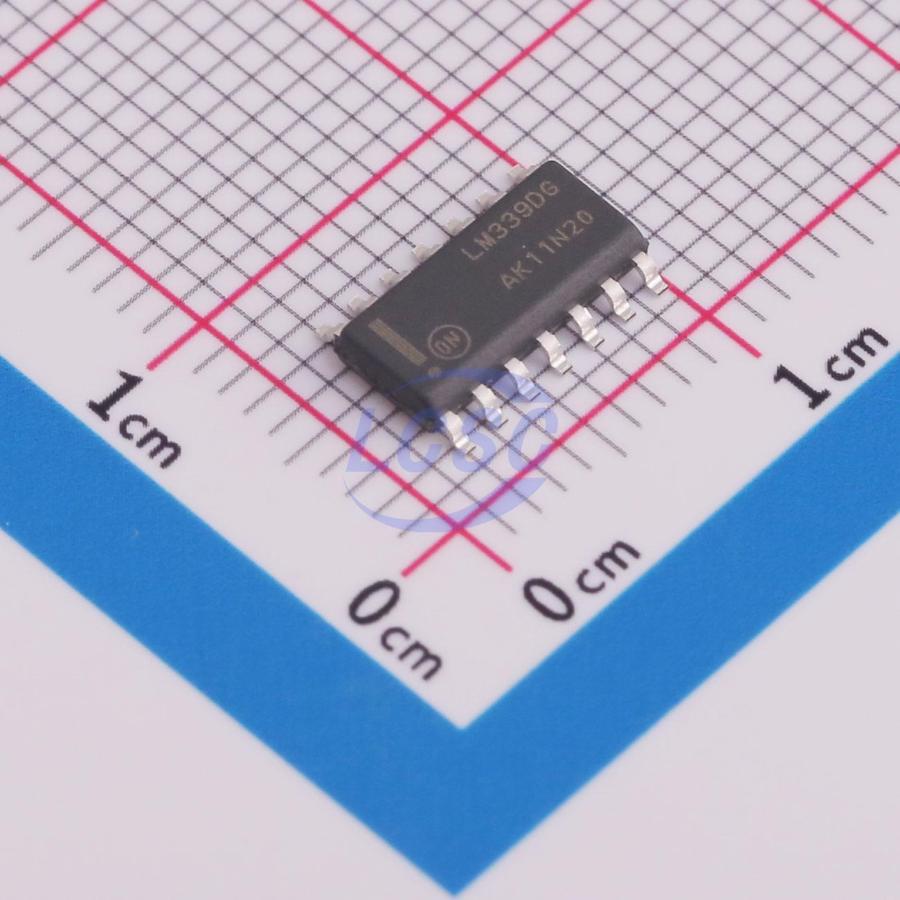

LM339DR2G
Four channels 800uA 2mV SOIC-14 Comparators RoHS
SOIC-14ROHS3 CompliantActive
Single Supply Quad comparators
- Manufacturer
- onsemi
- Manufacturer part #
- LM339DR2G
- Store part #
- C63821
- Package / case
- SOIC-14
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
52,335 in stock
#C63821
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.90 | ₹109.50 |
| 50+ | ₹16.97 | ₹848.50 |
| 150+ | ₹14.87 | ₹2,230.50 |
| 500+ | ₹12.24 | ₹6,120.00 |
| 2,500+ | ₹11.06 | ₹27,650.00 |
| 5,000+ | ₹10.36 | ₹51,800.00 |
5 × ₹21.90
₹109.50
excl. GST
₹129.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM339DR2G
₹109.50 for 5 + GST
Specifications
- Number of Channels
- Four channels
- Input Offset Current(Ios)
- 5nA
- Output Mode
- TTL;CMOS
- Operating Temperature
- 0℃~+70℃
- Features
- ESD protection
- Dual Supply
- 1.5V~18V;-18V~-1.5V
- Ib - Input Bias Current
- 25nA
- Propagation Delay(tpd)
- 300ns
- Quiescent Current(Iq)
- 800uA
- Vos - Input Offset Voltage
- 2mV
- Maximum Power Supply Range (Vdd-Vss)
- 36V
- Single Supply
- 3V~36V
- Response Time (tr)
- 1.3us
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.366 g
Overview
These comparators are designed for use in level detection, low−level sensing and memory applications in consumer, automotive, and industrial electronic applications.
Key features
- Single Supply Operation: 3.0 V to 36 V
- Split Supply Operation: ±1.5 V to ±18 V
- Low Input Bias Current: 25 nA (Typ)
- Low Input Offset Current: ±5.0 nA (Typ)
- Low Input Offset Voltage
- Input Common Mode Voltage Range to GND
- Low Output Saturation Voltage: 130 mV (Typ) @4.0 mA
- TTL and CMOS Compatible
- ESD Clamps on the Inputs Increase Reliability without Affecting Device Operation
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LP339MX/NOPB#C2867764TI · SOIC-14 | TI | SOIC-14 | 45 | ₹86.79 · 45 in stock | View |
 | LM339-HXY#C18198379HXY MOSFET · SOP-14 | HXY MOSFET | SOP-14 | 2,200 | ₹11.81 · 2,200 in stock | View |
 | LM339DTR(XBLW)#C19267475XBLW · SOP-14 | XBLW | SOP-14 | 2,100 | ₹11.44 · 2,100 in stock | View |
 | LM339SR#C25503984COSINE · SOP-14 | COSINE | SOP-14 | 4,000 | ₹12.82 · 4,000 in stock | View |
 | LM339DR235#C51026327GREENMICRO · SOP-14 | GREENMICRO | SOP-14 | 270 | ₹7.62 · 270 in stock | View |
