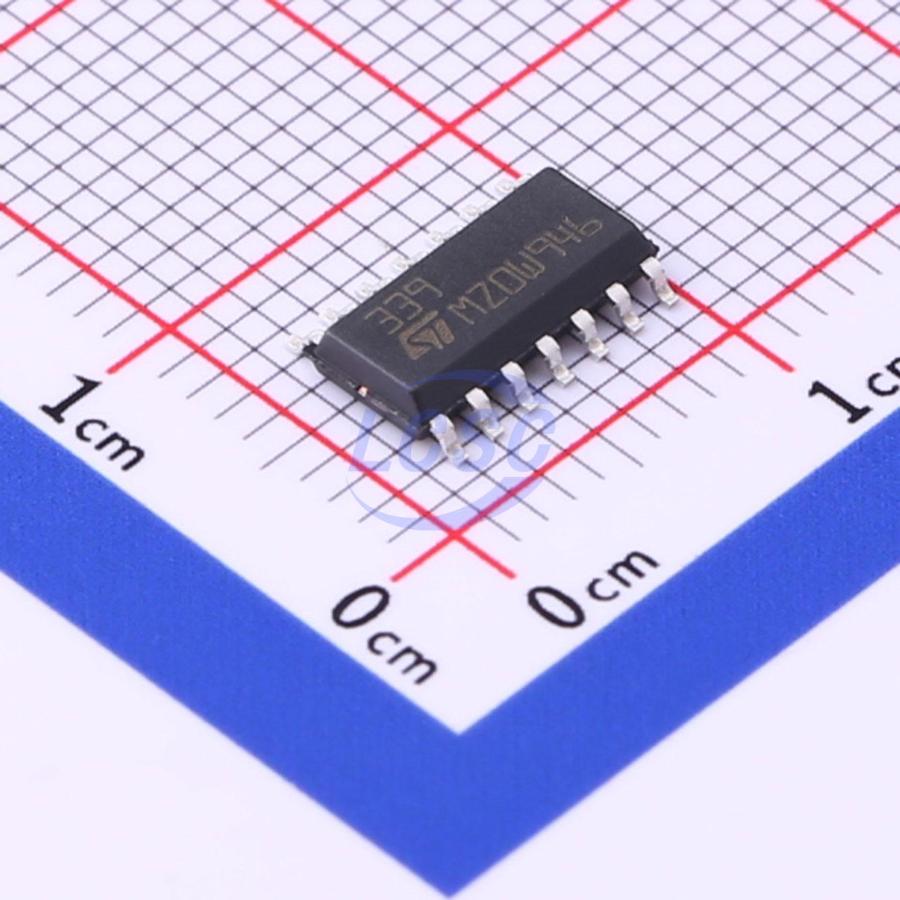

LM339DT
Four channels 1.1mA 1mV SOIC-14 Comparators RoHS
Low-power quad voltage comparators
- Manufacturer
- ST
- Manufacturer part #
- LM339DT
- Store part #
- C71036
- Package / case
- SOIC-14
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
39,870 in stock
#C71036
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.55 | ₹107.75 |
| 50+ | ₹16.80 | ₹840.00 |
| 150+ | ₹14.76 | ₹2,214.00 |
| 500+ | ₹12.21 | ₹6,105.00 |
| 2,500+ | ₹11.09 | ₹27,725.00 |
| 5,000+ | ₹10.40 | ₹52,000.00 |
5 × ₹21.55
₹107.75
excl. GST
₹127.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM339DT
₹107.75 for 5 + GST
Specifications
- Number of Channels
- Four channels
- Input Offset Current(Ios)
- 5nA
- Output Mode
- TTL;DTL;ECL;MOS;CMOS
- Operating Temperature
- 0℃~+70℃
- Dual Supply
- 1V~18V
- Ib - Input Bias Current
- 25nA
- Propagation Delay(tpd)
- 1.3us
- Quiescent Current(Iq)
- 1.1mA
- Vos - Input Offset Voltage
- 1mV
- Maximum Power Supply Range (Vdd-Vss)
- 36V
- Single Supply
- 2V~36V
- Response Time (tr)
- 1.3us
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.331 g
Overview
This family of devices consists of four independent precision-voltage comparators with an offset voltage specification as low as 2 mV maximum for LM339A, LM239A, and LM139A. Each comparator has been designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible. These comparators also have a unique characteristic in that the input common mode voltage range includes ground even though operated from a single power supply voltage.
Key features
- Wide single supply voltage range or dual supplies for all devices: +2 to +36 V or ±1 V to ±18 V
- Very low supply current (1.1 mA) independent of supply voltage
- Low input bias current: 25 nA typ
- Low input offset current: ±5 nA typ
- Low input offset voltage: ±1 mV typ
- Input common-mode voltage range includes ground
- Low output saturation voltage: 250 mV typ; (I_SINK = 4 mA)
- Differential input voltage range equal to the supply voltage
- TTL, DTL, ECL, MOS, CMOS compatible outputs
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM339-HXY#C18198379HXY MOSFET · SOP-14 | HXY MOSFET | SOP-14 | 2,200 | ₹11.81 · 2,200 in stock | View |
 | LM339DTR(XBLW)#C19267475XBLW · SOP-14 | XBLW | SOP-14 | 2,100 | ₹11.44 · 2,100 in stock | View |
 | LM339DRG#C19723731HANSCHIP semiconductor · SOP-14 | HANSCHIP semiconductor | SOP-14 | 1,800 | ₹8.80 · 1,800 in stock | View |
 | LM339SR#C25503984COSINE · SOP-14 | COSINE | SOP-14 | 4,000 | ₹12.82 · 4,000 in stock | View |
 | LM339DR235#C51026327GREENMICRO · SOP-14 | GREENMICRO | SOP-14 | 270 | ₹7.62 · 270 in stock | View |
