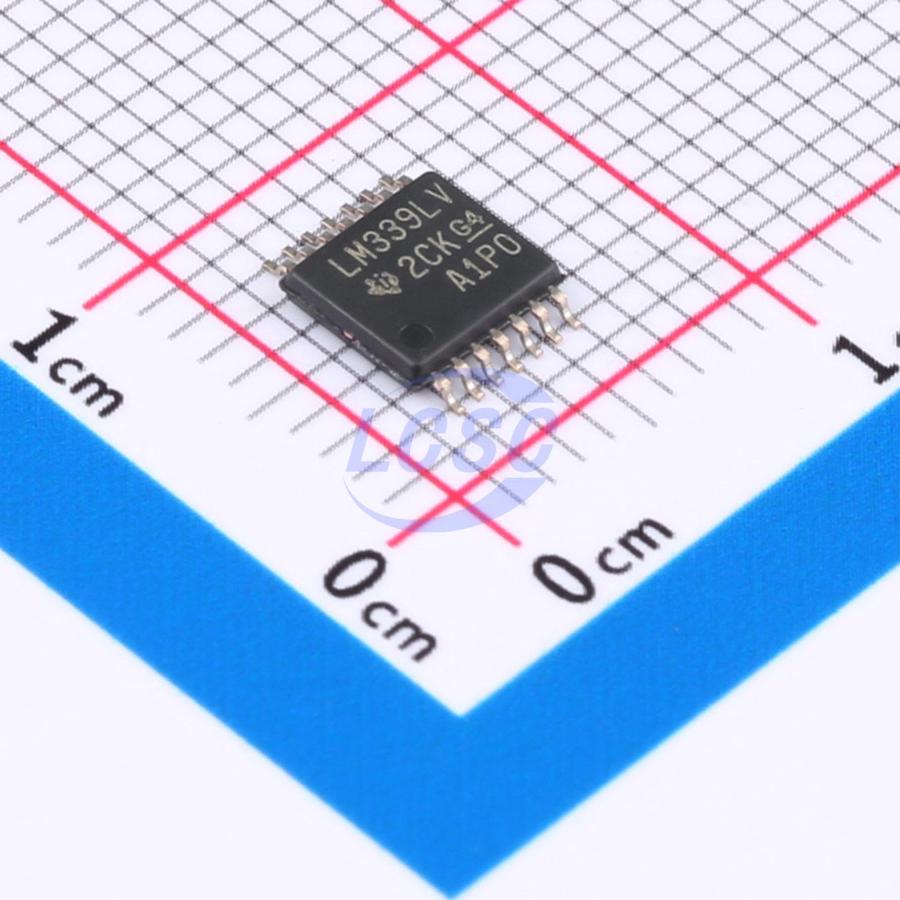

LM339LVPWR
Four channels 25uA 400uV Rail-to-rail input TSSOP-14 Comparators RoHS
Dual and Quad Low Voltage, Rail-to-Rail Comparators
- Manufacturer
- TI
- Manufacturer part #
- LM339LVPWR
- Store part #
- C3658338
- Package / case
- TSSOP-14
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,995 in stock
#C3658338
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.43 | ₹177.15 |
| 50+ | ₹28.35 | ₹1,417.50 |
| 150+ | ₹24.91 | ₹3,736.50 |
| 500+ | ₹21.83 | ₹10,915.00 |
| 2,000+ | ₹20.98 | ₹41,960.00 |
| 4,000+ | ₹20.48 | ₹81,920.00 |
5 × ₹35.43
₹177.15
excl. GST
₹209.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
LM339LVPWR
₹177.15 for 5 + GST
Specifications
- Number of Channels
- Four channels
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Features
- ESD protection
- Ib - Input Bias Current
- 5pA
- Input Offset Voltage Drift(Vos TC)
- 1.5uV/℃
- Output Type
- Open-drain
- Propagation Delay(tpd)
- 600ns
- Common Mode Rejection Ratio(CMRR)
- 65dB
- Quiescent Current(Iq)
- 25uA
- Vos - Input Offset Voltage
- 400uV
- Rail to Rail
- Rail-to-rail input
- Single Supply
- 1.65V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.103 g
Overview
The LV device family consists of two (LM393LV), or four (LM339LV), independent voltage comparators that are designed to operate from a wide range of supply voltages. The LV devices can drop-in replace the standard LM2xx, LM3xx and LM290x comparator family in low voltage (≤5V) applications for improved performance and added features. The LV devices include a Power On Reset (POR) feature that ensures the output is in a High-Z state until the minimum supply voltage has been reached. This prevents output transients during system powerup and power-down. These comparators also feature Rail to Rail inputs and no output phase inversion with inputs that can go up to 6V without damage. This makes this family of comparators well suited for precision voltage monitoring in harsh, noisy environments. The LV devices are specified for the temperature range of -40℃ to +125℃, which covers the temperature ranges of all the LM2xx, LM3xx and LM290x comparator families.
Applications
- Vacuum robot
- Single phase UPS
- Server PSU
- Cordless power tool
- Wireless Infrastructure
- Applicances
- Building Automation
- Factory automation & control
- Motor drives
- Infotainment & cluster
Key features
- 1.65 V to 5.5 V Supply range
- Rail-to-Rail input with Failsafe
- Low input offset voltage 400 μv Typ
- 600ns Typ propagation delay
- Low quiescent current 25 μA/Ch Typ
- Low input bias current 5 pA Typ
- Open-drain output
- Full -40℃ to +125℃ temperature range
- Power-On Reset (POR) for known start-up
- 2 kV ESD protection
- Improved replacement for LM393 & LM339 family for VCC ≤5 V
