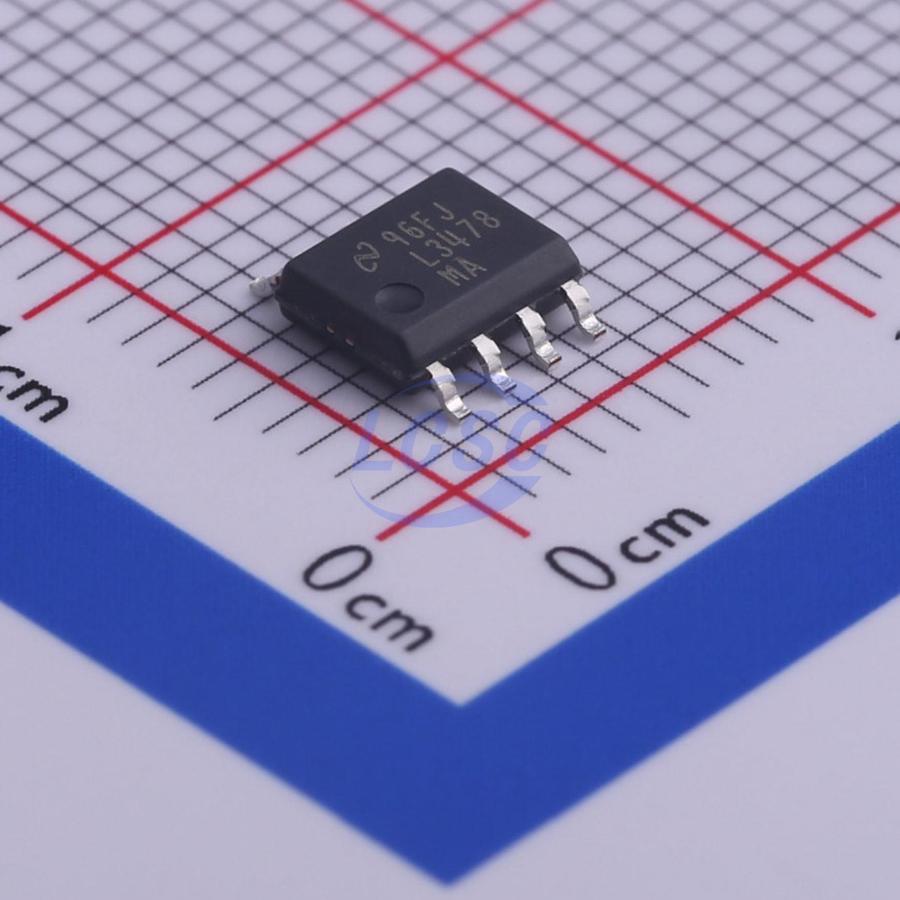

LM3478MAX/NOPB
1 Adjustable Boost SOIC-8 DC DC Switching Controllers RoHS
High-Efficiency Low-Side N-Channel Controller
- Manufacturer
- TI
- Manufacturer part #
- LM3478MAX/NOPB
- Store part #
- C115907
- Package / case
- SOIC-8
- Category
- DC DC Switching Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,788 in stock
#C115907
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹158.88 | ₹158.88 |
| 10+ | ₹131.07 | ₹1,310.70 |
| 30+ | ₹117.15 | ₹3,514.50 |
| 100+ | ₹103.25 | ₹10,325.00 |
| 500+ | ₹85.64 | ₹42,820.00 |
| 1,000+ | ₹81.30 | ₹81,300.00 |
1 × ₹158.88
₹158.88
excl. GST
₹187.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM3478MAX/NOPB
₹158.88 for 1 + GST
Specifications
- Synchronous Rectifier
- No
- Features
- Adjustable current limiting;Cycle-by-cycle current limiting;Overcurrent Protection;Built-in LDO regulator
- Number of Channels
- 1
- Topology
- Boost;SEPIC;Flyback
- Operating Voltage
- 2.97V~40V
- Switch tube (built-in/external)
- External
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 1MHz
- Output Type
- Adjustable
- Function
- Boost
- Quiescent Current
- 2.7mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.18 g
Overview
The LM3478 is a versatile Low-Side N-Channel MOSFET controller for switching regulators. It is suitable for use in topologies requiring a low side MOSFET, such as boost, flyback, SEPIC, etc. Moreover, the LM3478 can be operated at extremely high switching frequency in order to reduce the overall solution size. The switching frequency of the LM3478 can be adjusted to any value between 100 kHz and 1 MHz by using a single external resistor. Current mode control provides superior bandwidth and transient response, besides cycle-by-cycle current limiting. Output current can be programmed with a single external resistor. The LM3478 has built-in features such as thermal shutdown, short-circuit protection, over voltage protection, etc. Power saving shutdown mode reduces the total supply current to 5 μA and allows power supply sequencing. Internal soft-start limits the inrush current at start-up.
Applications
- Distributed Power Systems
- Battery Chargers
- Offline Power Supplies
- Telecom Power Supplies
- Automotive Power Systems
Key features
- 8-lead VSSOP-8 and SOIC-8 packages
- Internal Push-Pull Driver With 1-A Peak Current Capability
- Current Limit and Thermal Shutdown
- Frequency Compensation Optimized With a Capacitor and a Resistor
- Internal Soft Start
- Current Mode Operation
- Undervoltage Lockout With Hysteresis
- Create a Custom Design Using the LM3478 with the WEBENCH Power Designer
