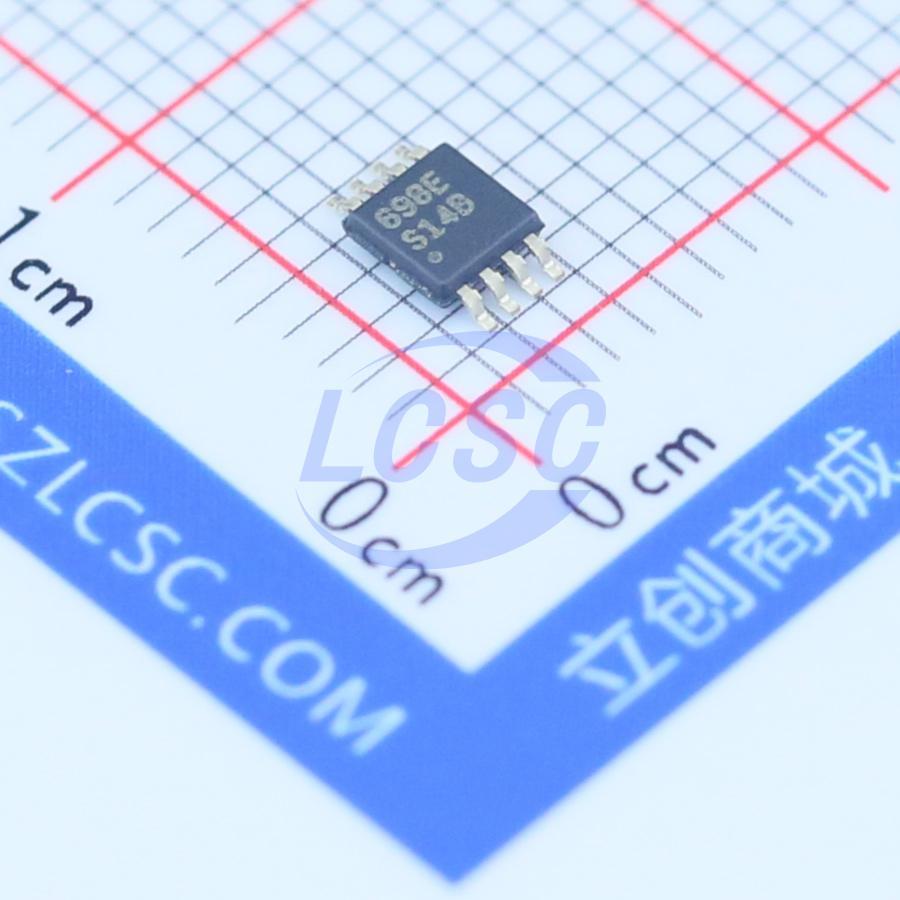

LM3478MM/NOPB
1 Adjustable Boost VSSOP-8-0.65mm DC DC Switching Controllers RoHS
High-Efficiency Low-Side N-Channel Controller for Switching Regulator
- Manufacturer
- TI
- Manufacturer part #
- LM3478MM/NOPB
- Store part #
- C9404
- Package / case
- VSSOP-8-0.65mm
- Category
- DC DC Switching Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,663 in stock
#C9404
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹176.94 | ₹176.94 |
| 10+ | ₹141.76 | ₹1,417.60 |
| 30+ | ₹124.18 | ₹3,725.40 |
| 100+ | ₹96.18 | ₹9,618.00 |
| 500+ | ₹85.76 | ₹42,880.00 |
| 1,000+ | ₹80.33 | ₹80,330.00 |
1 × ₹176.94
₹176.94
excl. GST
₹208.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LM3478MM/NOPB
₹176.94 for 1 + GST
Specifications
- Synchronous Rectifier
- No
- Operating Temperature
- -40℃~+125℃@(TJ)
- Features
- Adjustable current limiting;Cycle-by-cycle current limiting;Overcurrent Protection;Built-in LDO regulator
- Number of Channels
- 1
- Topology
- Boost;Flyback;SEPIC
- Frequency - Switching
- 100kHz~1MHz
- Operating Voltage
- 2.97V~40V
- Output Type
- Adjustable
- Switch tube (built-in/external)
- External
- Function
- Boost
- Quiescent Current
- 2.7mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.136 g
Overview
The LM3478 is a versatile Low-Side N-Channel MOSFET controller for switching regulators. It is suitable for use in topologies requiring a low side MOSFET, such as boost, flyback, SEPIC, etc. Moreover, the LM3478 can be operated at extremely high switching frequency in order to reduce the overall solution size. The switching frequency of the LM3478 can be adjusted to any value between 100kHz and 1MHz by using a single external resistor. Current mode control provides superior bandwidth and transient response, besides cycle-by-cycle current limiting. Output current can be programmed with a single external resistor. The LM3478 has built in features such as thermal shutdown, short-circuit protection, over voltage protection, etc. Power saving shutdown mode reduces the total supply current to 5μA and allows power supply sequencing. Internal soft-start limits the inrush current at start-up.
Applications
- Distributed Power Systems
- Battery Chargers
- Offline Power Supplies
- Telecom Power Supplies
- Automotive Power Systems
Key features
- LM3478Q in VSSOP-8 package is AEC-Q100 qualified and manufactured on an Automotive Grade Flow
- 8-lead VSSOP-8 and SOIC-8 packages
- Internal push-pull driver with 1A peak current capability
- Current limit and thermal shutdown
- Frequency compensation optimized with a capacitor and a resistor
- Internal soft start
- Current Mode Operation
- Undervoltage Lockout with hysteresis
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM3478MMX/NOPB#C404045TI · VSSOP-8-0.65mm | TI | VSSOP-8-0.65mm | 27,161 | ₹141.46 · 27,161 in stock | View |
