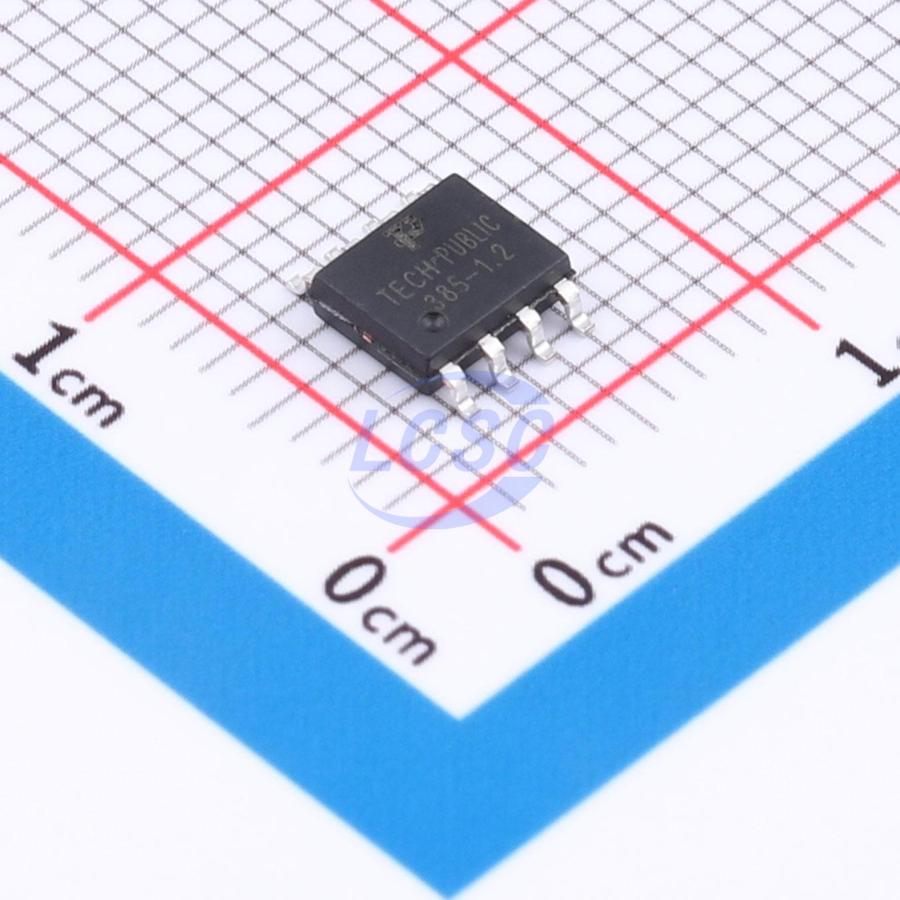

LM385BDR-1-2
1.24V ±0.3% Fixed SOP-8 Voltage Reference
SOP-8RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- LM385BDR-1-2
- Store part #
- C51886177
- Package / case
- SOP-8
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,425 in stock
#C51886177
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.03 | ₹80.15 |
| 50+ | ₹12.58 | ₹629.00 |
| 150+ | ₹10.86 | ₹1,629.00 |
| 500+ | ₹9.57 | ₹4,785.00 |
| 3,000+ | ₹8.53 | ₹25,590.00 |
| 6,000+ | ₹8.02 | ₹48,120.00 |
5 × ₹16.03
₹80.15
excl. GST
₹94.58 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM385BDR-1-2
₹80.15 for 5 + GST
Specifications
- Quiescent Current
- 25uA
- Output Voltage
- 1.24V
- Tolerance
- ±0.3%
- Minimum Cathode Current for Regulation
- 25uA
- Reference Type
- Parallel
- Operating Temperature
- -40℃~+125℃
- Noise - 10Hz to 10kHz
- 60uVrms
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.182 g
Overview
This is a versatile, easy-to-use shunt voltage reference suitable for a wide range of applications. The pin-fixed output device requires no external capacitors and maintains stable operation with all capacitive loads. Additionally, this reference features low dynamic impedance, low noise, and low temperature drift, ensuring stable output voltage across a wide operating current and temperature range. The SOP-8 package saves board space. A typical minimum operating current of 25μA makes it an ideal choice for portable applications. It is rated for an operating temperature range of -40°C to +125°C.
Applications
- Battery-powered devices
- Data acquisition systems
- Precision audio components
- Instrumentation
- Process control
- Energy management
- Product testing
Key features
- Low output noise
- No output capacitor required
- Capacitive load tolerant
- Low temperature drift: typical 4mV
- Maximum temperature coefficient 100 ppm/°C
- Fixed reverse breakdown voltage 1.24V
- Output voltage tolerance ±0.3%
- SOP-8 package
