TECH PUBLICDatasheet (PDF)

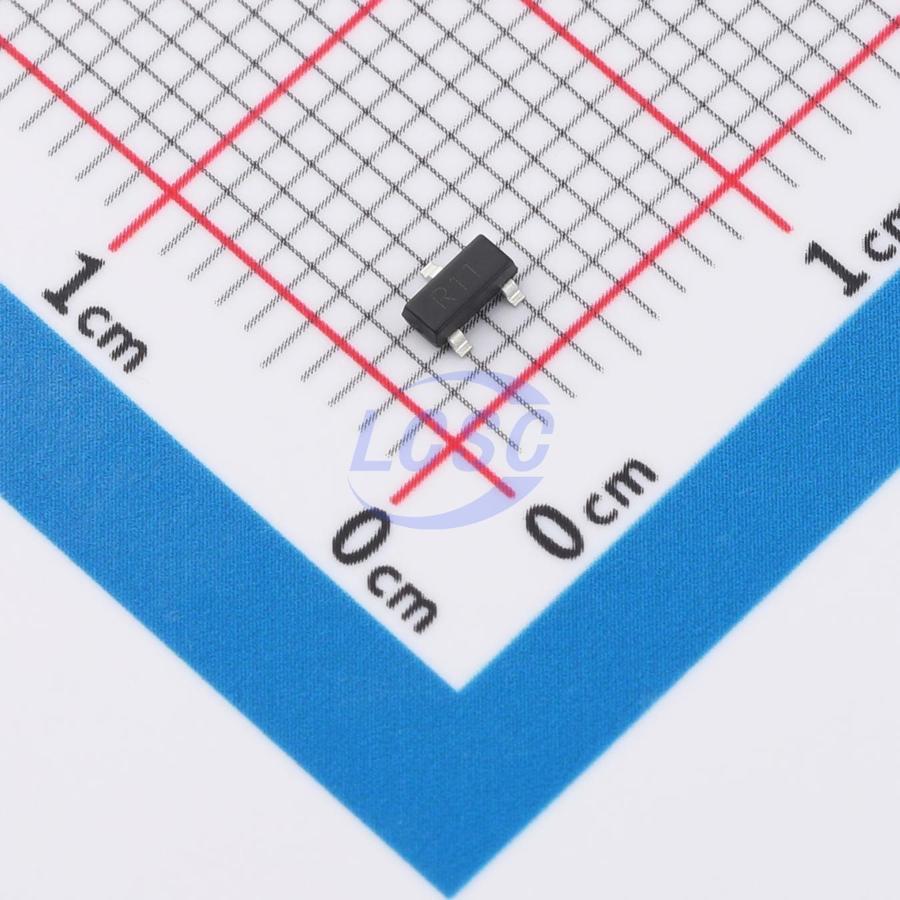

LM385M3X-1.2-TP
1.2V ±0.3% Fixed SOT-23 Voltage Reference RoHS
SOT-23ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- LM385M3X-1.2-TP
- Store part #
- C49333161
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,695 in stock
#C49333161
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.07 | ₹90.35 |
| 50+ | ₹14.29 | ₹714.50 |
| 150+ | ₹12.40 | ₹1,860.00 |
| 500+ | ₹10.98 | ₹5,490.00 |
| 3,000+ | ₹9.84 | ₹29,520.00 |
| 6,000+ | ₹9.27 | ₹55,620.00 |
5 × ₹18.07
₹90.35
excl. GST
₹106.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM385M3X-1.2-TP
₹90.35 for 5 + GST
Specifications
- Output Voltage
- 1.2V
- Quiescent Current
- 25uA
- Tolerance
- ±0.3%
- Minimum Cathode Current for Regulation
- 25uA
- Reference Type
- Parallel
- Operating Temperature
- -40℃~+125℃
- Noise - 10Hz to 10kHz
- 35uVrms
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
This is a versatile, easy-to-use shunt voltage reference suitable for a wide range of applications. The fixed-pin-output device requires no external capacitors and operates stably under all capacitive loads. In addition, the reference features low dynamic impedance, low noise, and a low temperature coefficient, ensuring stable output voltage across a wide operating current and temperature range. It comes in a space-saving SOT23 package. With a minimum operating current of 25μA (typical), it is ideal for portable applications. The rated operating temperature range is -40°C ~ +125°C.
Applications
- Battery-powered devices
- Data acquisition systems
- Precision audio components
- Instrumentation
- Process control
- Energy management
- Product testing
Key features
- Low output noise
- No output capacitor required
- Capacitive load tolerant
- Low tempco drift: 4mV (typ)
- Maximum temperature coefficient: 100ppm/°C
- Fixed reverse breakdown voltage: 1.24V
- Output voltage tolerance: ±0.3%
- SOT23 package
