TECH PUBLICDatasheet (PDF)

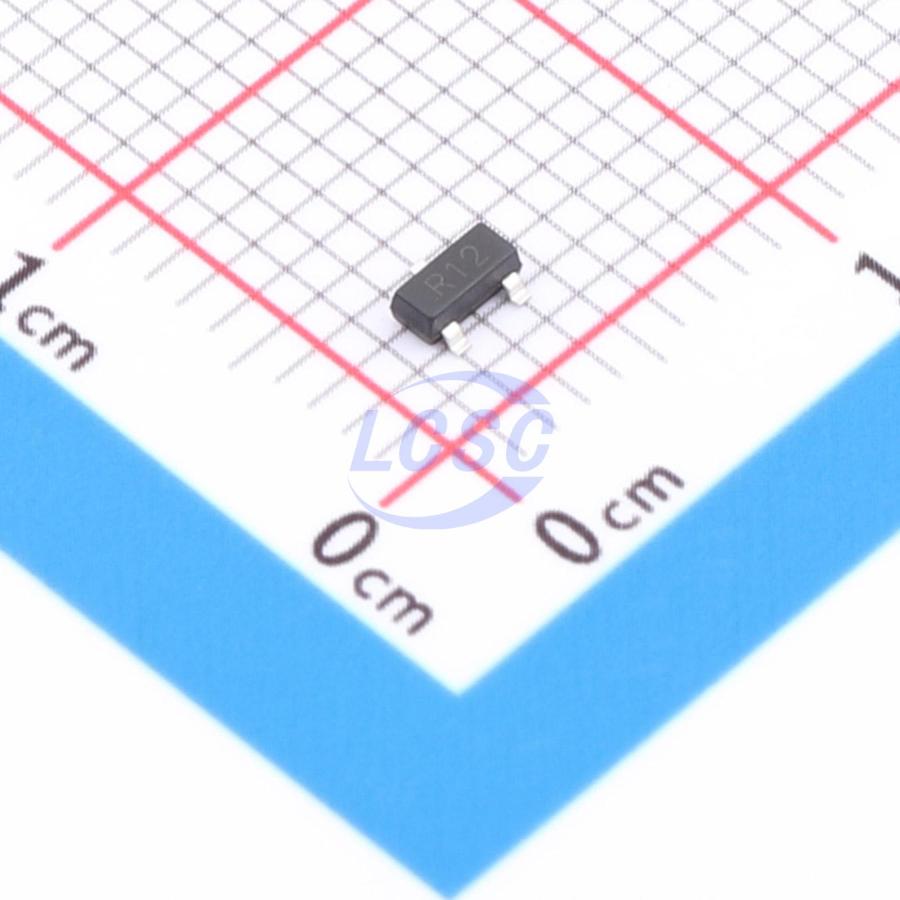

LM385M3X-2.5-TP
2.5V ±0.3% Fixed SOT-23 Voltage Reference RoHS
SOT-23ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- LM385M3X-2.5-TP
- Store part #
- C49333162
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,480 in stock
#C49333162
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.68 | ₹88.40 |
| 50+ | ₹13.88 | ₹694.00 |
| 150+ | ₹11.99 | ₹1,798.50 |
| 500+ | ₹10.56 | ₹5,280.00 |
| 3,000+ | ₹9.42 | ₹28,260.00 |
| 6,000+ | ₹8.85 | ₹53,100.00 |
5 × ₹17.68
₹88.40
excl. GST
₹104.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM385M3X-2.5-TP
₹88.40 for 5 + GST
Specifications
- Output Voltage
- 2.5V
- Quiescent Current
- 25uA
- Tolerance
- ±0.3%
- Minimum Cathode Current for Regulation
- 25uA
- Reference Type
- Parallel
- Operating Temperature
- -40℃~+125℃
- Noise - 10Hz to 10kHz
- 35uVrms
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
This is a shunt voltage reference that is versatile and easy to use, suitable for a wide range of applications. This pin-fixed output device requires no external capacitors and maintains operability and stability under all capacitive loads. In addition, the reference features low dynamic impedance, low noise, and a low temperature coefficient, ensuring stable output voltage over a wide operating current and temperature range. The device is housed in a space-saving SOT23 package. With a minimum operating current of 25μA (typical), it is ideal for portable applications. It is rated for an operating temperature range of -40°C to +125°C.
Applications
- Battery-powered devices
- Data acquisition systems
- Precision audio components
- Instrumentation
- Process control
Key features
- Low output noise
- No output capacitor required
- Tolerates capacitive loads
- Low temperature drift: 4mV (typical)
- Low temperature coefficient: 100ppm/°C (maximum)
- Fixed reverse breakdown voltage 2.5V
- Output voltage tolerance ±0.3%
- SOT23 package
