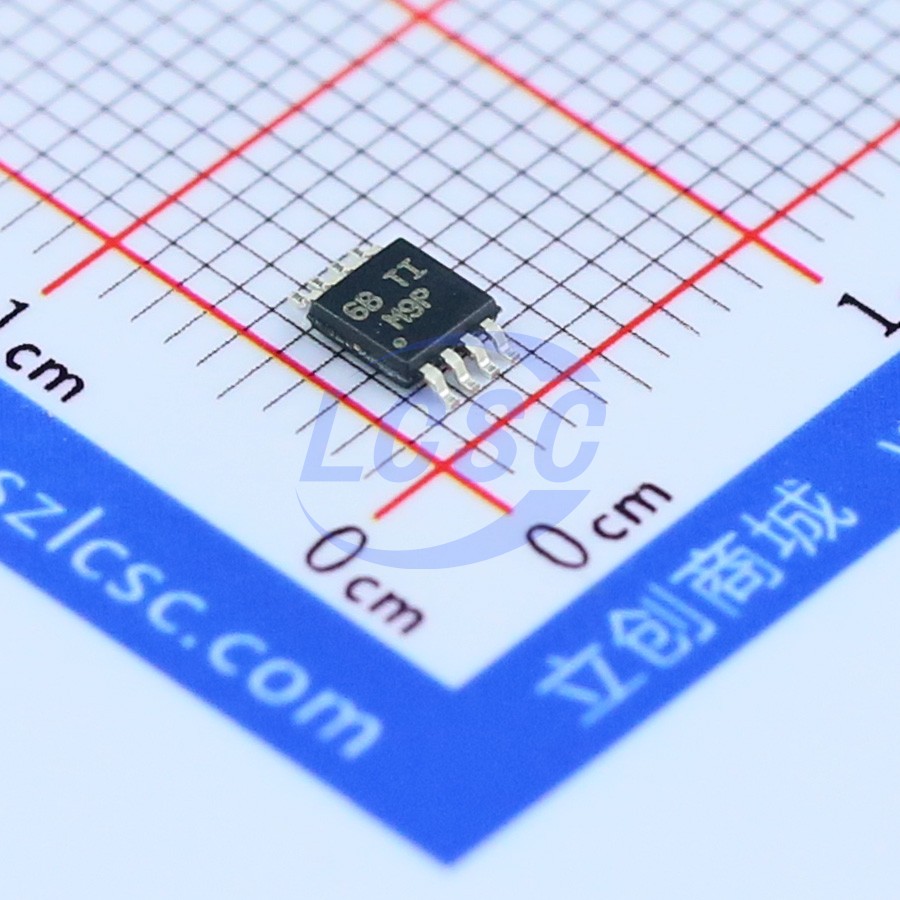

LM393DGKR

These devices consist of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible as long as the difference between the two supplies is 2V to 36V, and VCC is at least 1.5V more positive than the input common - mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open - collector outputs to achieve wired - AND relationships. The LM193 device is characterized for operation from - 55°C to 125°C. The LM293 and LM293A devices are characterized for operation from - 25°C to 85°C. The LM393 and LM393A devices are characterized for operation from 0°C to 70°C. The LM2903 device is characterized for operation from - 40°C to 125°C.

Applications

• Chemical or Gas Sensor
• Desktop PC
• Motor Control: AC Induction
• Weigh Scale

Key features

• Single - Supply or Dual Supplies Wide Range of Supply Voltage – Maximum Rating: 2 V to 36 V
• Tested to 30 V: Non - V Devices
• Tested to 32 V: V - Suffix Devices
• Low Supply - Current Drain Independent of Supply Voltage: 0.4 mA (Typical) Per Comparator
• Low Input Bias Current: 25 nA (Typical)
• Low Input Offset Current: 3 nA (Typical) (LM139)
• Low Input Offset Voltage: 2 mV (Typical)
• Common - Mode Input Voltage Range Includes Ground
• Differential Input Voltage Range Equal to Maximum - Rated Supply Voltage: ±36 V
• Low Output Saturation Voltage
• Output Compatible With TTL, MOS, and CMOS
