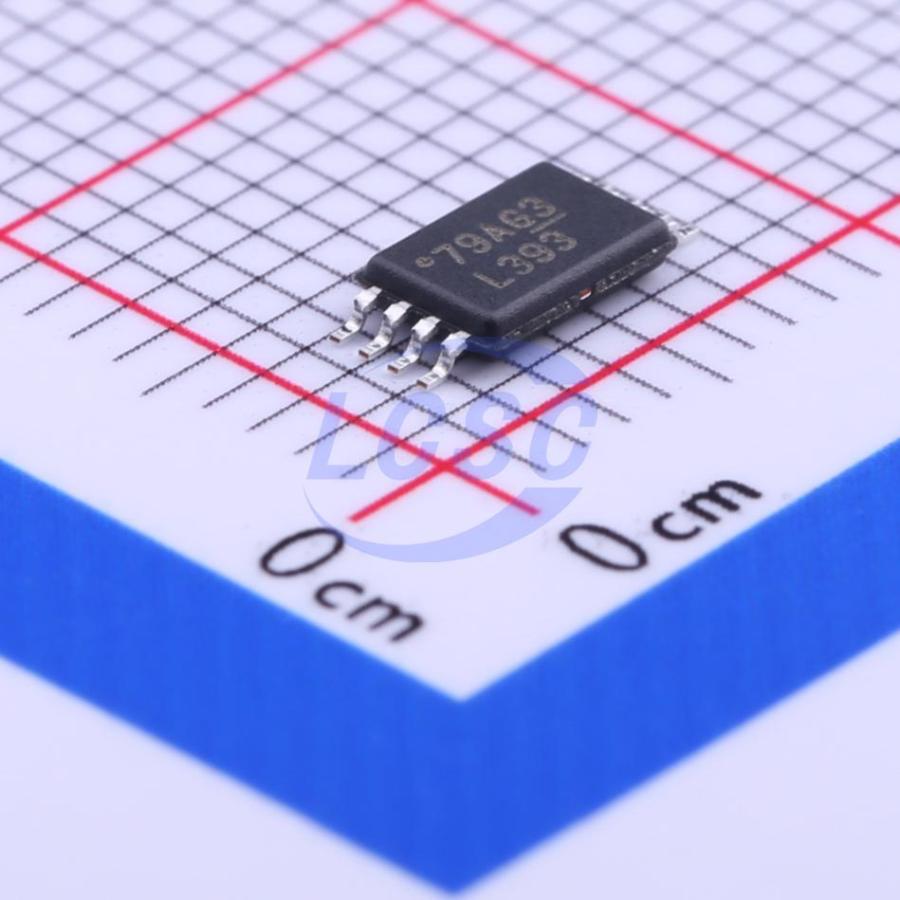

LM393PWR
2 1mA 2mV TSSOP-8 Comparators RoHS
Dual Differential Comparators
- Manufacturer
- TI
- Manufacturer part #
- LM393PWR
- Store part #
- C7956
- Package / case
- TSSOP-8
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
21,575 in stock
#C7956
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.67 | ₹93.35 |
| 50+ | ₹14.58 | ₹729.00 |
| 150+ | ₹12.54 | ₹1,881.00 |
| 500+ | ₹11.02 | ₹5,510.00 |
| 2,000+ | ₹9.79 | ₹19,580.00 |
| 4,000+ | ₹9.18 | ₹36,720.00 |
5 × ₹18.67
₹93.35
excl. GST
₹110.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
LM393PWR
₹93.35 for 5 + GST
Specifications
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Output Mode
- TTL
- Operating Temperature
- 0℃~+70℃
- Features
- ESD protection
- Ib - Input Bias Current
- 100nA
- Output Type
- Open Collector
- Quiescent Current(Iq)
- 1mA
- Vos - Input Offset Voltage
- 2mV
- Maximum Power Supply Range (Vdd-Vss)
- 36V
- Single Supply
- 2V~36V
- Response Time (tr)
- 1.3us
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.179 g
Overview
These devices consist of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common - mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open - collector outputs to achieve wired - AND relationships.
Applications
- Robotic vacuum cleaners
- Single-phase UPS
- Server PSU
- Cordless power tools
- Wireless infrastructure
- Appliances
- Building automation
- Factory automation & control
- Motor drivers
- Infotainment systems & instrument clusters
Key features
- Single Supply or Dual Supplies
- Wide Range of Supply Voltage Max Rating: 2 V to 36 V
- Tested to 30 V: Non - V Devices
- Tested to 32 V: V - Suffix Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM393PT#C160466ST · TSSOP-8 | ST | TSSOP-8 | 20 | ₹30.38 · 20 in stock | View |
 | LM293P#C5232TI · PDIP-8 | TI | PDIP-8 | 1,840 | ₹54.49 · 1,840 in stock | View |
 | LM293PT#C2913576ST · TSSOP-8 | ST | TSSOP-8 | 10 | ₹23.91 · 10 in stock | View |
 | XL393-TS#C5125489XINLUDA · TSSOP-8 | XINLUDA | TSSOP-8 | 2,965 | ₹14.53 · 2,965 in stock | View |
