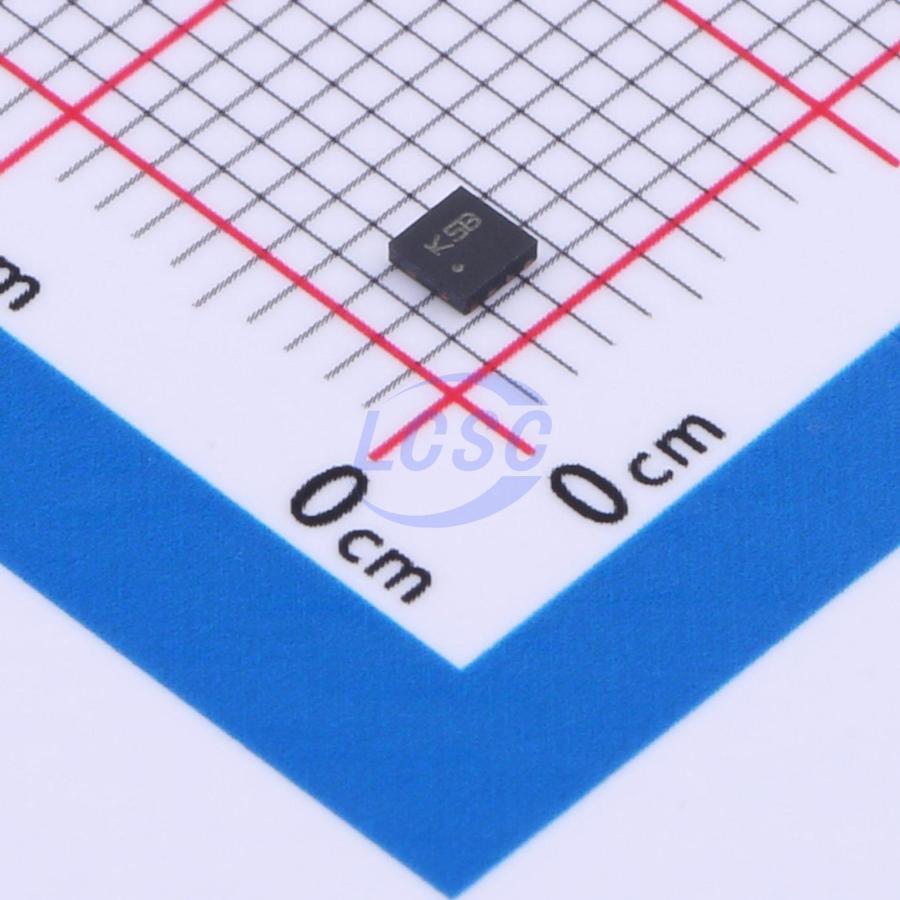

LM393QT
2 450uA 1mV DFN-8(2x2) Comparators RoHS
Low-power, dual-voltage comparators
- Manufacturer
- ST
- Manufacturer part #
- LM393QT
- Store part #
- C2970927
- Package / case
- DFN-8(2x2)
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,340 in stock
#C2970927
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.71 | ₹158.55 |
| 50+ | ₹24.62 | ₹1,231.00 |
| 150+ | ₹21.59 | ₹3,238.50 |
| 500+ | ₹17.79 | ₹8,895.00 |
| 3,000+ | ₹16.11 | ₹48,330.00 |
| 6,000+ | ₹15.10 | ₹90,600.00 |
5 × ₹31.71
₹158.55
excl. GST
₹187.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM393QT
₹158.55 for 5 + GST
Specifications
- Number of Channels
- 2
- Input Offset Current(Ios)
- 3nA
- Output Mode
- TTL;DTL;ECL;MOS;CMOS
- Operating Temperature
- 0℃~+70℃
- Dual Supply
- 1V~18V;-18V~-1V
- Ib - Input Bias Current
- 20nA
- Propagation Delay(tpd)
- 300ns
- Quiescent Current(Iq)
- 450uA
- Vos - Input Offset Voltage
- 1mV
- Maximum Power Supply Range (Vdd-Vss)
- 36V
- Single Supply
- 2V~36V
- Response Time (tr)
- 1.3us
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
The LM193, LM293, and LM393 devices consist of two independent low voltage comparators designed specifically to operate from a single supply over a wide range of voltages. Operation from split power supplies is also possible. These comparators also have a unique characteristic in that the input common-mode voltage range includes ground even though operated from a single power supply voltage. The devices LM393W and LM393AW offer additional ESD robustness of 2 kV HBM on all pins.
Key features
- Wide single-supply voltage range or dual supplies: 2 V to 36 V or ±1 V to ±18 V
- Very low supply current (0.45 mA) independent of supply voltage (1 mW/ comparator at 5 V)
- Low input bias current: 20 nA typ.
- Low input offset current: ±3 nA typ.
- Low input offset voltage: ±1 mV typ.
- Input common-mode voltage range includes ground
- Low output saturation voltage: 80 mV typ. (I sink = 4 mA)
- Differential input voltage range equal to the supply voltage
- TTL, DTL, ECL, MOS, CMOS compatible outputs
- Available in DFN8 2×2, MiniSO8, TSSOP8, and SO8 packages
- LM393W and LM393AW with internal ESD protection: 2 kV HBM
