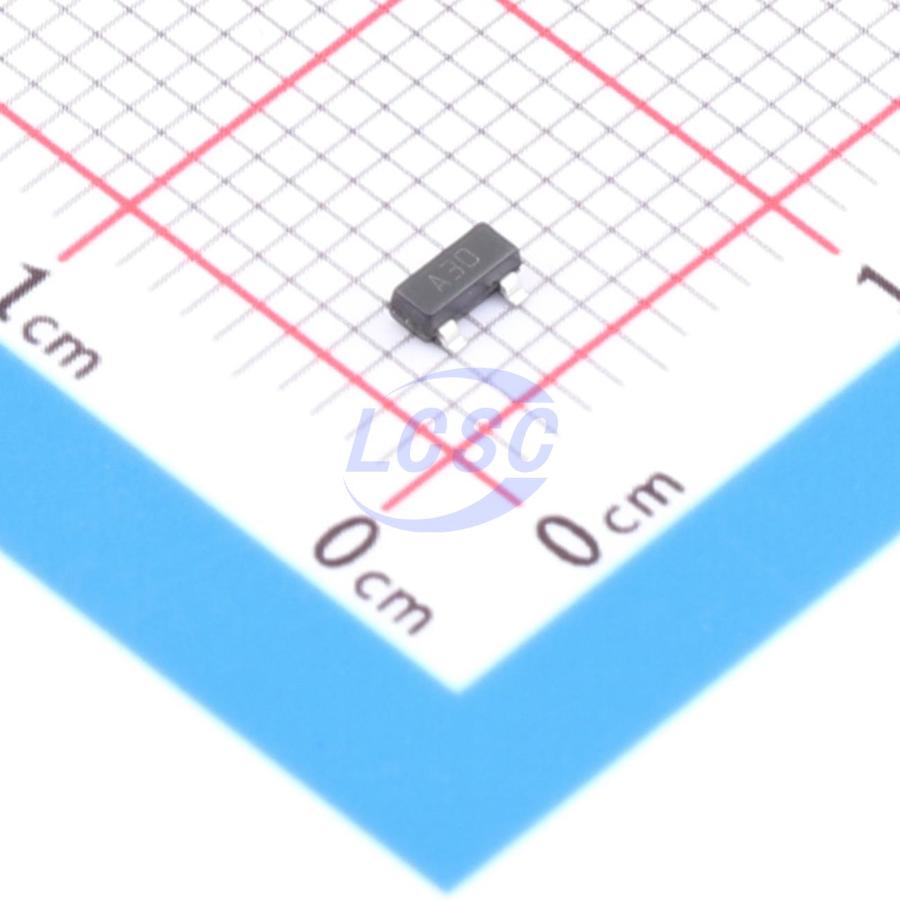

LM4040AELT-3.0
3V ±0.1% 15mA Fixed SOT-23 Voltage Reference RoHS
SOT-23ROHS CompliantActive
Precision micropower shunt voltage reference
- Manufacturer
- ST
- Manufacturer part #
- LM4040AELT-3.0
- Store part #
- C5267748
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,132 in stock
#C5267748
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹274.27 | ₹274.27 |
| 10+ | ₹229.83 | ₹2,298.30 |
| 30+ | ₹202.08 | ₹6,062.40 |
| 100+ | ₹173.46 | ₹17,346.00 |
| 500+ | ₹160.67 | ₹80,335.00 |
| 1,000+ | ₹155.03 | ₹1,55,030.00 |
1 × ₹274.27
₹274.27
excl. GST
₹323.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM4040AELT-3.0
₹274.27 for 1 + GST
Specifications
- Output Voltage
- 3V
- Tolerance
- ±0.1%
- Minimum Cathode Current for Regulation
- 15uA
- Reference Type
- Parallel
- Noise - 1/10Hz to 10Hz
- 10uVp-p
- Output Current
- 15mA
- Operating Temperature
- -40℃~+125℃@(Ta)
- Noise - 10Hz to 10kHz
- 95uVrms
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.039 g
Overview
The LM4040 is a low power and high accuracy shunt voltage reference providing a stable output voltage over the industrial temperature range (-40 to +125 °C), with a maximum temperature coefficient of 70 ppm/°C. It is available in 0.1%, 0.2%, 0.5% and 1% initial accuracy versions. The SOT323-5L and SOT23-3L packages can be designed in applications where space saving is a critical issue. The very low operating current is a key advantage for power restricted designs. The LM4040 is very stable and can be used in a broad range of application conditions.
Applications
- Portable, battery-operated equipment
- Data acquisition systems
- Instrumentation
Key features
- SOT23-3L
- SOT323-5L
- Fixed 2.048 V, 2.5 V, 3.0 V, 4.096 V and 5.0 V output voltages
- Ultra low operating current: 10 μA at 25 °C
- High precision @25 °C: +/–0.1% (LM4040A), +/–0.2% (LM4040B), +/–0.5% (LM4040C), +/–1% (LM4040D)
- Very low LF noise: typ. 10 μV p-p
- Stable when used with capacitive loads
- Industrial (-40 to +125 °C) temperature range
- 70 ppm/°C max. temperature coefficient
- Available in SOT23-3L and SOT323-5L packages
