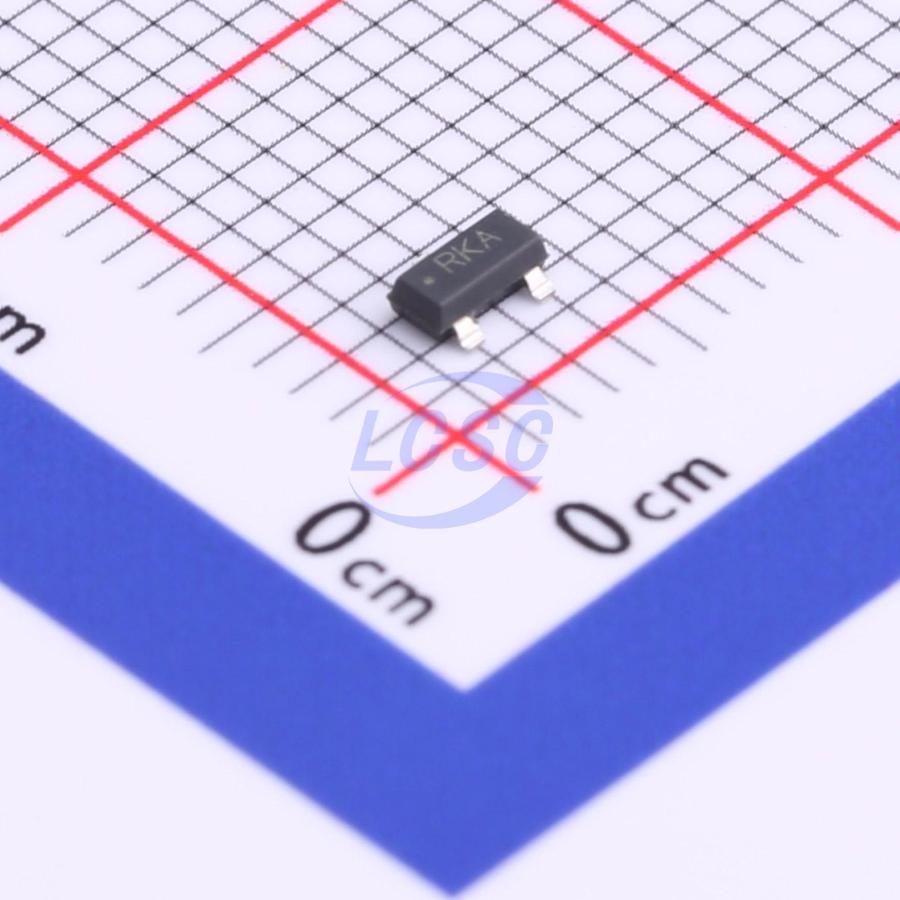

LM4040AIM3-3.0/NOPB
3V ±0.1% 15mA Fixed SOT-23 Voltage Reference RoHS
SOT-23ROHS3 CompliantActive
Precision micropower shunt voltage reference
- Manufacturer
- TI
- Manufacturer part #
- LM4040AIM3-3.0/NOPB
- Store part #
- C544506
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,683 in stock
#C544506
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹214.70 | ₹214.70 |
| 10+ | ₹175.59 | ₹1,755.90 |
| 30+ | ₹154.06 | ₹4,621.80 |
| 100+ | ₹129.95 | ₹12,995.00 |
| 500+ | ₹119.08 | ₹59,540.00 |
| 1,000+ | ₹114.08 | ₹1,14,080.00 |
1 × ₹214.70
₹214.70
excl. GST
₹253.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM4040AIM3-3.0/NOPB
₹214.70 for 1 + GST
Specifications
- Output Voltage
- 3V
- Quiescent Current
- 62uA
- Tolerance
- ±0.1%
- Minimum Cathode Current for Regulation
- 62uA
- Reference Type
- Parallel
- Output Current
- 15mA
- Operating Temperature
- -40℃~+85℃
- Noise - 10Hz to 10kHz
- 35uVrms
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.075 g
Overview
The LM4040-N-Q1 meets the AEC Q-100 requirements for automotive applications – Extended Grade 1: -40°C to +125°C, TA; Industrial Grade 3: -40°C to +85°C, TA. Small packages: SOT-23, TO-92, and SC70. No output capacitor is required and it can accept capacitive loads. It provides fixed reverse breakdown voltages of 2.048V, 2.5V, 3V, 4.096V, 5V, 8.192V, and 10V.
Applications
- Portable, battery-powered devices
- Data acquisition systems
- Instrumentation
- Process control
- Power management
- Production testing
- Automotive
- Precision audio components
Key features
- AEC Q-100 qualified for automotive applications – Extended Grade 1: -40°C to +125°C, TA; Industrial Grade 3: -40°C to +85°C, TA
- Small packages: SOT-23, TO-92, and SC70
- No output capacitor required; capacitive load compatible
- Fixed reverse breakdown voltages: 2.048V, 2.5V, 3V, 4.096V, 5V, 8.192V, and 10V
- Output voltage tolerance (Grade A, 25°C): ±0.1% (max)
- Low output noise (10Hz to 10kHz): 35μVrms (typical)
- Wide operating current range: 60μA to 15mA
- Industrial temperature range: -40°C to +85°C
- Extended temperature range: -40°C to +125°C
- Low temperature coefficient: 100ppm/°C (max)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM4040AIM3X-3.0/NOPB#C2156835TI · SOT-23-3 | TI | SOT-23-3 | 2,883 | ₹199.61 · 2,883 in stock | View |
 | LM4040AIM3-3.0/TR#C42370283HGSEMI · SOT-23 | HGSEMI | SOT-23 | 93 | ₹100.83 · 93 in stock | View |
