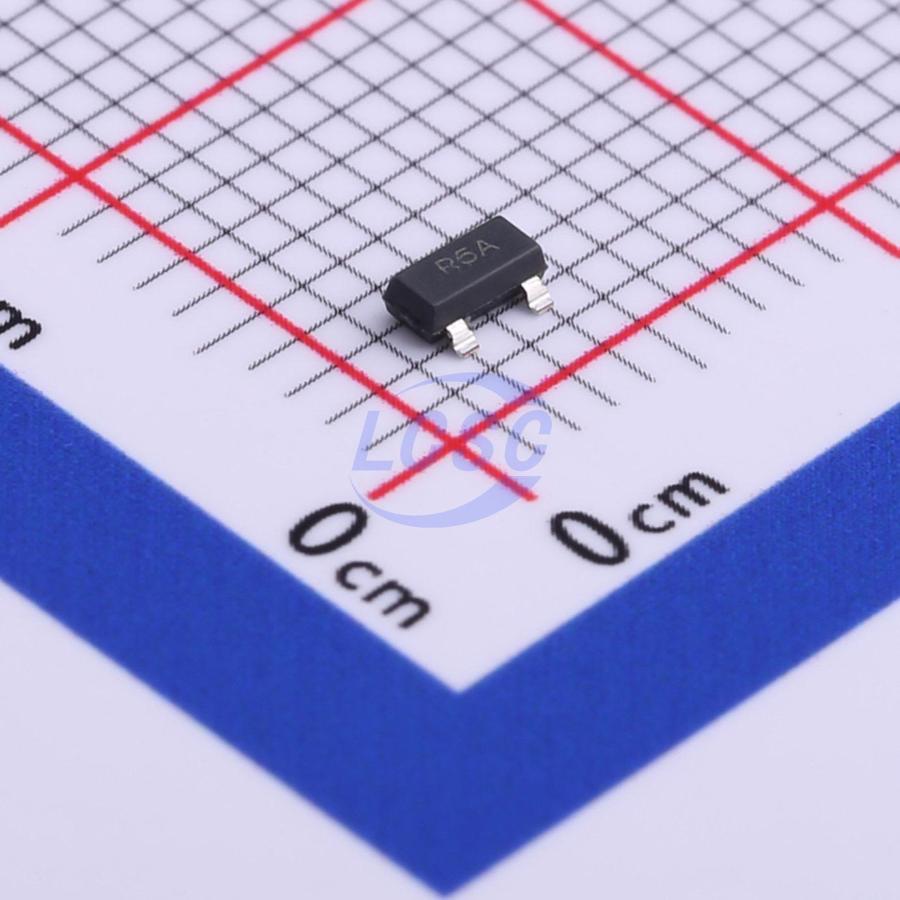

LM4040AIM3X-5.0/NOPB
Shunt Voltage Reference IC Fixed 5V ±0.1% 15mA SOT-23-3
SOT-23-3ROHS3 CompliantActive
Precision micropower shunt voltage reference
- Manufacturer
- TI
- Manufacturer part #
- LM4040AIM3X-5.0/NOPB
- Store part #
- C529567
- Package / case
- SOT-23-3
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,872 in stock
#C529567
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹150.95 | ₹150.95 |
| 10+ | ₹124.02 | ₹1,240.20 |
| 30+ | ₹109.25 | ₹3,277.50 |
| 100+ | ₹92.53 | ₹9,253.00 |
| 500+ | ₹84.92 | ₹42,460.00 |
| 1,000+ | ₹81.67 | ₹81,670.00 |
1 × ₹150.95
₹150.95
excl. GST
₹178.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM4040AIM3X-5.0/NOPB
₹150.95 for 1 + GST
Specifications
- Quiescent Current
- 74uA
- Output Voltage
- 5V
- Tolerance
- ±0.1%
- Minimum Cathode Current for Regulation
- 74uA
- Reference Type
- Parallel
- Output Current
- 15mA
- Operating Temperature
- -40℃~+85℃
- Noise - 10Hz to 10kHz
- 35uVrms
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.09 g
Overview
The LM4040-N-Q1 meets the AEC Q-100 requirements for automotive applications – Extended Grade 1: -40°C to +125°C, TA; Industrial Grade 3: -40°C to +85°C, TA
Applications
- Portable, battery-powered devices
- Data acquisition systems
- Instrumentation
- Process control
- Power management
- Production testing
- Automotive
- Precision audio components
Key features
- AEC Q-100 qualified for automotive applications, Grade 1 Extended: -40°C to +125°C, TA; Grade 3 Industrial: -40°C to +85°C, TA
- Small packages: SOT-23, TO-92, and SC70
- No output capacitor required; accepts capacitive loads
- Fixed reverse breakdown voltages: 2.048V, 2.5V, 3V, 4.096V, 5V, 8.192V, and 10V
- Output voltage tolerance (Grade A, 25°C): ±0.1% (maximum)
- Low output noise (10Hz to 10kHz): 35μVrms (typical)
- Wide operating current range: 60μA to 15mA
- Industrial temperature range: -40°C to +85°C
- Extended temperature range: -40°C to +125°C
- Low temperature coefficient: 100ppm/°C (maximum)
