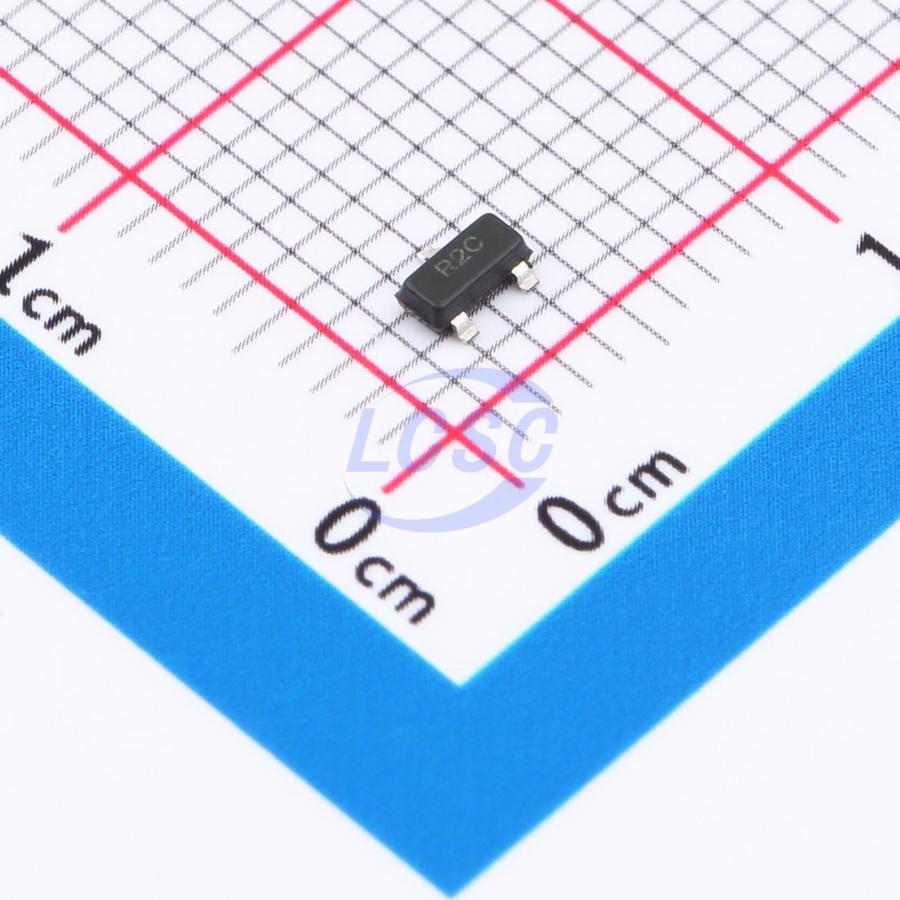

LM4040C25FTA-TP
2.5V ±0.5% Fixed SOT-23 Voltage Reference
SOT-23RoHSActive
Precision Micro power Shunt Voltage Reference
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- LM4040C25FTA-TP
- Store part #
- C47117535
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,350 in stock
#C47117535
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.30 | ₹141.50 |
| 50+ | ₹22.29 | ₹1,114.50 |
| 150+ | ₹19.71 | ₹2,956.50 |
| 500+ | ₹16.50 | ₹8,250.00 |
| 3,000+ | ₹15.07 | ₹45,210.00 |
| 6,000+ | ₹14.21 | ₹85,260.00 |
5 × ₹28.30
₹141.50
excl. GST
₹166.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM4040C25FTA-TP
₹141.50 for 5 + GST
Specifications
- Quiescent Current
- 45uA
- Output Voltage
- 2.5V
- Tolerance
- ±0.5%
- Minimum Cathode Current for Regulation
- 45uA
- Reference Type
- Parallel
- Operating Temperature
- -40℃~+125℃
- Noise - 10Hz to 10kHz
- 35uVrms
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.032 g
Overview
This is a parallel voltage reference with diverse functions, easy to use, and suitable for Various applications. The pin fixed output device does not require external capacitors Operable and stable when working with all capacitive loads. Here Moreover, this benchmark has low dynamic impedance, low noise, and low temperature coefficient, which can Ensure stable output voltage within a wide range of operating currents and temperatures. This is packaged in SOT23, which saves space. The minimum current is 45μA (typical value), making it suitable for portable applications The ideal choice. Its rated operating temperature range is - 40℃ to +125℃
Applications
- Battery-Powered Equipment
- Data Acquisition Systems
- Precision Audio Components
- Instrumentation
- Process Control
- Energy Management
- Product Testing
Key features
- Low Output Noise
- No Output Capacitor Required
- Tolerates Capacitive Loads
- Low Temperature Deviation: 10mV(typ)
- Low Temperature Coefficient of 100ppm/℃ (max)
- Fixed Reverse-Breakdown Voltages 2.5V
- Output Voltage Tolerance (C±0.5%)
- Package appearance SOT23
