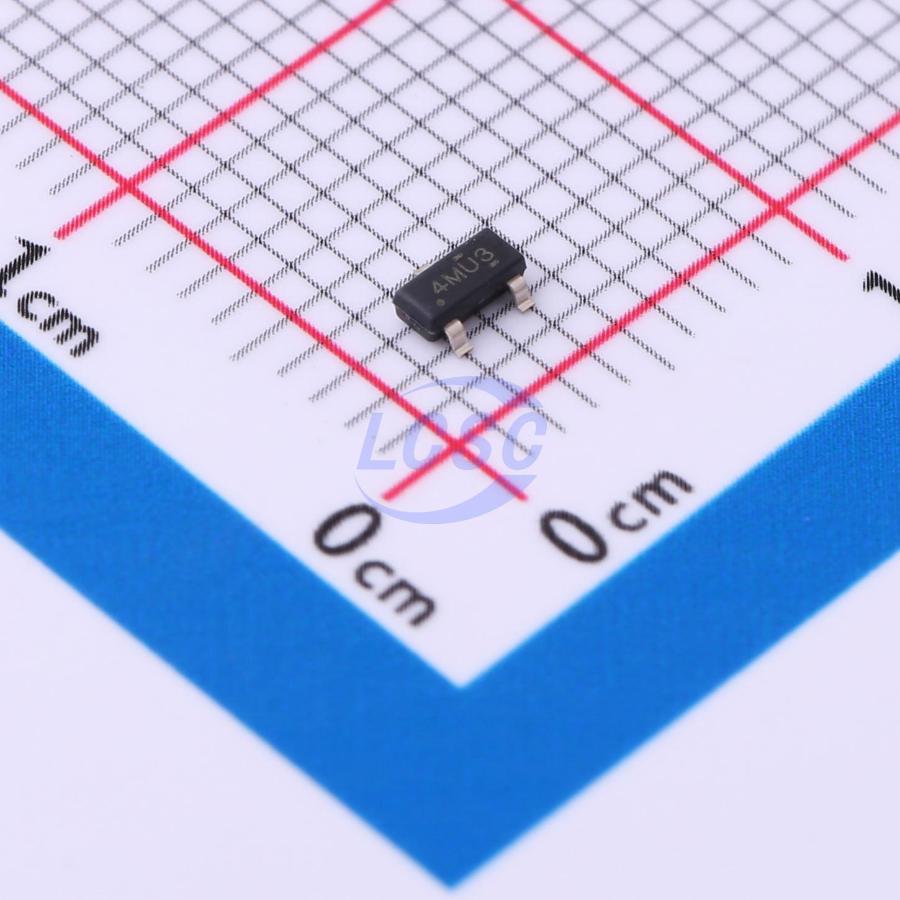

LM4040C25IDBZR

The LM4040 series of shunt voltage references are versatile, easy-to-use references that cater to a vast array of applications. The 2-pin fixed-output device requires no external capacitors for operation and is stable with all capacitive loads. Additionally, the reference offers low dynamic impedance, low noise, and low temperature coefficient to ensure a stable output voltage over a wide range of operating currents and temperatures. The LM4040 uses fuse and Zener-zap reverse breakdown voltage trim during wafer sort to offer four output voltage tolerances, ranging from 0.1% (max) for the A grade to 1% (max) for the D grade. Thus, a great deal of flexibility is offered to designers in choosing the best cost-to-performance ratio for their applications.

Applications

• Data-Acquisition Systems
• Power Supplies and Power-Supply Monitors
• Instrumentation and Test Equipment
• Process Controls
• Precision Audio
• Automotive Electronics
• Energy Management
• Battery-Powered Equipment

Key features

• Fixed Output Voltages of 2.048 V, 2.5 V, 3 V, 4.096 V, 5 V, 8.192 V, and 10 V
• Tight Output Tolerances and Low Temperature Coefficient
• Max 0.1%, 100 ppm/°C - A Grade
• Max 0.2%, 100 ppm/°C - B Grade
• Max 0.5%, 100 ppm/°C - C Grade
• Max 1.0%, 150 ppm/°C - D Grade
• Low Output Noise: 35 μv RMS Typ
• Wide Operating Current Range: 45 μA Typ to 15 mA
• Stable With All Capacitive Loads; No Output Capacitor Required
• Available in Extended Temperature Range: -40°C to 125°C
