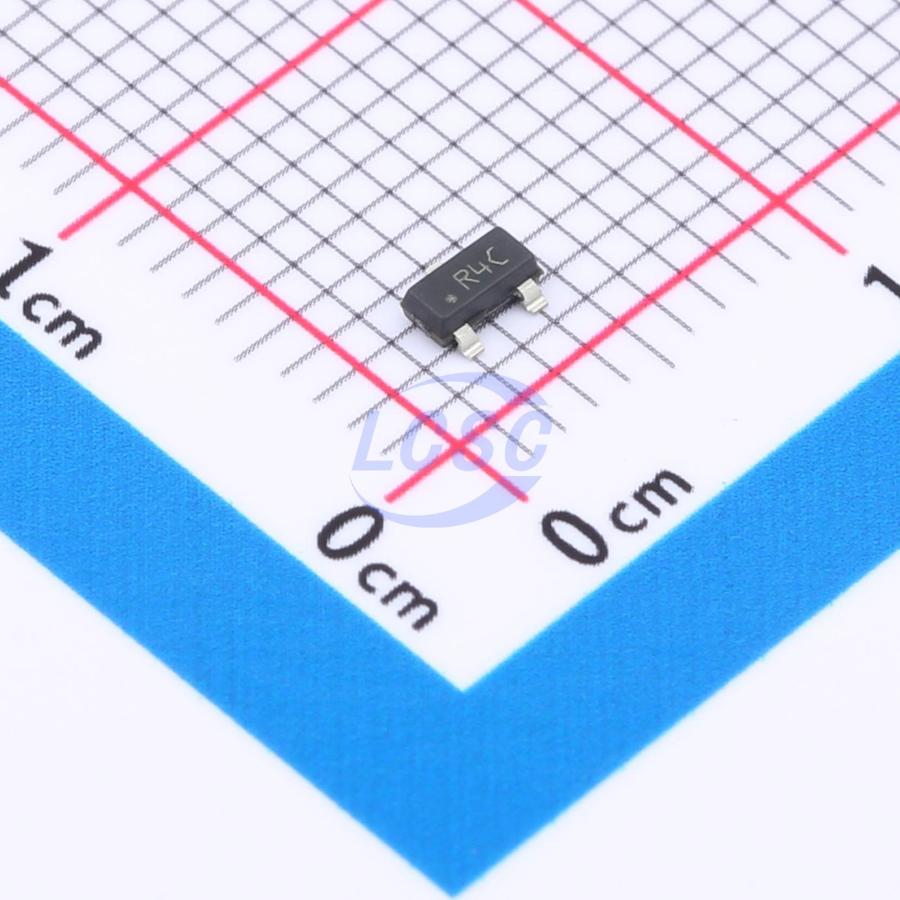

LM4040CIM3X-4.1/NOPB
4.1V ±0.5% 15mA Fixed SOT-23 Voltage Reference RoHS
SOT-23ROHS3 CompliantActive
Precision micropower shunt voltage reference
- Manufacturer
- TI
- Manufacturer part #
- LM4040CIM3X-4.1/NOPB
- Store part #
- C1880352
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,723 in stock
#C1880352
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.94 | ₹82.94 |
| 10+ | ₹65.09 | ₹650.90 |
| 30+ | ₹56.39 | ₹1,691.70 |
| 100+ | ₹47.46 | ₹4,746.00 |
| 500+ | ₹39.85 | ₹19,925.00 |
| 1,000+ | ₹37.02 | ₹37,020.00 |
1 × ₹82.94
₹82.94
excl. GST
₹97.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM4040CIM3X-4.1/NOPB
₹82.94 for 1 + GST
Specifications
- Output Voltage
- 4.1V
- Quiescent Current
- 68uA
- Tolerance
- ±0.5%
- Minimum Cathode Current for Regulation
- 68uA
- Reference Type
- Parallel
- Output Current
- 15mA
- Operating Temperature
- -40℃~+85℃@(Ta)
- Noise - 10Hz to 10kHz
- 35uVrms
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.001 g
Overview
The LM4040-N-Q1 meets the AEC Q-100 requirements for automotive applications – Extended Grade 1: -40°C to +125°C, TA; Industrial Grade 3: -40°C to +85°C, TA. Small packages: SOT-23, TO-92, and SC70. No output capacitor is required and it can accept capacitive loads. It provides fixed reverse breakdown voltages of 2.048V, 2.5V, 3V, 4.096V, 5V, 8.192V, and 10V.
Applications
- Portable, battery-powered devices
- Data acquisition systems
- Instrumentation
- Process control
- Power management
- Production testing
- Automotive
- Precision audio components
Key features
- AEC Q-100 qualified for automotive applications – Extended Grade 1: -40°C to +125°C, TA; Industrial Grade 3: -40°C to +85°C, TA
- Small packages: SOT-23, TO-92, and SC70
- No output capacitor required; capacitive load compatible
- Fixed reverse breakdown voltages: 2.048V, 2.5V, 3V, 4.096V, 5V, 8.192V, and 10V
- Output voltage tolerance (Grade A, 25°C): ±0.1% (max)
- Low output noise (10Hz to 10kHz): 35μVrms (typical)
- Wide operating current range: 60μA to 15mA
- Industrial temperature range: -40°C to +85°C
- Extended temperature range: -40°C to +125°C
- Low temperature coefficient: 100ppm/°C (max)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM4040CYM3-4.1-TR#C75691MICROCHIP · SOT-23 | MICROCHIP | SOT-23 | 394 | ₹77.79 · 394 in stock | View |
 | LM4040CIM3-4.1/NOPB#C414607TI · SOT-23-3 | TI | SOT-23-3 | On request | Price on request | Quote |
| TL4050C41IDBZT#C2864588TI · SOT-23-3 | TI | SOT-23-3 | On request | Price on request | Quote | |
| LM4040CEM3-4.1+T#C7451063MAXIM · SOT-23-3 | MAXIM | SOT-23-3 | On request | Price on request | Quote | |
