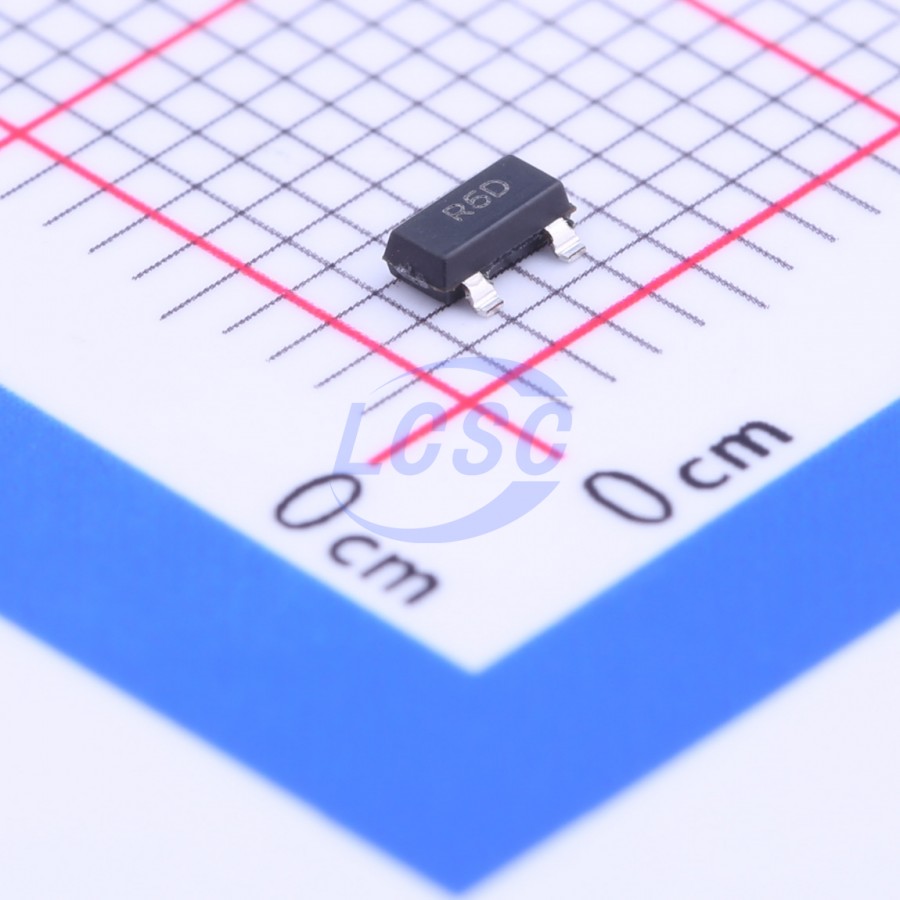

LM4040DIM3X-5.0/NOPB

Ideal for space-critical applications, the LM4040-N precision voltage reference is available in the subminiature SC70 and SOT-23 surface-mount package. The advanced design of the LM4040-N eliminates the need for an external stabilizing capacitor while ensuring stability with any capacitive load, thus making the LM4040-N easy to use. Further reducing design effort is the availability of several fixed reverse breakdown voltages: 2.048 V, 2.5 V, 3 V, 4.096 V, 5 V, 8.192 V, and 10 V. The minimum operating current increases from 60 μA for the 2.5-V LM4040-N to 100 μA for the 10-V LM4040-N. All versions have a maximum operating current of 15 mA. The LM4040-N uses a fuse and Zener-zap reverse breakdown voltage trim during wafer sort to ensure that the prime parts have an accuracy of better than ±0.1% (A grade) at 25 °C. Bandgap reference temperature drift curvature correction and low dynamic impedance ensure stable reverse breakdown voltage accuracy over a wide range of operating temperatures and currents.

Applications

• Portable, Battery-Powered Equipment
• Data Acquisition Systems Instrumentation
• Process Controls Energy Management
• Product Testing Automotives
• Precision Audio Components

Key features

• SOT-23 AEC Q-100 Grades 1 and 3 Available
• Small Packages: SOT-23, TO-92, and SC70
• No Output Capacitor Required Tolerates Capacitive Loads
• Fixed Reverse Breakdown Voltages of 2.048 V, 2.5 V, 3 V, 4.096 V, 5 V, 8.192 V, and 10 V
• Output Voltage Tolerance (A Grade, 25 °C): ±0.1% (Maximum)
• Low Output Noise (10 Hz to 10 kHz): 35 μVrms (Typical)
• Wide Operating Current Range: 60 μA to 15 mA
• Industrial Temperature Range: -40 °C to +85 °C
• Extended Temperature Range: -40 °C to +125 °C
• Low Temperature Coefficient: 100 ppm/°C (Maximum)
