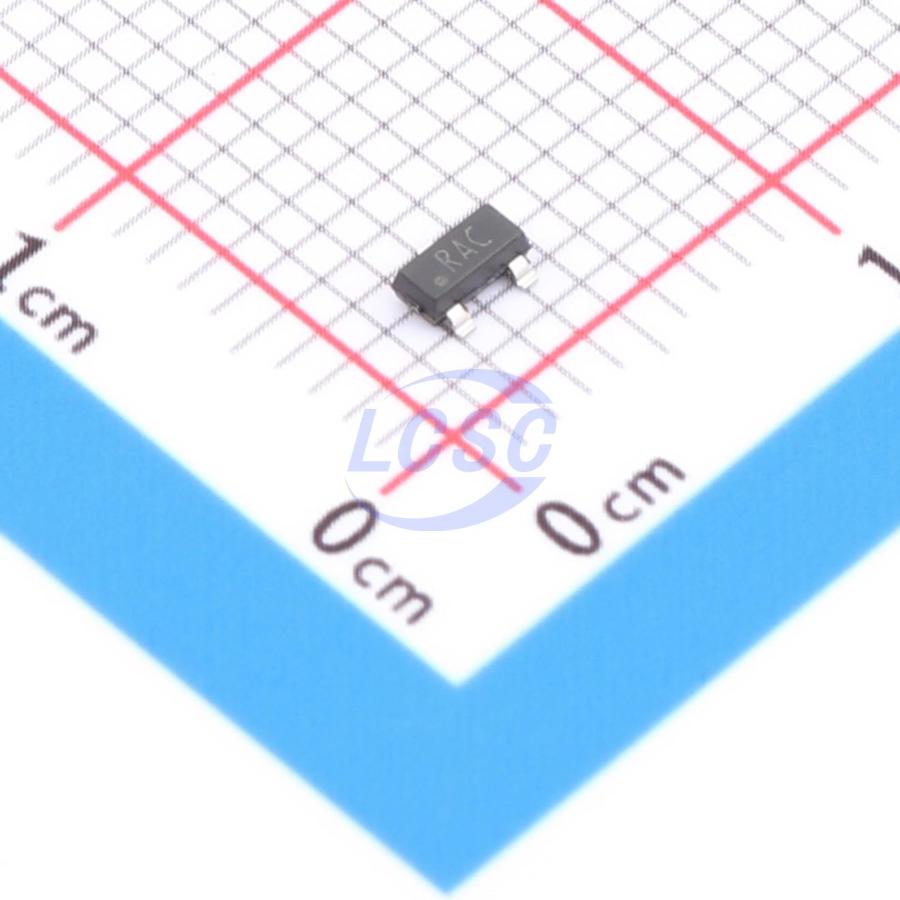

LM4041CIM3-ADJ/NOPB
1.24V~10V ±0.5% 12mA Adjustable SOT-23-3 Voltage Reference RoHS
SOT-23-3ROHS3 CompliantActive
Precision Micropower Shunt Voltage Reference
- Manufacturer
- TI
- Manufacturer part #
- LM4041CIM3-ADJ/NOPB
- Store part #
- C701904
- Package / case
- SOT-23-3
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,241 in stock
#C701904
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹83.49 | ₹83.49 |
| 10+ | ₹66.53 | ₹665.30 |
| 30+ | ₹58.05 | ₹1,741.50 |
| 100+ | ₹49.57 | ₹4,957.00 |
| 500+ | ₹44.57 | ₹22,285.00 |
| 1,000+ | ₹41.97 | ₹41,970.00 |
1 × ₹83.49
₹83.49
excl. GST
₹98.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM4041CIM3-ADJ/NOPB
₹83.49 for 1 + GST
Specifications
- Output Voltage
- 1.24V~10V
- Quiescent Current
- 60uA
- Tolerance
- ±0.5%
- Minimum Cathode Current for Regulation
- 60uA
- Reference Type
- Parallel
- Output Current
- 12mA
- Operating Temperature
- -40℃~+85℃
- Noise - 10Hz to 10kHz
- 20uVrms
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.144 g
Overview
Ideal for space-critical applications, the LM4041-N precision voltage reference is available in the subminiature SC70 and SOT-23 surface-mount packages. The advanced design of the LM4041-N eliminates the need for an external stabilizing capacitor while ensuring stability with any capacitive load, thus making the LM4041-N easy to use. Further reducing design effort is the availability of a fixed (1.225 V) and adjustable reverse breakdown voltage. The minimum operating current is 60 μA for the LM4041-N 1.2 and the LM4041-N ADJ. Both versions have a maximum operating current of 12 mA. The LM4041-N uses fuse and Zener-zap reverse breakdown or reference voltage trim during wafer sort to ensure that the prime parts have an accuracy of better than ±0.1% (A grade) at 25°C. Bandgap reference temperature drift curvature correction and low dynamic impedance ensure stable reverse breakdown voltage accuracy over a wide range of operating temperatures and currents.
Applications
- Portable, Battery-Powered Equipment
- Data Acquisition Systems
- Instrumentation
- Process Control
- Energy Management
- Automotive
- Precision Audio Components
Key features
- Qualified for Automotive Applications
- SEC-Q100 Qualified With the Following Results: Device Temperature Grade 1: -40°C to +125°C Ambient Temperature Range Device Temperature Grade 3: -40°C to +85°C Ambient Temperature Range (For SOT-23 Only)
- Available in Standard, AEC Q-100 Grade 1 (Extended Temperature Range), and Grade 3 (Industrial Temperature Range) Qualified Versions (SOT-23 Only)
- Small Packages: SOT-23, TO-92, and SC70
- No Output Capacitor Required
- Tolerates Capacitive Loads
- Reverse Breakdown Voltage Options of 1.225 V and Adjustable
- Output Voltage Tolerance (A grade, 25°C) = ±0.1% (Maximum)
- Low Output Noise (10 Hz to 10 kHz) = 20 μVrms
- Wide Operating Current Range of 60 μA to 12 mA
- Industrial Temperature Range (LM4041A/B-N, LM4041-N-Q1A/Q1B) of -40°C to +85°C
- Extended Temperature Range (LM4041C/D/E-N, LM4041-N-Q1C/Q1D/Q1E) of -40°C to +125°C
- Low Temperature Coefficient of 100 ppm/°C (Maximum)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TL4051CQDBZR#C2872450TI · SOT-23-3 | TI | SOT-23-3 | 10 | ₹341.92 · 10 in stock | View |
| TL4051CIDBZT#C1848469TI · SOT-23 | TI | SOT-23 | On request | ₹280.66 · 0 in stock | View | |
| TL4051CIDBZR#C2156904TI · SOT-23-3 | TI | SOT-23-3 | On request | ₹169.50 · 0 in stock | View | |
| LM4041C12QDBZT#C2157135TI · SOT-23 | TI | SOT-23 | On request | ₹243.02 · 0 in stock | View | |
| LM4041C12IDBZT#C2157755TI · SOT-23 | TI | SOT-23 | On request | ₹190.26 · 0 in stock | View | |
