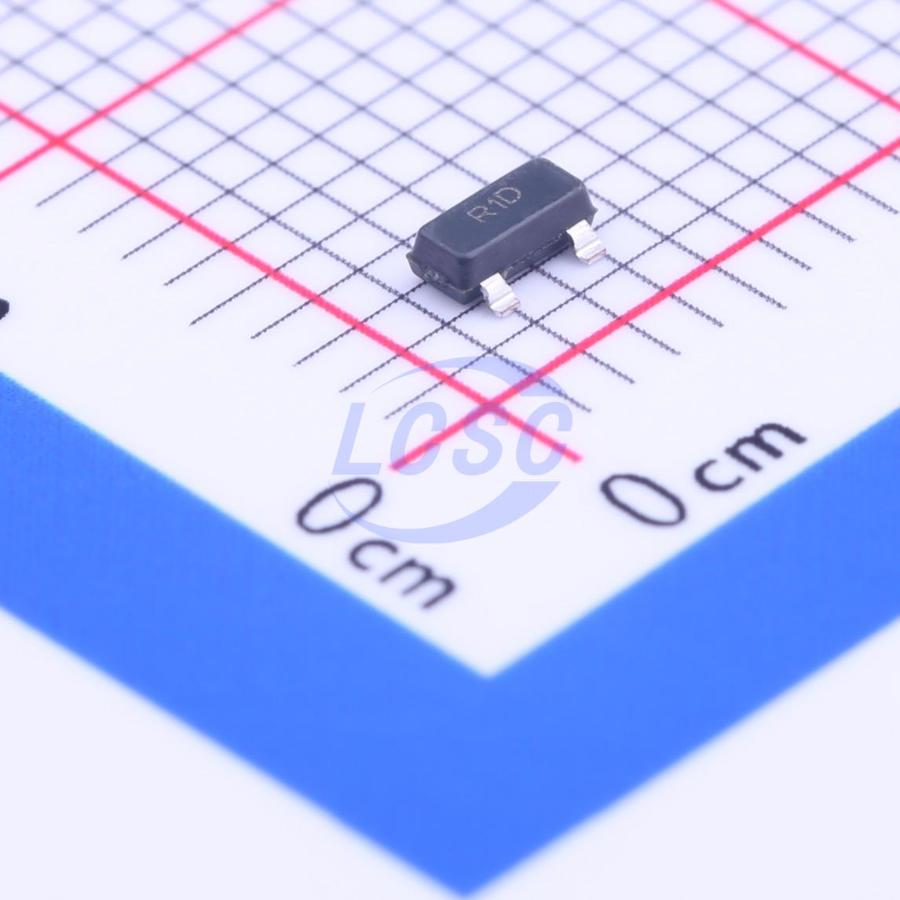

LM4041DIM3X-1.2/NOPB

1.225V ±1% 12mA Fixed SOT-23 Voltage Reference RoHS

SOT-23ROHS3 CompliantActive

Precision Micropower Shunt Voltage Reference

Manufacturer: TI
Manufacturer part #: LM4041DIM3X-1.2/NOPB
Store part #: C67902
Package / case: SOT-23
Category: Voltage Reference
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,724 in stock

#C67902

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹65.26	₹65.26
10+	₹53.56	₹535.60
30+	₹48.57	₹1,457.10
100+	₹42.28	₹4,228.00
500+	₹37.30	₹18,650.00
1,000+	₹35.79	₹35,790.00

Quantity (min 1)

1 × ₹65.26

₹65.26

excl. GST

₹77.01 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LM4041DIM3X-1.2/NOPB

₹65.26 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.225V
Quiescent Current: 60uA
Tolerance: ±1%
Minimum Cathode Current for Regulation: 60uA
Reference Type: Parallel
Output Current: 12mA
Operating Temperature: -40℃~+85℃
Noise - 10Hz to 10kHz: 20uVrms
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.05 g

Overview

Ideal for space-critical applications, the LM4041-N precision voltage reference is available in the subminiature SC70 and SOT-23 surface-mount packages. The advanced design of the LM4041-N eliminates the need for an external stabilizing capacitor while ensuring stability with any capacitive load, thus making the LM4041-N easy to use. Further reducing design effort is the availability of a fixed (1.225 V) and adjustable reverse breakdown voltage. The minimum operating current is 60 μA for the LM4041-N 1.2 and the LM4041-N ADJ. Both versions have a maximum operating current of 12 mA. The LM4041-N uses fuse and Zener-zap reverse breakdown or reference voltage trim during wafer sort to ensure that the prime parts have an accuracy of better than ±0.1% (A grade) at 25°C. Bandgap reference temperature drift curvature correction and low dynamic impedance ensure stable reverse breakdown voltage accuracy over a wide range of operating temperatures and currents.

Applications

Portable, Battery-Powered Equipment
Data Acquisition Systems Instrumentation
Process Control Energy Management
Automotive Precision Audio Components

Key features

Qualified for Automotive Applications SEC-Q100 Qualified With the Following Results: Device Temperature Grade 1: -40°C to +125°C Ambient Temperature Range Device Temperature Grade 3: -40°C to +85°C Ambient Temperature Range (For SOT-23 Only)
Available in Standard, AEC Q-100 Grade 1 (Extended Temperature Range), and Grade 3 (Industrial Temperature Range) Qualified Versions (SOT-23 Only)
Small Packages: SOT-23, TO-92, and SC70
No Output Capacitor Required
Tolerates Capacitive Loads
Reverse Breakdown Voltage Options of 1.225 V and Adjustable
Output Voltage Tolerance (A grade, 25°C) = ±0.1% (Maximum)
Low Output Noise (10 Hz to 10 kHz) = 20 μVrms
Wide Operating Current Range of 60 μA to 12 mA
Industrial Temperature Range (LM4041A/B-N, LM4041-N-Q1A/Q1B) of -40°C to +85°C
Extended Temperature Range (LM4041C/D/E-N, LM4041-N-Q1C/Q1D/Q1E) of -40°C to +125°C
Low Temperature Coefficient of 100 ppm/°C (Maximum)
