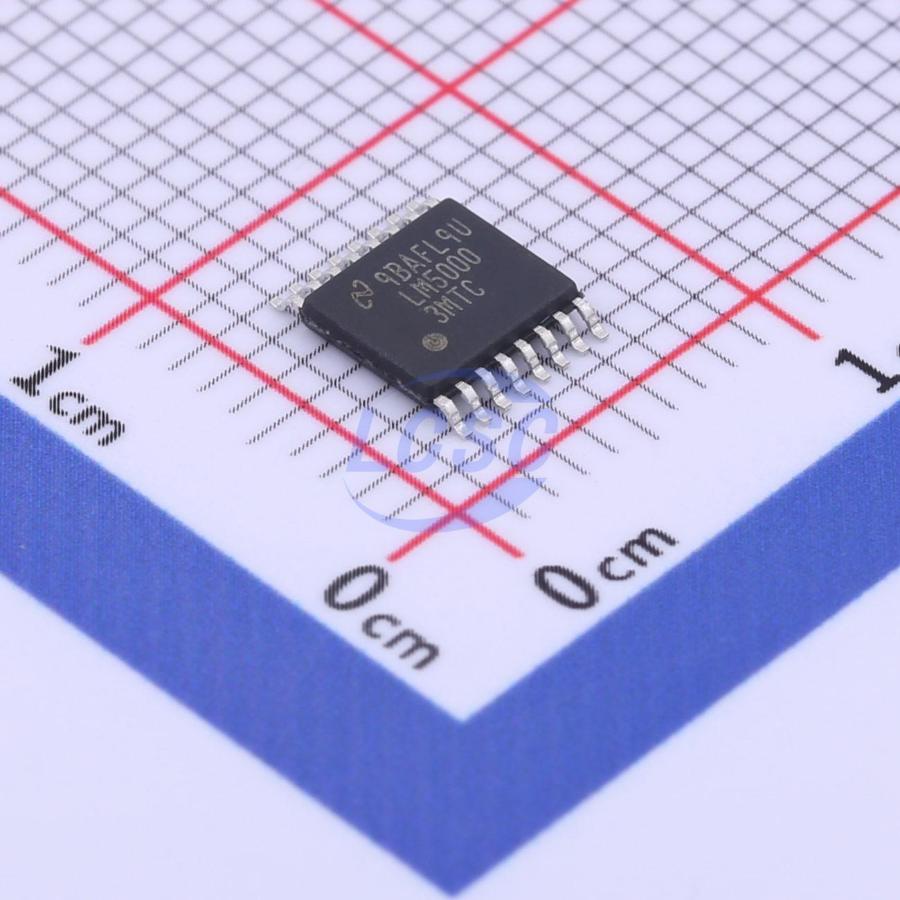

LM5000-3MTCX/NOPB

Boost Adjustable 3.1V~80V 1.35A TSSOP-16 Voltage Regulators - DC DC Switching Regulators RoHS

TSSOP-16ROHS3 CompliantActive

LM5000 High Voltage Switch Mode Regulator

Manufacturer: TI
Manufacturer part #: LM5000-3MTCX/NOPB
Store part #: C524790
Package / case: TSSOP-16
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

268 in stock

#C524790

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹1,721.26	₹1,721.26
10+	₹1,477.21	₹14,772.10
30+	₹1,328.50	₹39,855.00
100+	₹1,203.97	₹1,20,397.00

Quantity (min 1)

1 × ₹1,721.26

₹1,721.26

excl. GST

₹2,031.09 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM5000-3MTCX/NOPB

₹1,721.26 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 300kHz;700kHz
Function: Boost
Number of Outputs: 1
Features: Adjustable soft-start;External compensation;Overcurrent Protection
Topology: Boost;Flyback;Forward
Output Type: Adjustable
Operating Voltage: 3.1V~40V
Switch tube (built-in/external): Built-in
Output Voltage: 3.1V~80V
Output Current: 1.35A
Quiescent Current: 2mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.09 g

Overview

The LM5000 is a monolithic integrated circuit specifically designed and optimized for flyback, boost or forward power converter applications. The internal power switch is rated for a maximum of 80V, with a current limit set to 2A. Protecting the power switch are current limit and thermal shutdown circuits. The current mode control scheme provides excellent rejection of line transients and cycle-by-cycle current limiting. An external compensation pin and the built-in slope compensation allow the user to optimize the frequency compensation. Other distinctive features include softstart to reduce stresses during start-up and an external shutdown pin for remote ON/OFF control. There are two operating frequency ranges available. The LM5000-3 is pin selectable for either 300kHz (FS Grounded) or 700kHz (FS Open). The LM5000-6 is pin selectable for either 600kHz (FS Grounded) or 1.3MHz (FS Open). The device is available in a low profile 16-lead TSSOP package or a thermally enhanced 16-lead WSON package.
