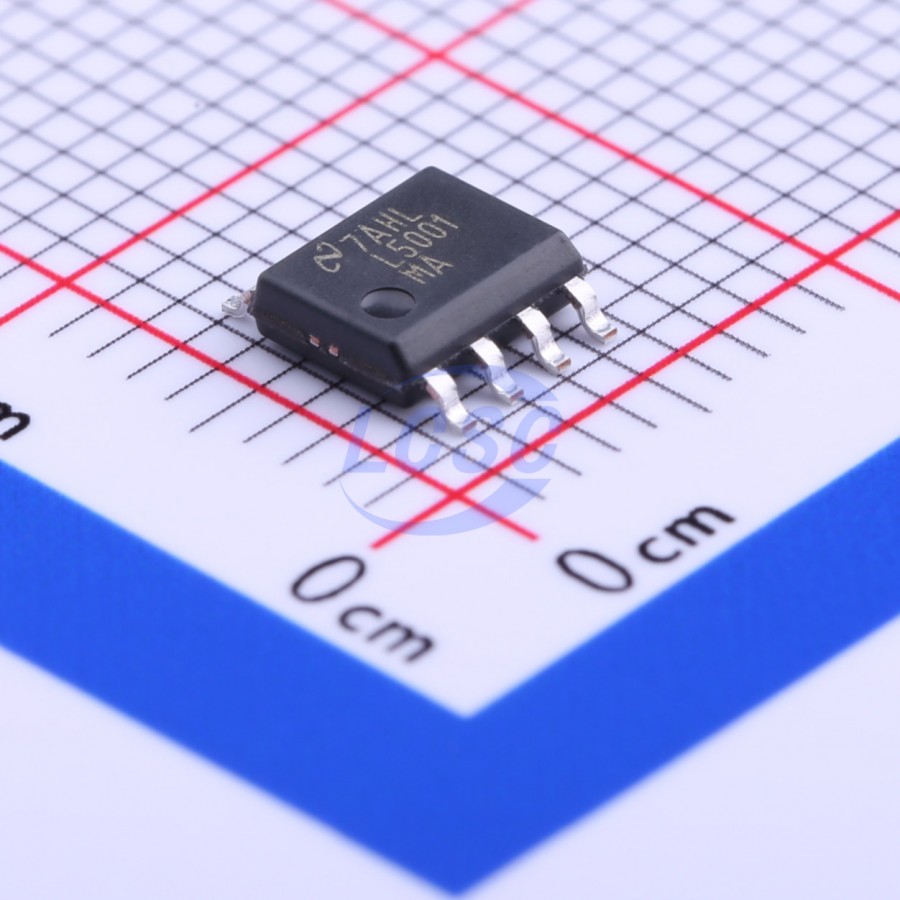

LM5001MAX/NOPB
1.5MHz Boost Adjustable 3.1V~76V 800mA SOIC-8 Voltage Regulators - DC DC Switching Regulators RoHS
SOIC-8ROHS3 CompliantActive
High-Voltage Switch-Mode Regulator
- Manufacturer
- TI
- Manufacturer part #
- LM5001MAX/NOPB
- Store part #
- C187911
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,216 in stock
#C187911
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹430.27 | ₹430.27 |
| 10+ | ₹362.29 | ₹3,622.90 |
| 30+ | ₹309.52 | ₹9,285.60 |
| 100+ | ₹265.86 | ₹26,586.00 |
| 500+ | ₹246.09 | ₹1,23,045.00 |
| 1,000+ | ₹237.62 | ₹2,37,620.00 |
1 × ₹430.27
₹430.27
excl. GST
₹507.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM5001MAX/NOPB
₹430.27 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 1.5MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Frequency synchronization;Built-in LDO regulator;Built-in current sense resistor;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost;Flyback;Forward;SEPIC
- Operating Voltage
- 3.1V~75V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 3.1V~76V
- Output Current
- 800mA
- Quiescent Current
- 95uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.173 g
Overview
The LM5001 high-voltage switch-mode regulator features all of the functions necessary to implement efficient high-voltage Boost, Flyback, SEPIC and Forward converters, using few external components. This easy-to-use regulator integrates a 75-V NChannel MOSFET with a 1-A peak current limit. Current mode control provides inherently simple loop compensation and line-voltage feed-forward for superior rejection of input transients. The switching frequency is set with a single resistor and is programmable up to 1.5 MHz. The oscillator can also be synchronized to an external clock. Additional protection features include: current limit, thermal shutdown, undervoltage lockout and remote shutdown capability.
Applications
- DC-DC Power Supplies for Industrial, Communications, and Automotive Applications
- Boost, Flyback, SEPIC and Forward Converter Topologies
Key features
- AEC-Q100 Qualified (TJ = -40°C to 125°C)
- Integrated 75-V N-Channel MOSFET
- Ultra-Wide Input Voltage Range from 3.1 V to 75 V
- Integrated High Voltage Bias Regulator
- Adjustable Output Voltage
- 1.5% Output Voltage Accuracy
- Current Mode Control with Selectable Compensation
- Wide Bandwidth Error Amplifier
- Integrated Current Sensing and Limiting
- Integrated Slope Compensation
- 85% Maximum Duty Cycle Limit
- Single Resistor Oscillator Programming
- Oscillator Synchronization Capability
- Enable / Undervoltage Lockout (UVLO) Pin
- Thermal Shutdown
Alternatives
Similar parts — check the datasheet before substituting.
