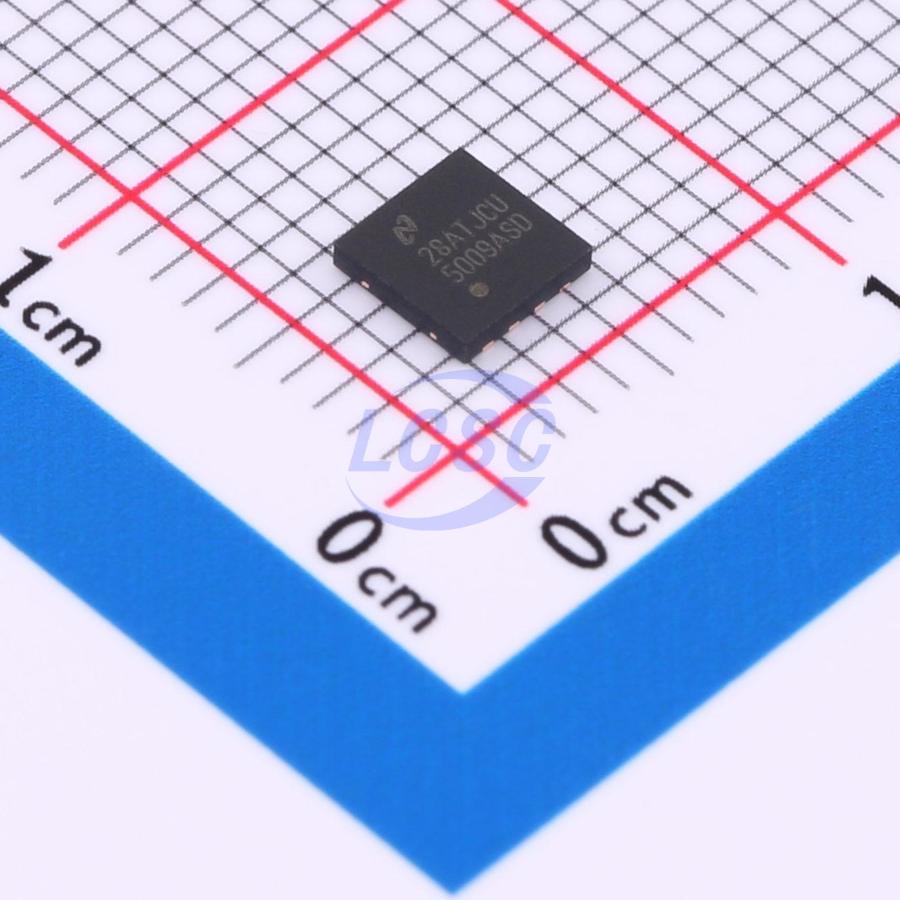

LM5009ASDX/NOPB

The LM5009A is a functional variant of the LM5009 COT buck switching regulator. The functional differences of the LM5009A are: The minimum input operating voltage is 6 V, the ON-time equation is slightly different, and the requirement for a minimum load current is removed. The LM5009A step-down switching regulator features all of the functions required to implement a low cost, efficient, buck bias regulator. This high voltage regulator contains an 100-V N-channel buck switch. The device is easy to implement and is provided in the 8-pin VSSOP and the thermally enhanced 8-pin WSON packages. The regulator is based on a control scheme using an ON time inversely proportional to the input voltage (V_IN). This feature allows the operating frequency to remain relatively constant. The control scheme requires no loop compensation. An intelligent current limit is implemented with forced OFF time, which is inversely proportional to the output voltage (V_OUT). This scheme ensures short-circuit control while providing minimum foldback. Other features include: thermal shutdown, undervoltage lockout (V_CC), gate drive undervoltage lockout, max duty cycle limiter, and a precharge switch.

Applications

• Non-Isolated Telecommunication Buck Regulator
• Secondary High-Voltage Post Regulator
• 42-V Automotive Systems

Key features

• Operating Input Voltage Range: 6 V to 95 V
• Integrated 100-V, N-Channel Buck Switch
• Internal Start-Up Regulator
• No Loop Compensation Required
• Ultra-Fast Transient Response
• ON Time Varies Inversely With Input Voltage
• Operating Frequency Remains Constant With Varying Line Voltage and Load Current
• Adjustable Output Voltage From 2.5 V
• Highly Efficient Operation
• Precision Internal Reference
• Low Bias Current
• Intelligent Current Limit
• Thermal Shutdown
• 8-Pin VSSOP and 8-Pin WSON (4 mm x 4 mm) Packages
